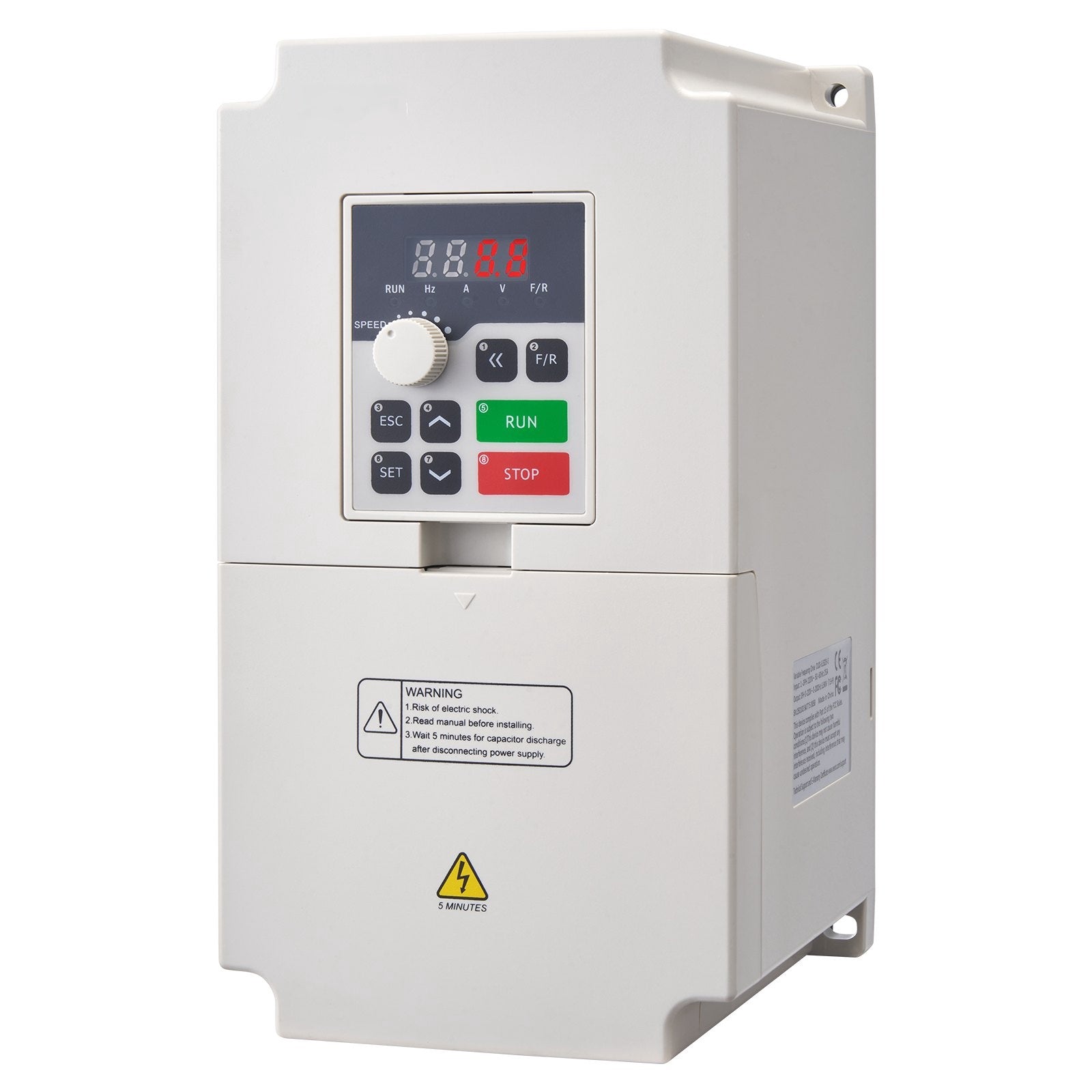

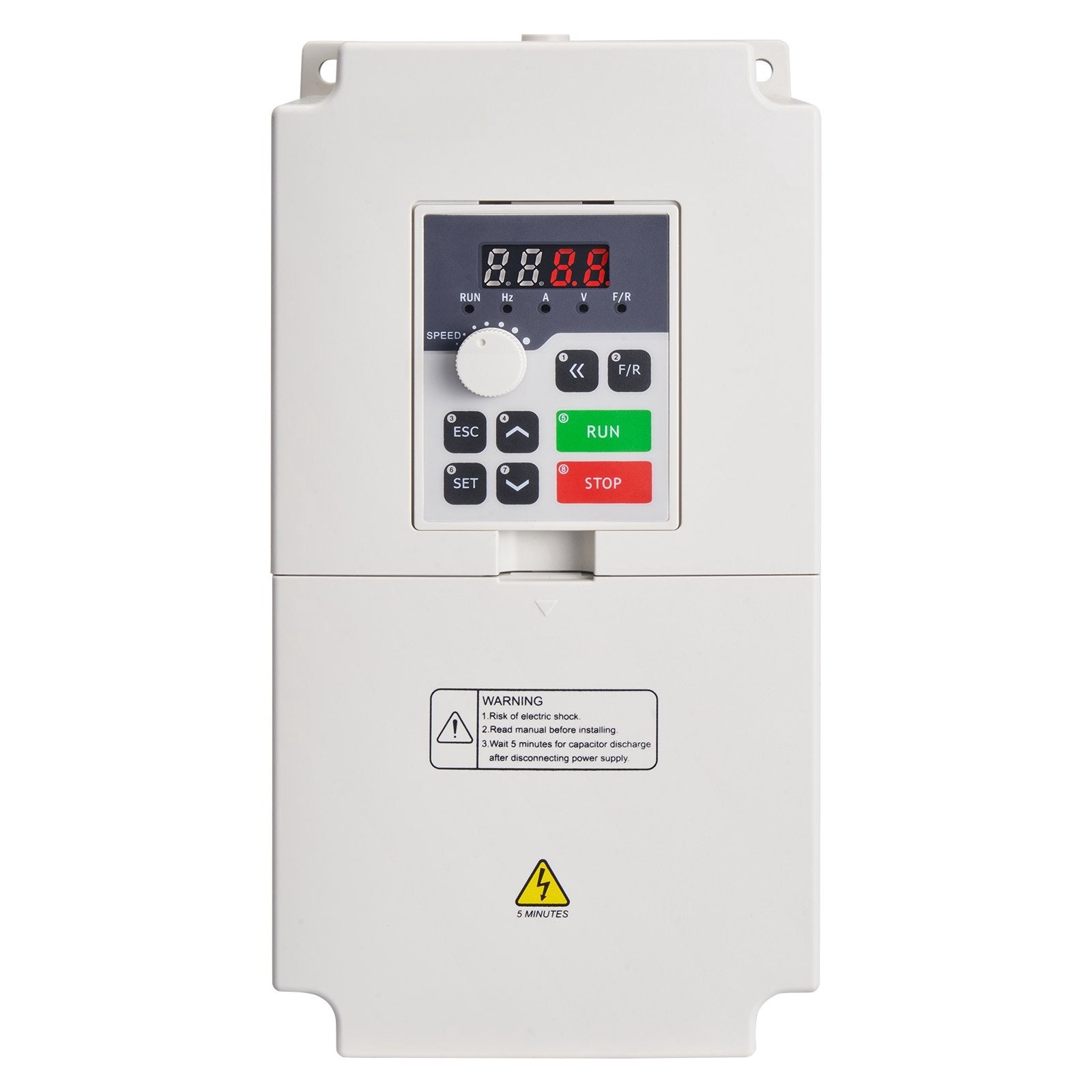

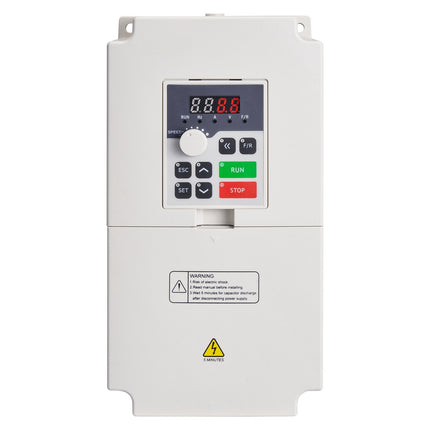

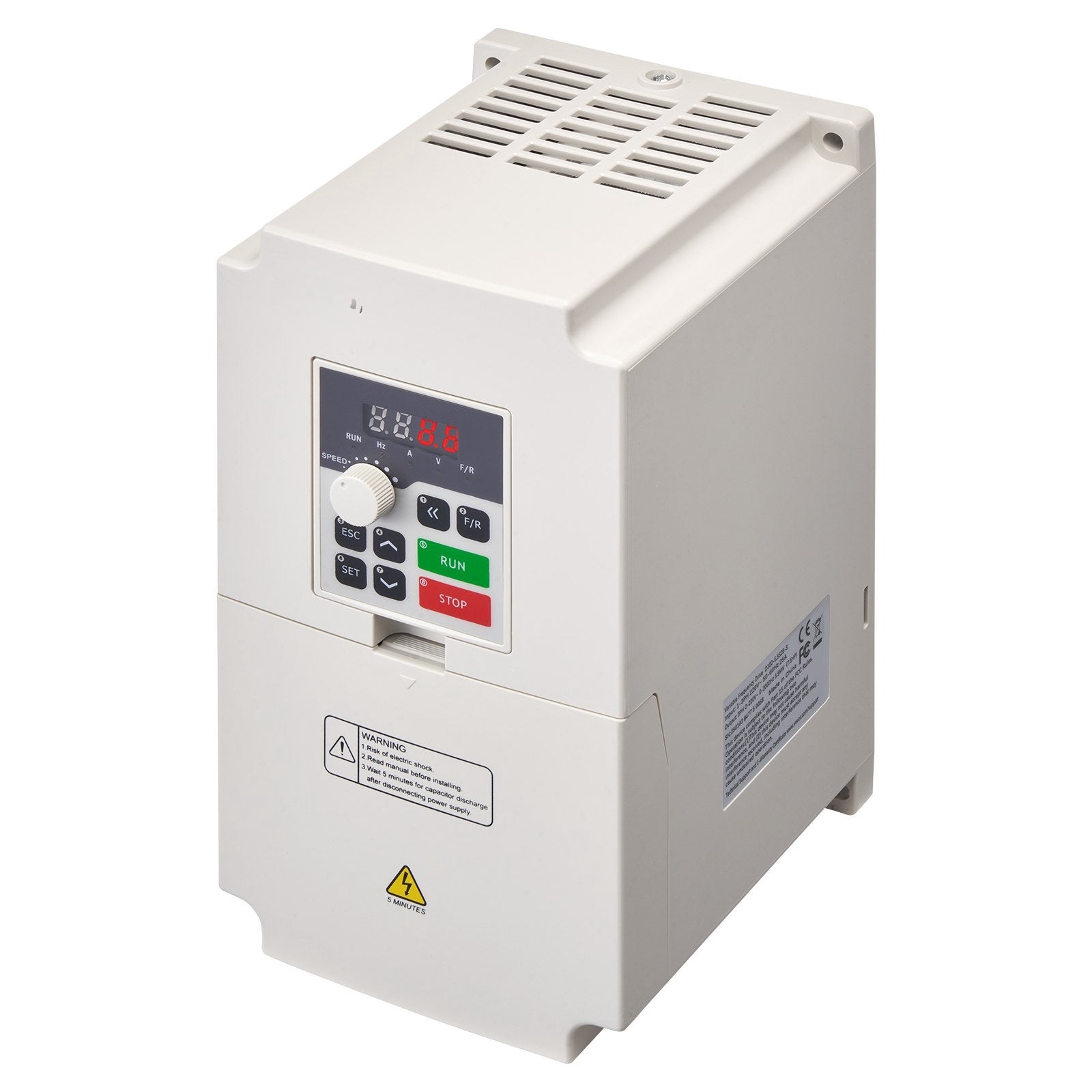

Variable Frequency Drive 4kW 220V, 1/3-Phase In, 3-Phase Out

Variable Frequency Drive 4kW 220V, 1/3-Phase In, 3-Phase Out

Formular de produs
Cod articol: 11368693203271

Variable frequency drive (VFD) delivers precise motor speed control with 220V input and 3-phase output for CNC spindles, pumps, fans,... Citește mai mult

Momentan indisponibil

1.593,00 lei  1.446,00 lei

    Plătește în siguranță cu

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livrare gratuită
    • Retur în 30 de zile
    • Plată în siguranță

    Specifications

    Power4 kW (5.5 HP)
    Input voltage220V AC
    Input phase1 or 3 phase
    Output phase3 phase
    Output voltage0–220V
    Input frequency50/60 Hz
    Output frequency0–1000 Hz
    Current0–17A (input/output)
    Vibrationbelow 0.5 G
    Operating temperature23–104°F (-5 to 40°C)
    Humidity0–90% RH (non-condensing)
    Size8.7 × 4.6 × 5.8 in (220 × 118 × 148 mm)
    Net weight5.73 lb (2.6 kg)

    Description

    Variable frequency drive (VFD) delivers precise motor speed control with 220V input and 3-phase output for CNC spindles, pumps, fans, and shop machinery. Designed for stable torque, fast starts, and smooth frequency adjustment, it supports V/F control, vector control, PID regulation, and multiple setting methods. A clear digital display and detachable keypad simplify setup, while optimized PWM control helps reduce noise and electromagnetic interference for cleaner operation.

    Built for demanding workshop and industrial use, this CNC inverter converter is suited to spindle motors and equipment such as milling, drilling, trimming, grinders, conveyors, compressors, ventilators, and pumps. The intuitive digital display keeps parameters easy to read at a glance, and the detachable keypad allows flexible mounting for remote control. Choose it when you need dependable speed regulation, strong low-speed torque, and protection features that help keep downtime low. Grab yours today and dial in smoother motor control.

    Specifications
    • Delivers 4 kW (5.5 HP) output with 0–1000 Hz frequency range for wide-speed applications
    • Supports 1 or 3 phase 220V input with 3-phase output for compatible motors and CNC systems
    • Enables V/F and vector control plus PID closed-loop options for steady torque under load
    • Reduces noise using optimized PWM control and heat-dissipating enclosure ventilation
    • Protects with overload, over/under-voltage, overheat, short-circuit, stall, fuse, and restart safeguards
