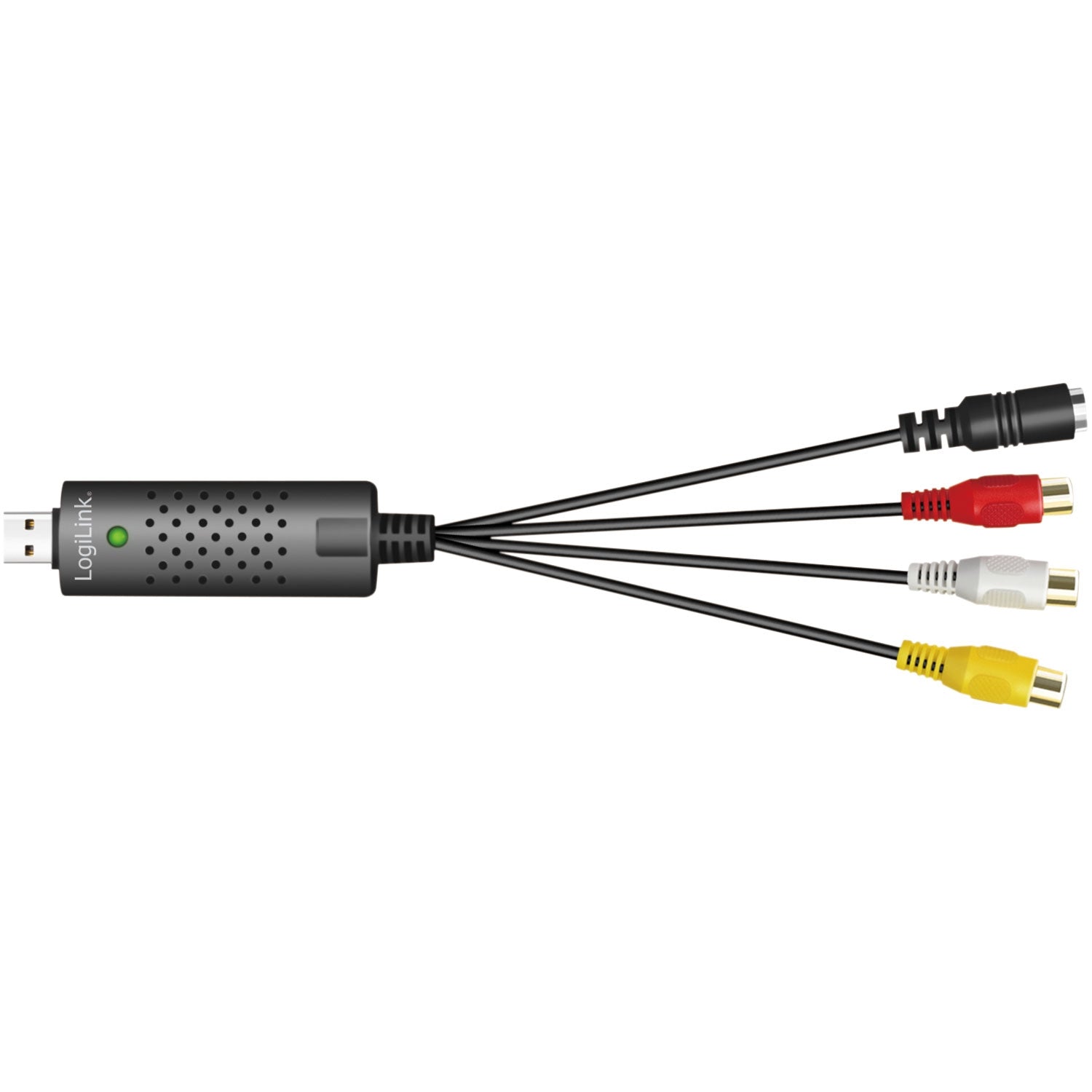

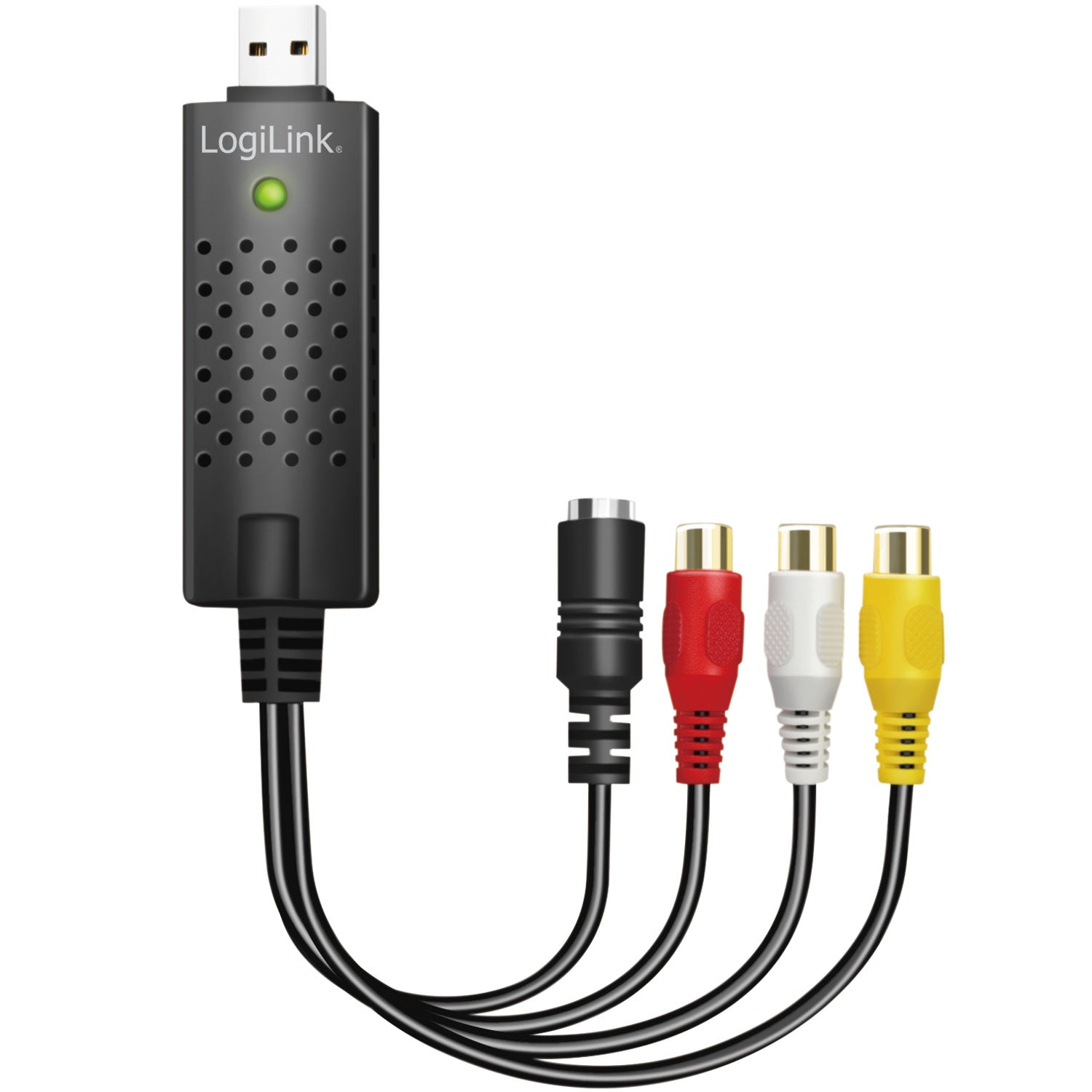

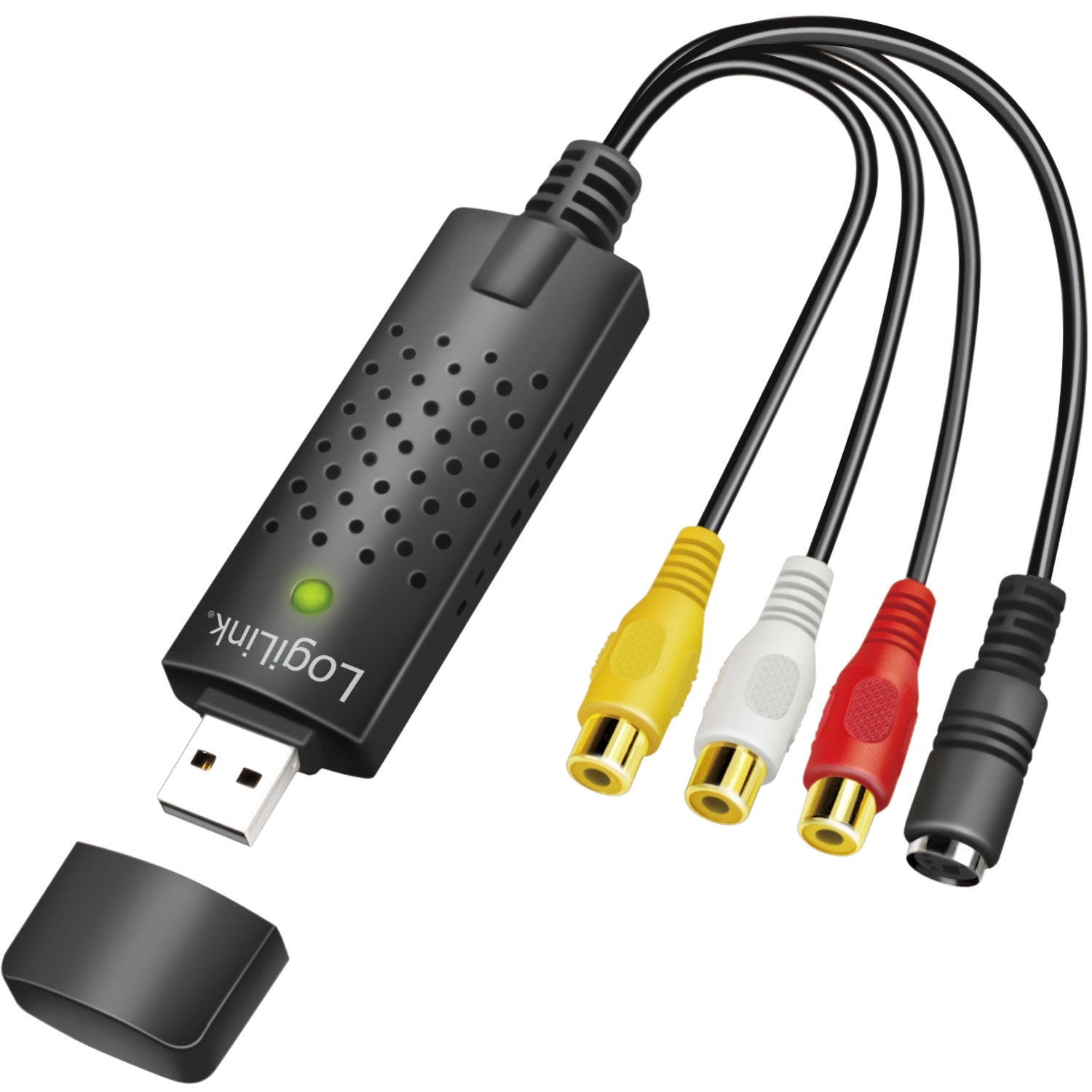

LogiLink USB 2.0 A/V Grabber

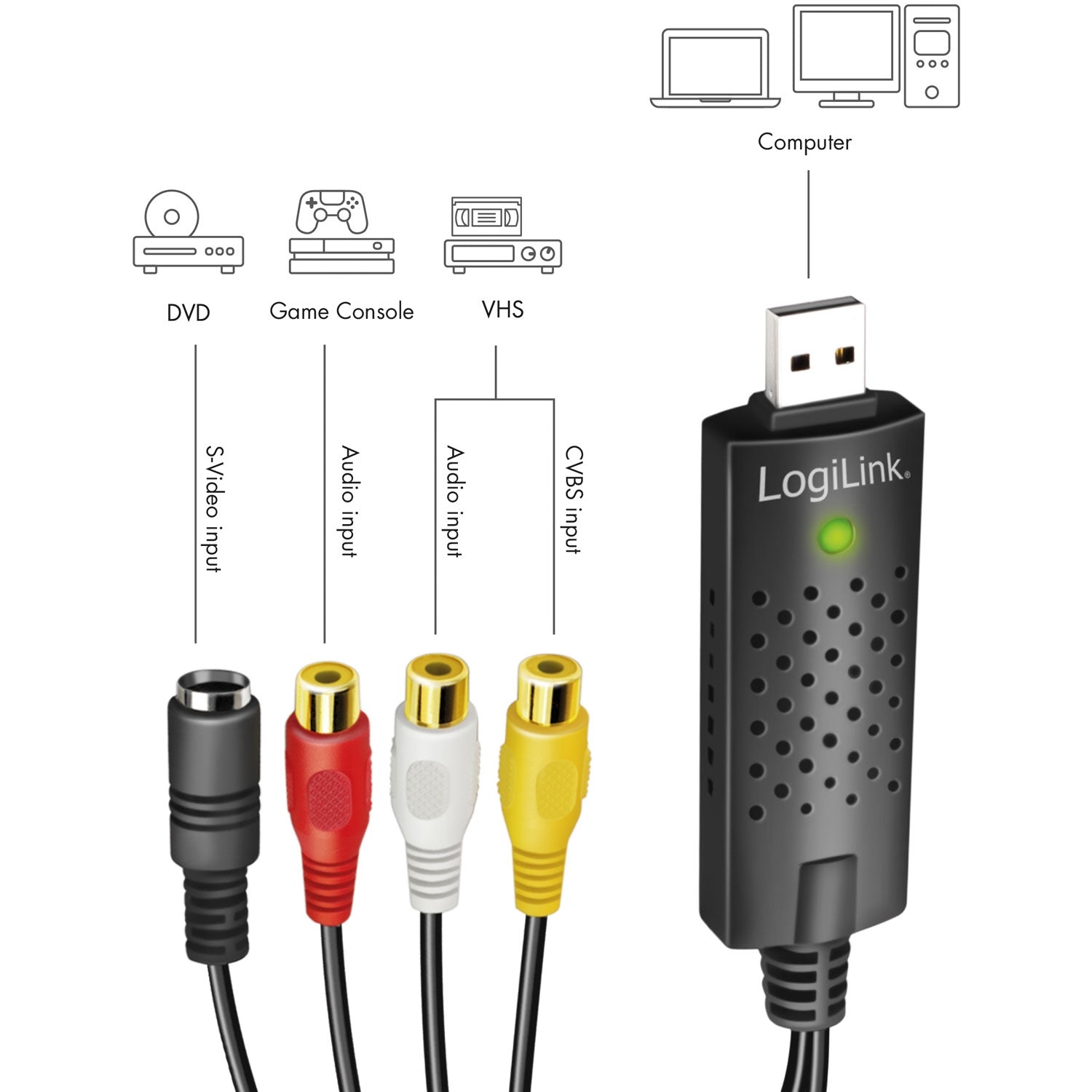

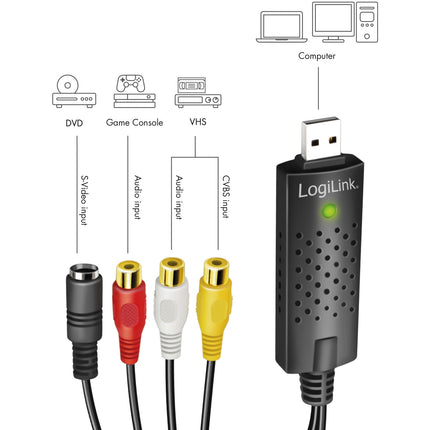

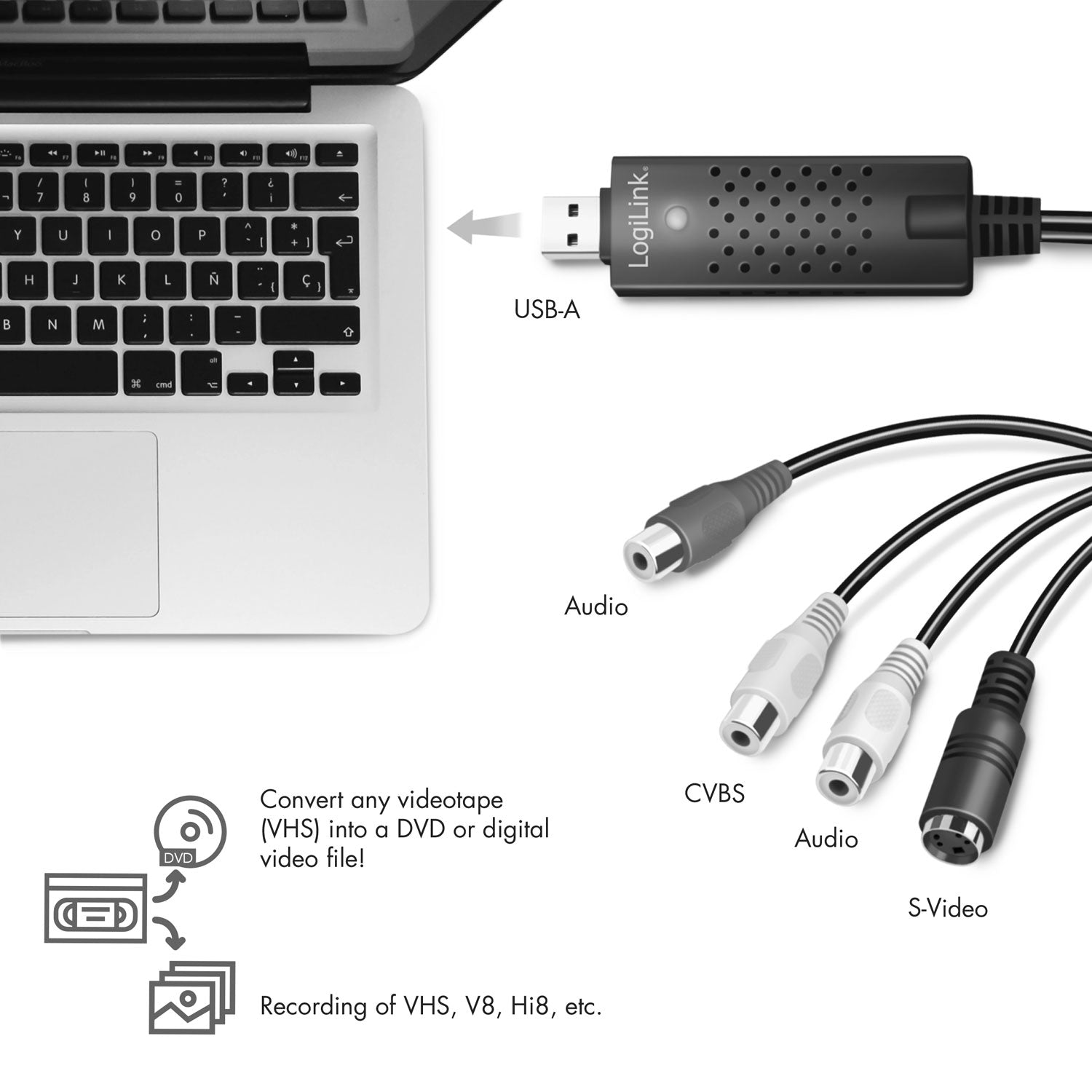

Digitize your old analog movies as quickly and easily as never before. Simply connect the USB 2.0 Audio and Video Grabber to the USB port on your computer and e.g. to the VHS tape recorder. This way you can transfer the data to the hard drive and if you want then easily burn them to DVD.

• Conforms to USB2.0/1.1 standard • Video input: 1 x RCA Composite, 1 x S-Video • Audio input: 2 x stereo audio (RCA) • Support for NTSC and PAL video formats up to 1080p@30 fps • Capture video source from VHS, V8, Hi8, etc. • Resolution: NTSC/PAL: MJPEG: 1920X1080@30 Hz; YUV422: 720X576@25 Hz

Specifications: Interface 1: USB-A male Interface 2: 3x RCA female, 1x Mini Din jack 5-pin female USB standard: USB 2.0 Recording format: MJPEG & YUV422 Maximum Resolution: MJPEG: 1920 x 1080@30 Hz YUV422: 720 x 576@25 Hz Video Format Support: NTSC & PAL Video input: 1x RCA composite & 1x S-Video Audio Input: 2x Stereo Audio (RCA L/R) Powered by: USB Compatible OS: Windows 7/8/10/11, Mac OS 10.7 or higher, Android 5.0 or higher Material for casing: ABS Color: Black Operating temperature: 0-45°C Operating humidity: 25-60% RH (no condensation) Dimensions: 8.9 x 2.6 x 1.4 cm Weight: 42 g Cable length: 17 cm

Product document CE marking Instructions for safe use
