Steel Electrical Enclosure Box, NEMA 4X, IP66, 60x40x25 cm

Steel Electrical Enclosure Box, NEMA 4X, IP66, 60x40x25 cm

Formular de produs
Cod articol: 11369107554631

NEMA 4X electrical enclosure protects your controls from water, dust, and impact in demanding indoor/outdoor installs. Built from 1.5 mm... Citește mai mult

Momentan indisponibil

1.735,00 lei  1.577,00 lei

    Plătește în siguranță cu

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livrare gratuită
    • Retur în 30 de zile
    • Plată în siguranță

    Specifications

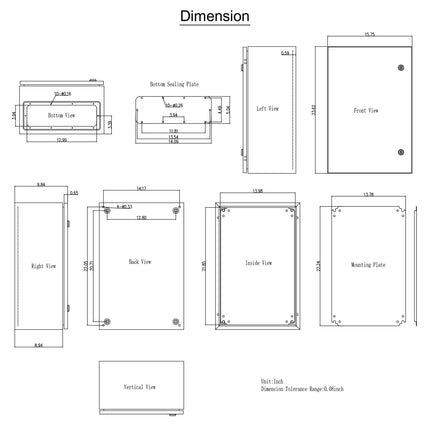

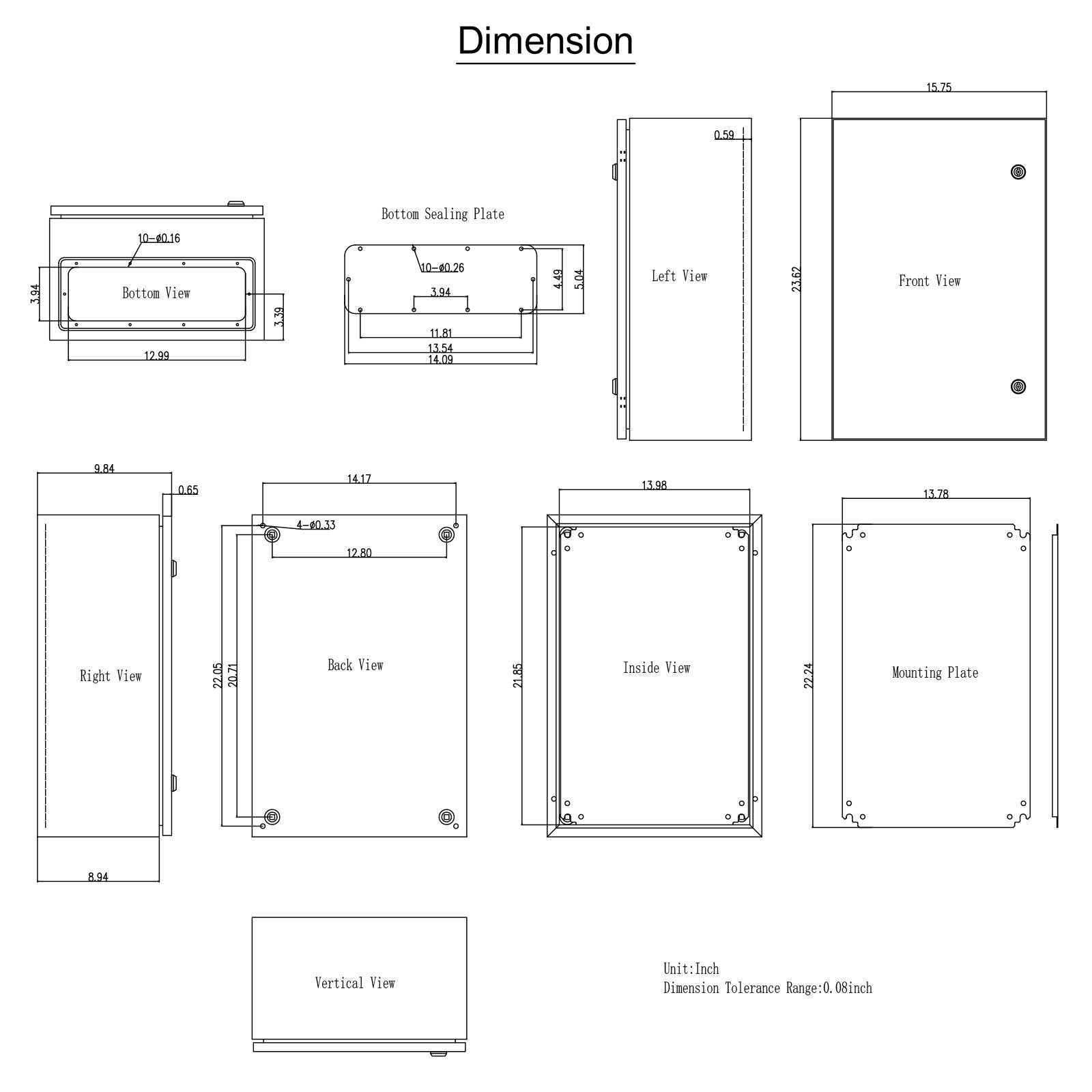

    Outer dimensions (H x W x D)24 x 16 x 10 in / 60 x 40 x 25 cm
    Inner dimensions (H x W x D)23.5 x 15.6 x 8.5 in / 59.7 x 39.7 x 21.65 cm
    Material0.059 in / 1.5 mm carbon steel
    Mounting plate0.079 in / 2 mm detachable galvanized backplate; 21.7 x 13.8 in / 55 x 35 cm
    ProtectionDesigned to meet IP66 and NEMA 1, 2, 4, 4X, 12
    DoorHinged, lockable
    Finish/colorEpoxy polyester powder coating, RAL7035 gray white
    CertificationsCE, RoHS
    Product weight37.48 lb / 17 kg

    Description

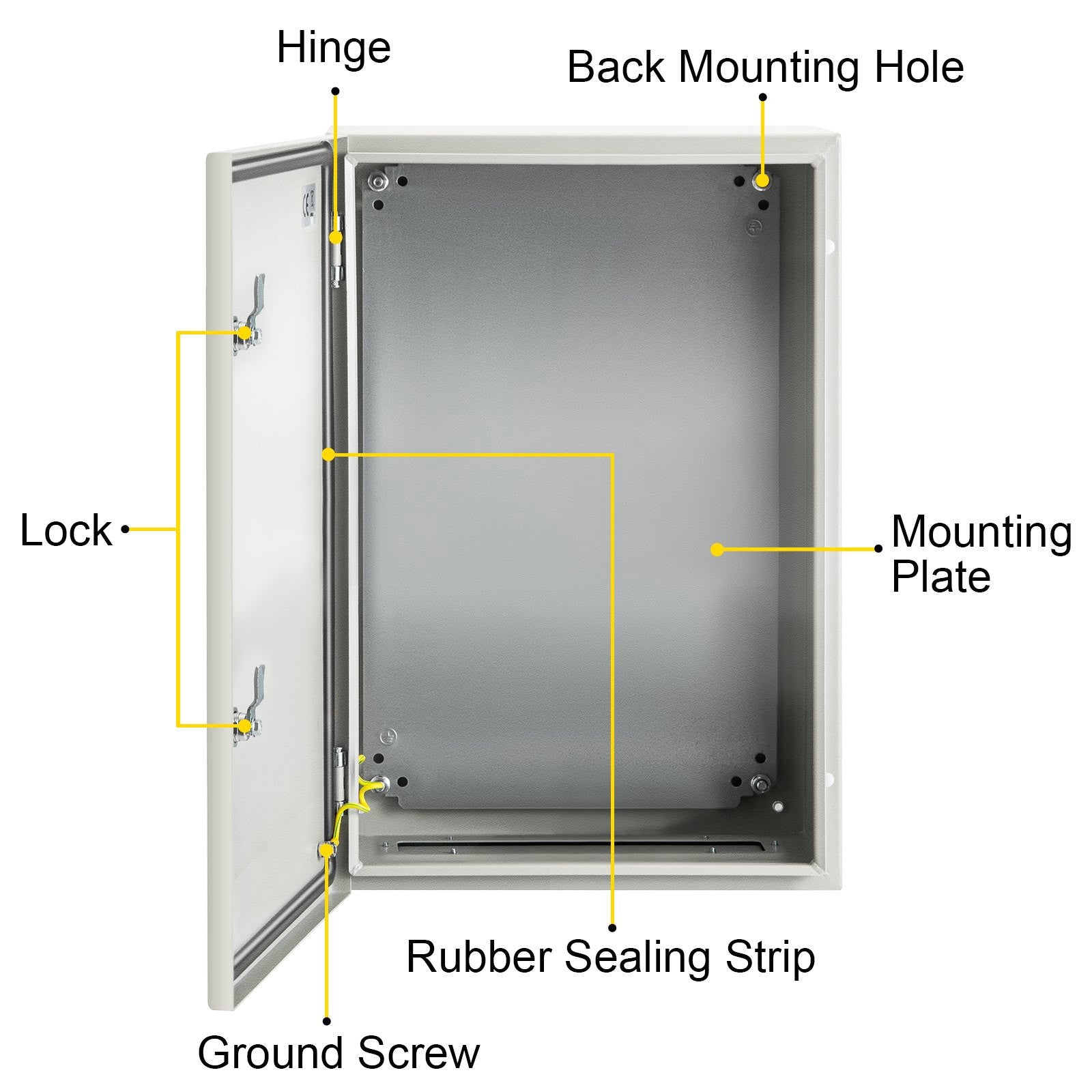

    NEMA 4X electrical enclosure protects your controls from water, dust, and impact in demanding indoor/outdoor installs. Built from 1.5 mm carbon steel with epoxy polyester powder coating, it’s designed to meet IP66 and NEMA 1/2/4/4X/12 specs for harsh environments. A hinged, lockable door and continuous sealing strip help keep equipment secure, while the detachable galvanized mounting plate speeds component layout and wiring.

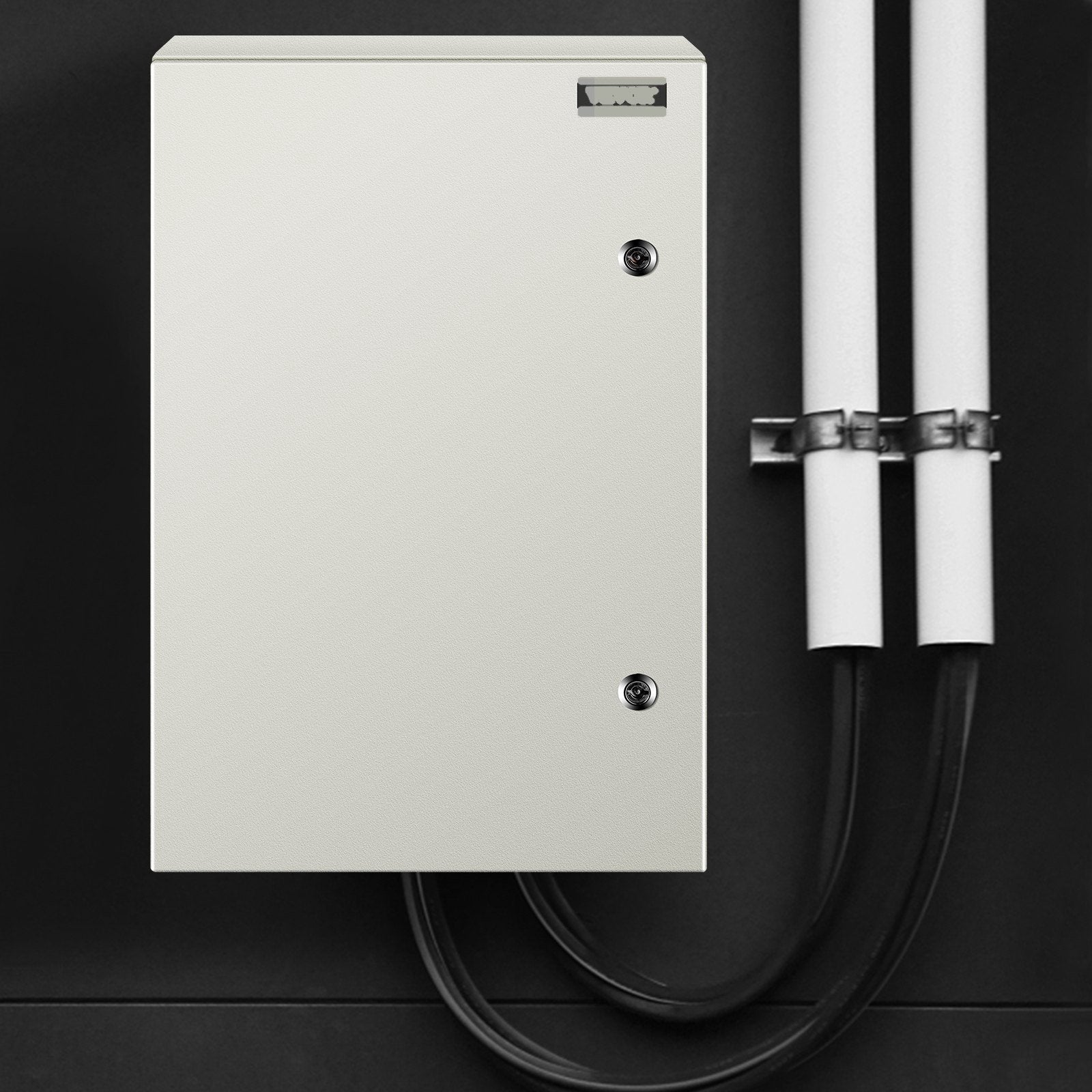

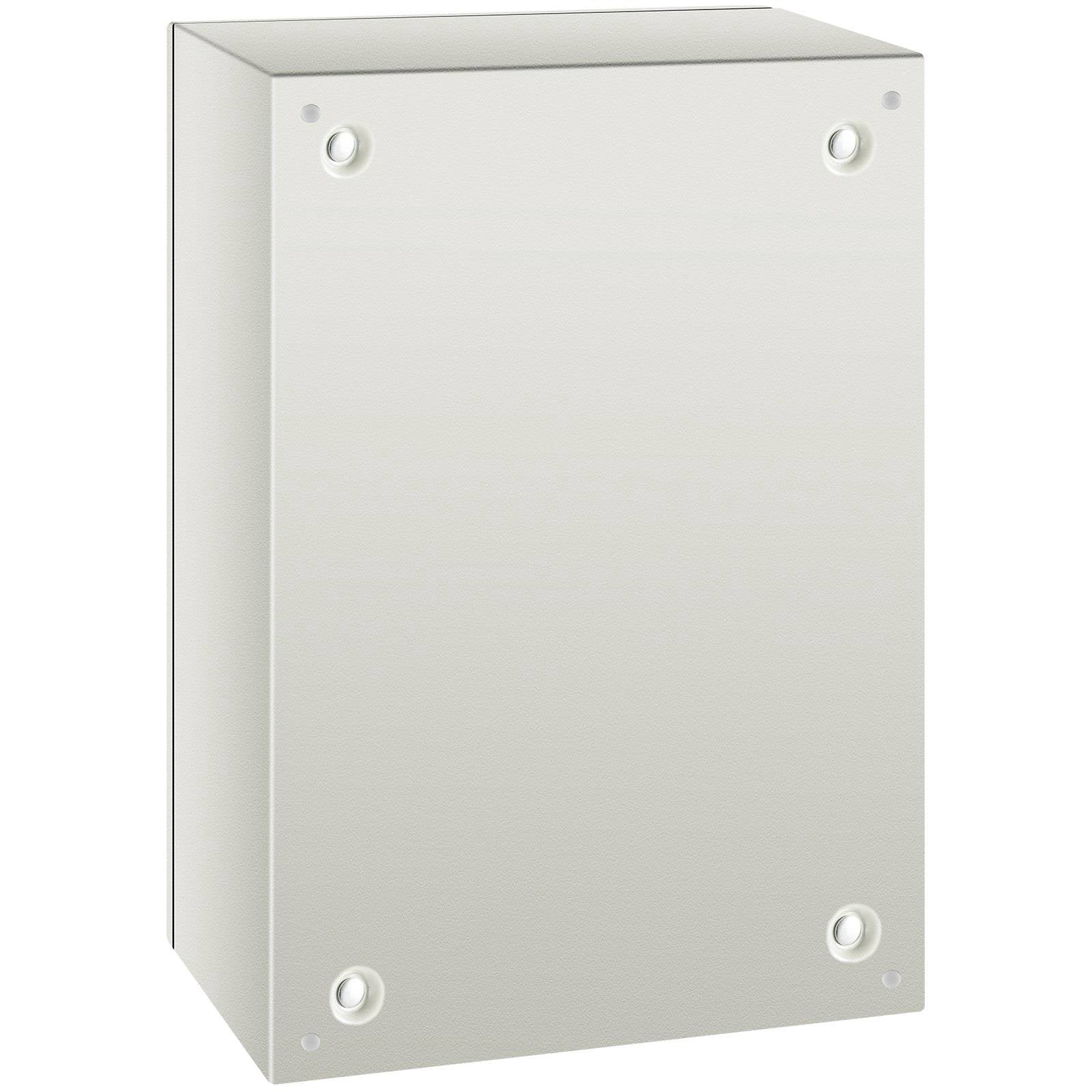

    Use this lockable steel junction box to organize breakers, contactors, terminals, and control gear without leaving electronics exposed to weather or dust. Four rear wall-mount holes support quick mounting on solid surfaces, and the hinged door opens for easy service access while helping maintain the seal when closed. Ideal for factories, construction sites, commercial buildings, courtyards, and residential utility areas. Choose the right fit, plan your cable routing, and grab yours today for a cleaner, safer electrical install.

    Specifications
    • Delivers IP66-rated sealing to help block water spray, dust, and debris in shops, yards, and industrial areas
    • Protects with 1.5 mm cold-rolled carbon steel and durable powder-coated finish (RAL7035 gray white)

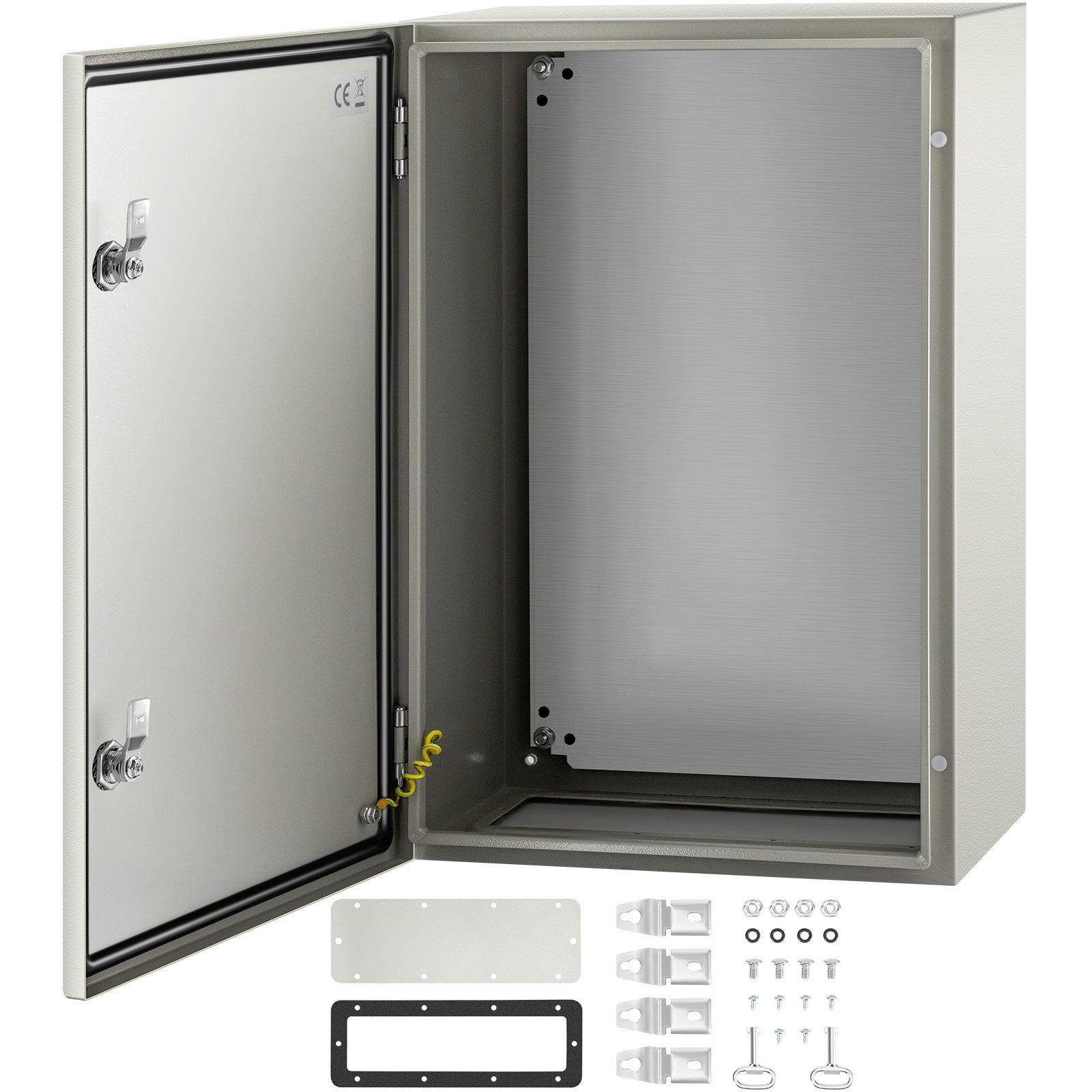

    • Includes a 2 mm detachable galvanized mounting backplate for fast, clean electrical component installation
    • Secures access with a reinforced hinge and lockable door to reduce tampering and accidental opening
    • Simplifies wiring with smooth cable entry-friendly bottom design and pre-installed grounding screws
