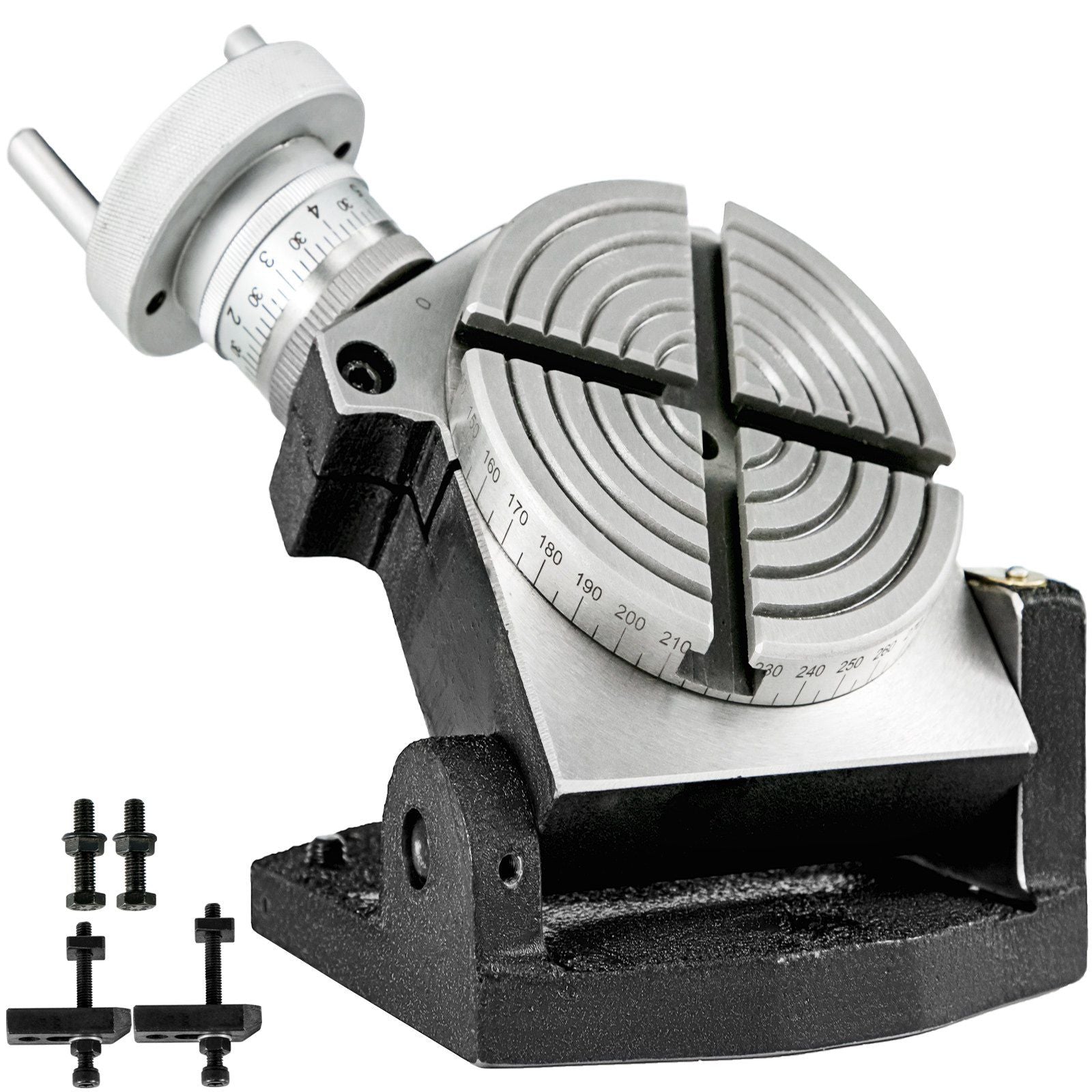

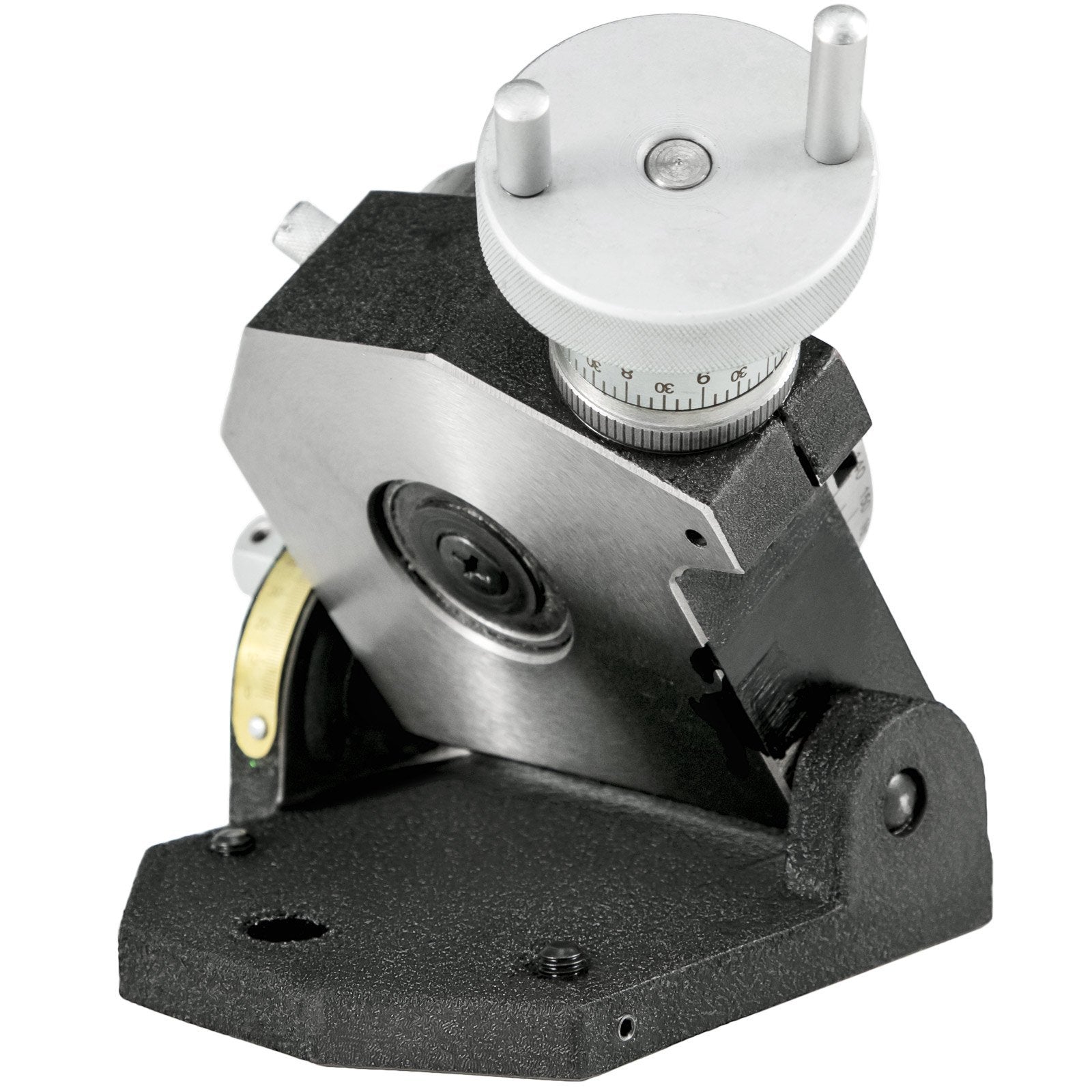

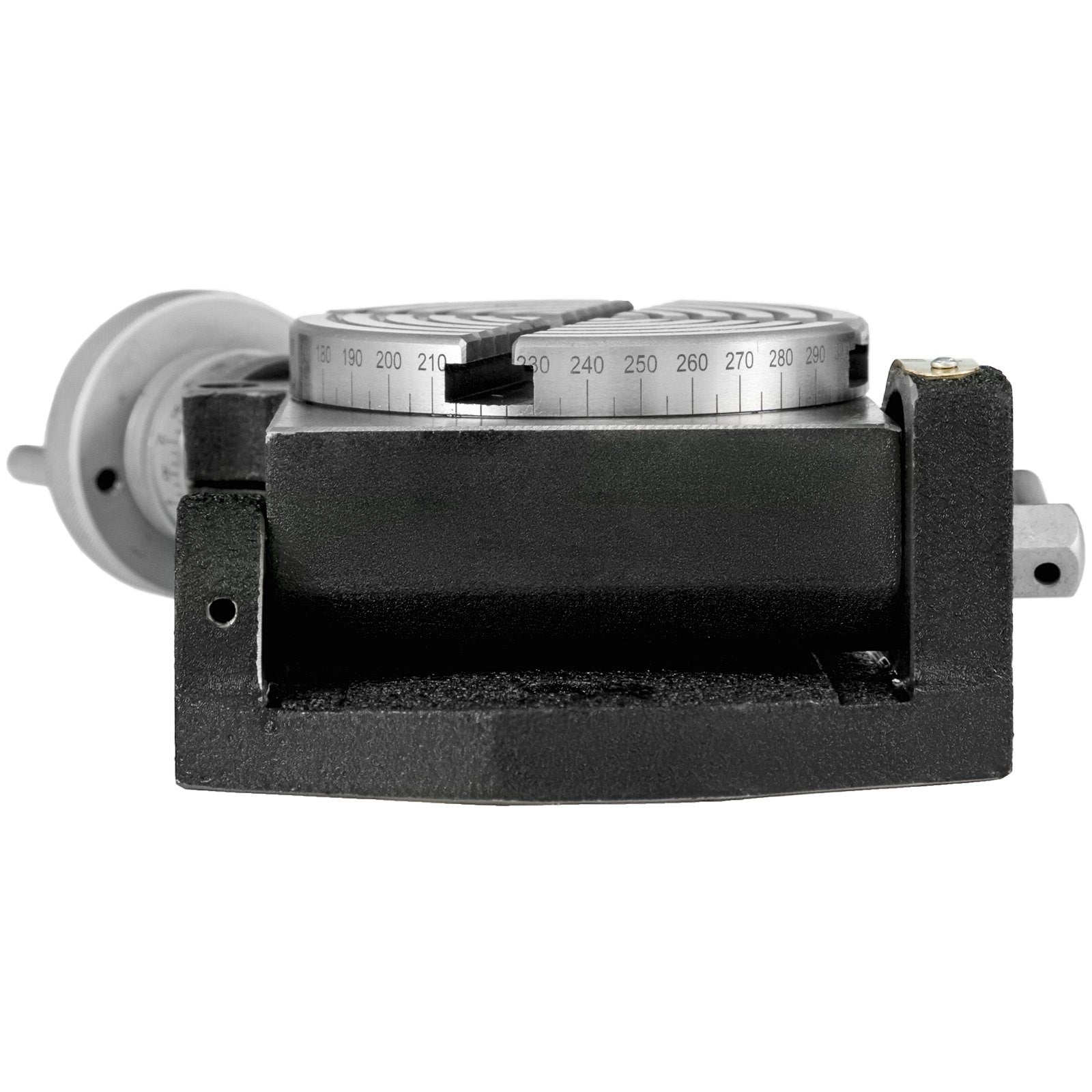

Rotary Table 4-Inch, Horizontal/Vertical, MT2, 4-Slot

Rotary Table 4-Inch, Horizontal/Vertical, MT2, 4-Slot

Formular de produs
Cod articol: 11368490762567

4 inch rotary table for milling machine delivers accurate 360° indexing to speed up circular milling, drilling patterns, and precision... Citește mai mult

Momentan indisponibil

917,00 lei  830,00 lei

    Plătește în siguranță cu

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livrare gratuită
    • Retur în 30 de zile
    • Plată în siguranță

    Specifications

    Improves control with 136 reduction ratio for smoother, more manageable handwheel movement
    Table diameter4 in / 100 mm
    Slots4

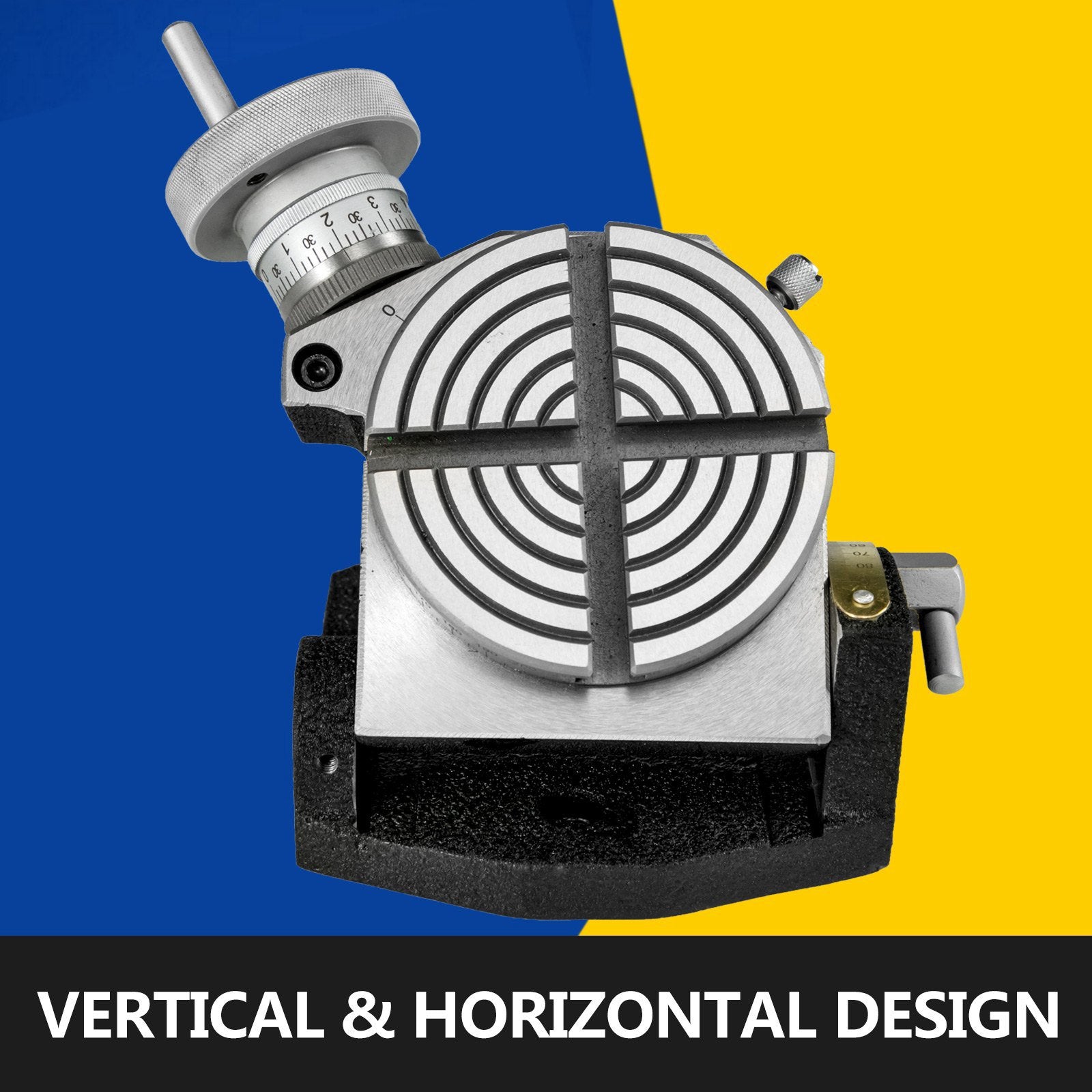

    OrientationHorizontal & Vertical
    Reduction ratio1:36
    Horizontal height2.76 in / 70 mm
    MaterialHT200 casting
    Center bore6.7 mm
    Net weight15 kg
    Scale graduationminimum 10 seconds

    Description

    4 inch rotary table for milling machine delivers accurate 360° indexing to speed up circular milling, drilling patterns, and precision setup work. This 100 mm rotary table switches between horizontal and vertical positions, giving you flexible workholding for small shops, toolrooms, and mini mills. The clear dial, handwheel, and fine graduations support controlled positioning when you need repeatable angles and smooth rotation.

    Set up cleaner arcs, bolt circles, and evenly spaced holes without improvising angle changes. The marked dial and easy-to-read scale help you move confidently from rough positioning to fine adjustments, reducing rework on detail jobs. Whether you’re pairing it with a milling vise, running an indexing operation, or doing spot facing and boring, this compact rotary table brings repeatable accuracy to your bench or mill table. Grab yours today and keep your next precision job moving.

    Specifications
    • Fits horizontal or vertical setups to handle milling, drilling, circle cutting, and indexing work
    • Delivers 360° rotation with fine 10-second scale graduations for precise positioning

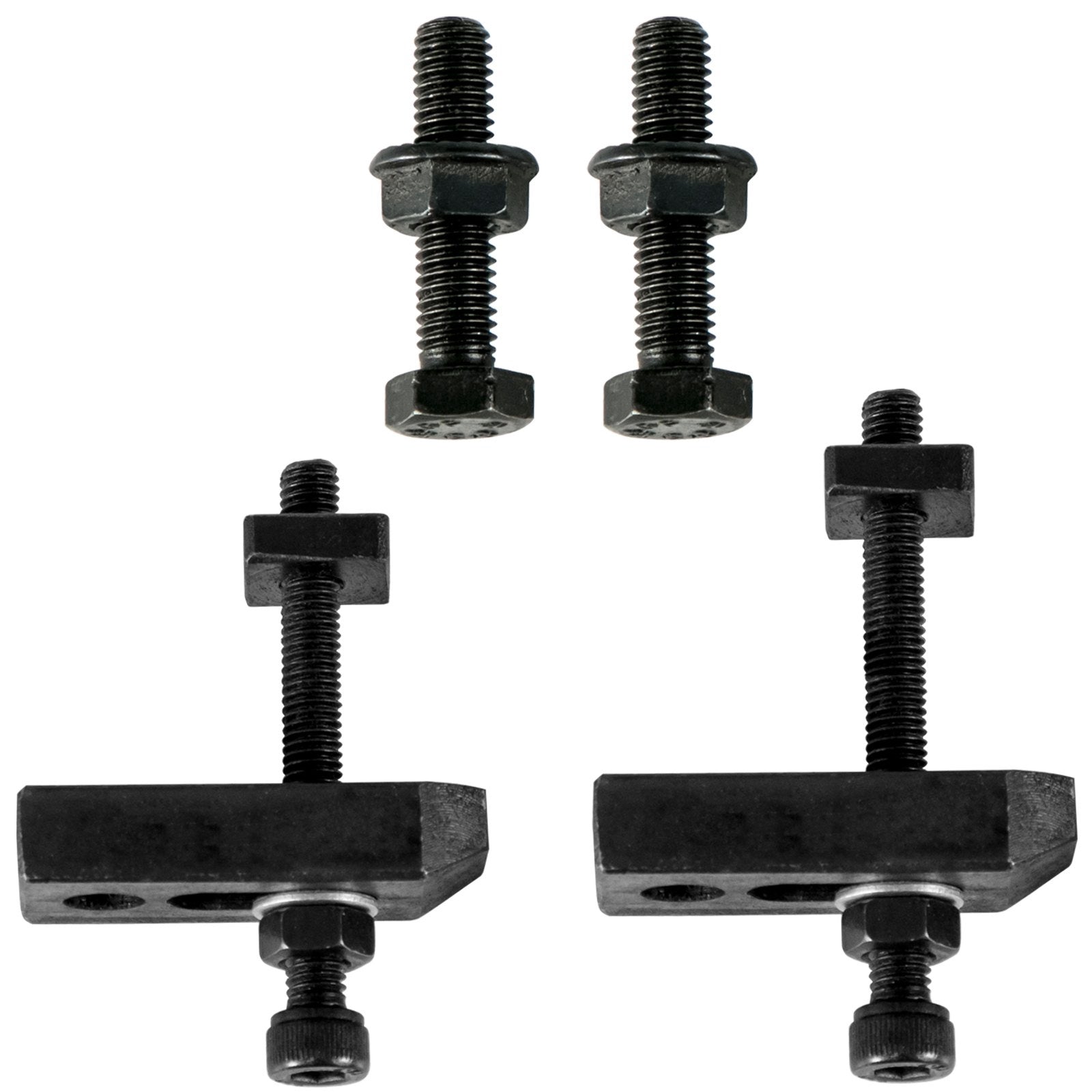

    • Includes wrench and screw set to help mount and start using the table quickly
    • Supports durability with HT200 cast construction for stable machining under load and vibration
