NEMA 4X Steel Electrical Enclosure 50x40x20cm IP66

NEMA 4X Steel Electrical Enclosure 50x40x20cm IP66

Formular de produs
Cod articol: 11369107161415

NEMA 4X steel electrical enclosure protects controls and wiring from water, dust, and impact for dependable indoor/outdoor installations. Built from... Citește mai mult

Momentan indisponibil

1.300,00 lei  1.180,00 lei

    Plătește în siguranță cu

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livrare gratuită
    • Retur în 30 de zile
    • Plată în siguranță

    Specifications

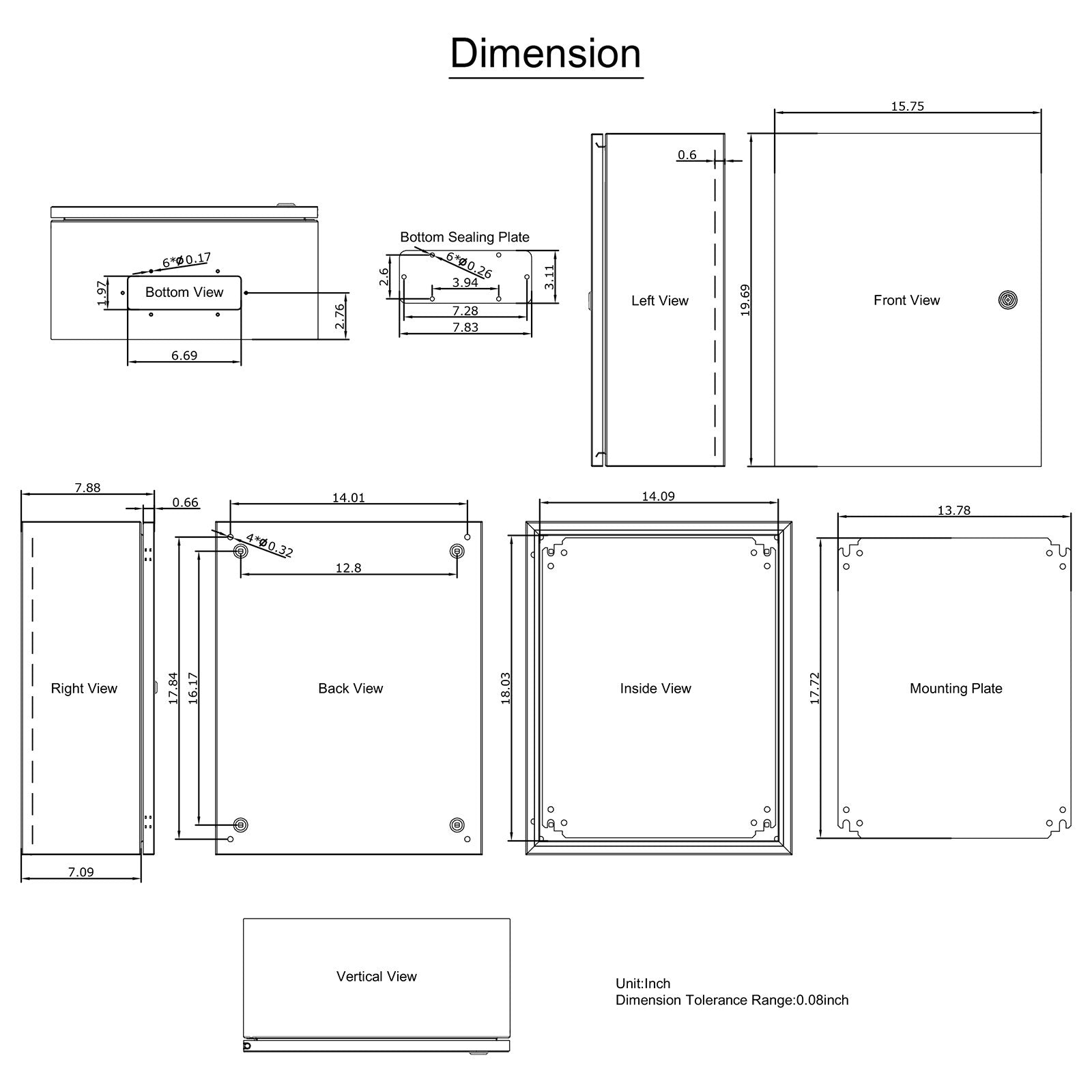

    Outer dimensions (H×W×D)20" × 16" × 8" (50 × 40 × 20 cm)
    Inner dimensions (H×W×D)19.6" × 15.6" × 6.6" (49.7 × 39.7 × 16.65 cm)
    Material0.059" (1.5 mm) carbon steel, cold-rolled
    Mounting plate0.079" (2 mm) detachable galvanized backplate; 17.7" × 13.8" (45 × 35 cm)
    Protection ratingsIP66; designed to meet NEMA 1, 2, 4, 4X, 12
    Finishepoxy polyester powder coating
    Colorgray white (RAL7035)
    Doorhinged, lockable
    CertificationsCE, RoHS
    Product weight29.32 lb (13.3 kg)

    Description

    NEMA 4X steel electrical enclosure protects controls and wiring from water, dust, and impact for dependable indoor/outdoor installations. Built from 1.5 mm cold-rolled carbon steel with a durable epoxy polyester powder coat, it’s designed to meet IP66 and multiple NEMA ratings for harsh environments. A hinged, lockable door speeds access while helping prevent tampering, and the detachable galvanized backplate simplifies component mounting for cleaner, faster builds.

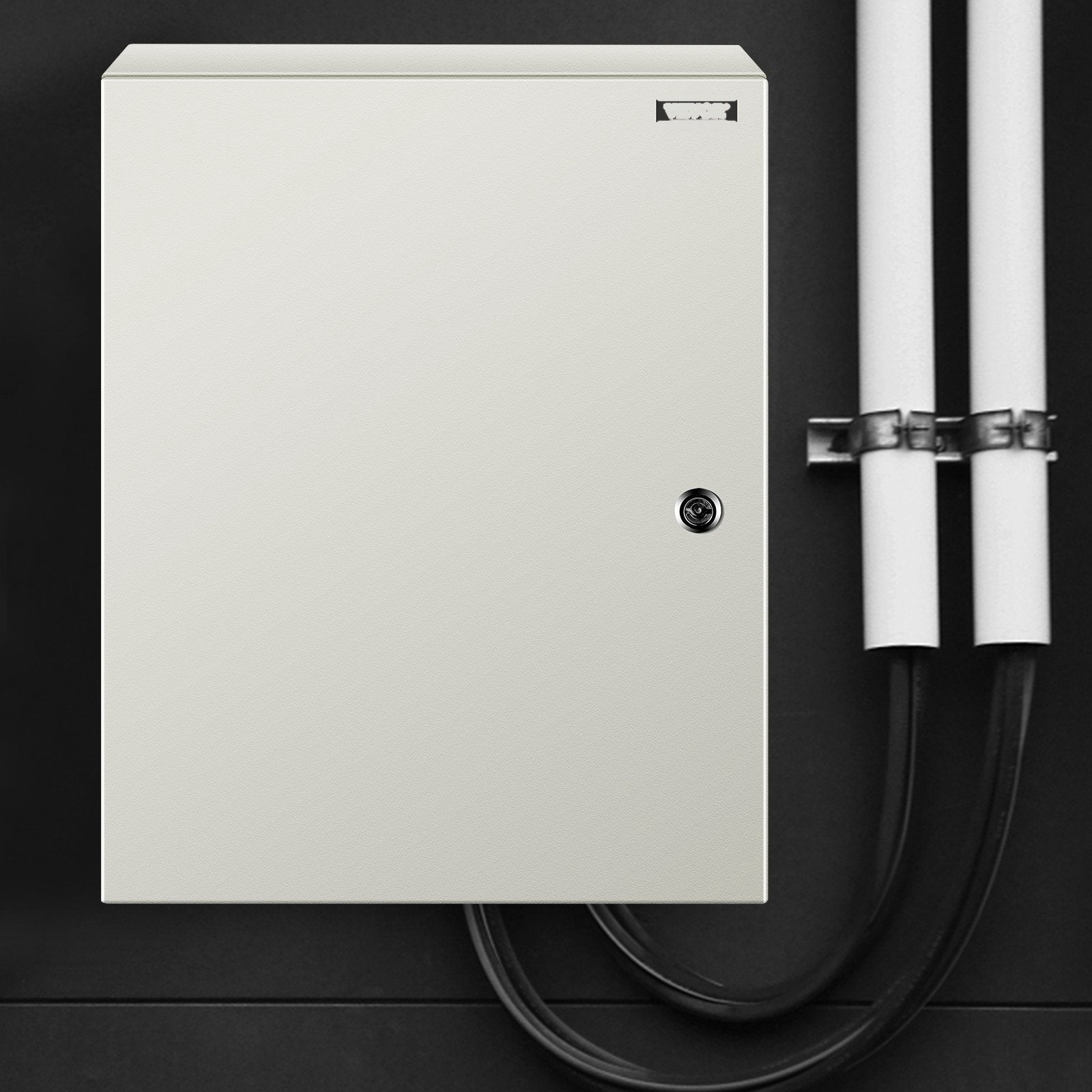

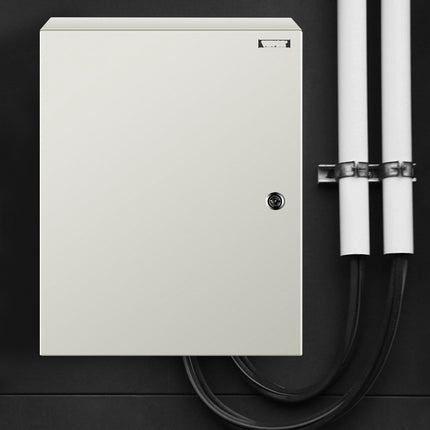

    Use this lockable electrical junction box to organize breakers, relays, power supplies, networking gear, and automation controls in factories, construction sites, courtyards, and commercial spaces. The foam sealing strip supports consistent closure, while the hinged design makes servicing faster without fighting a loose cover. If you need a clean, professional enclosure that helps protect sensitive components from the elements and everyday abuse, grab yours today and finish your panel build with confidence.

    Specifications
    • Delivers IP66 sealing to help block dust and water intrusion in outdoor or washdown-prone areas
    • Protects equipment with 1.5 mm carbon steel construction and powder-coated corrosion resistance

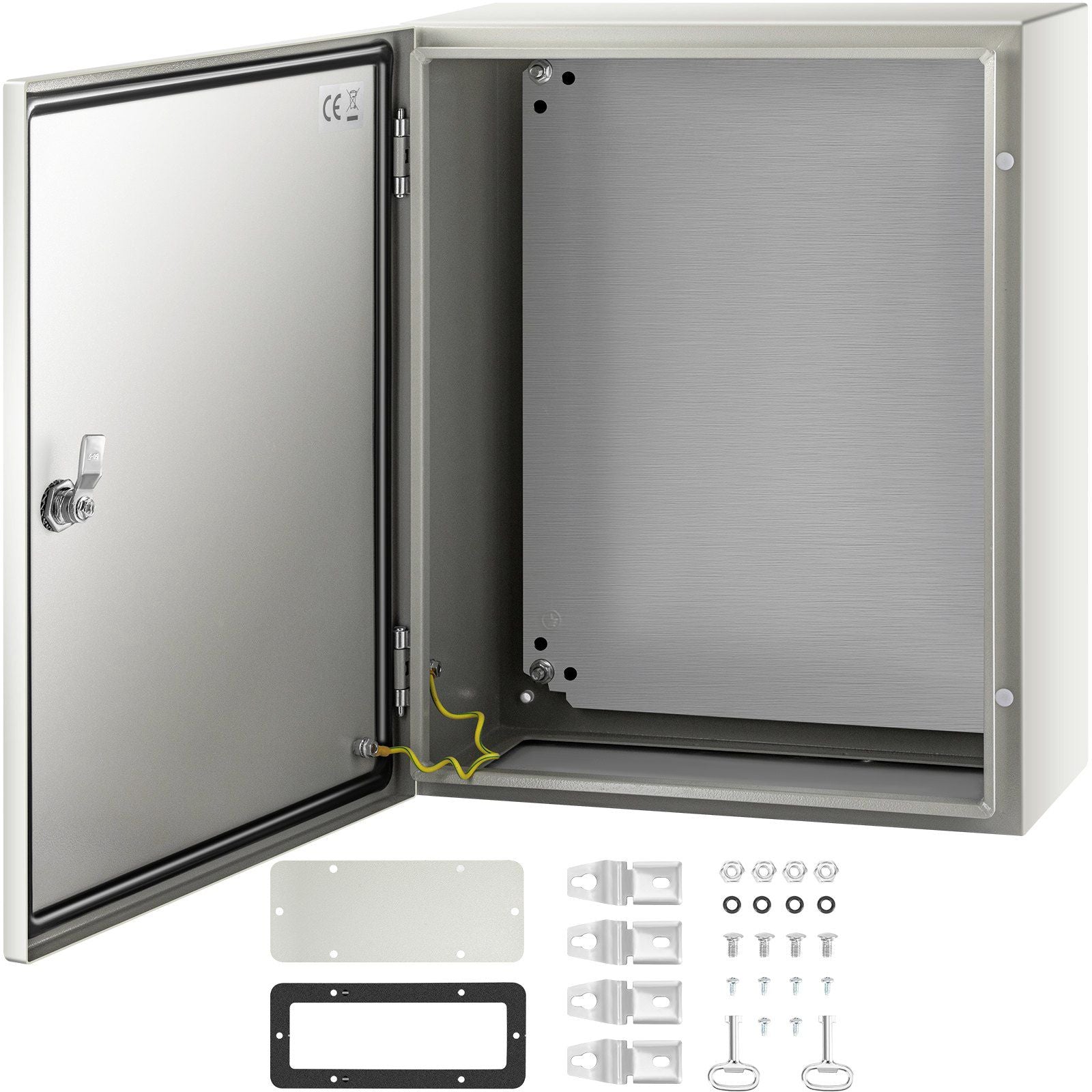

    • Includes a detachable 2 mm galvanized mounting plate for easier component layout and install

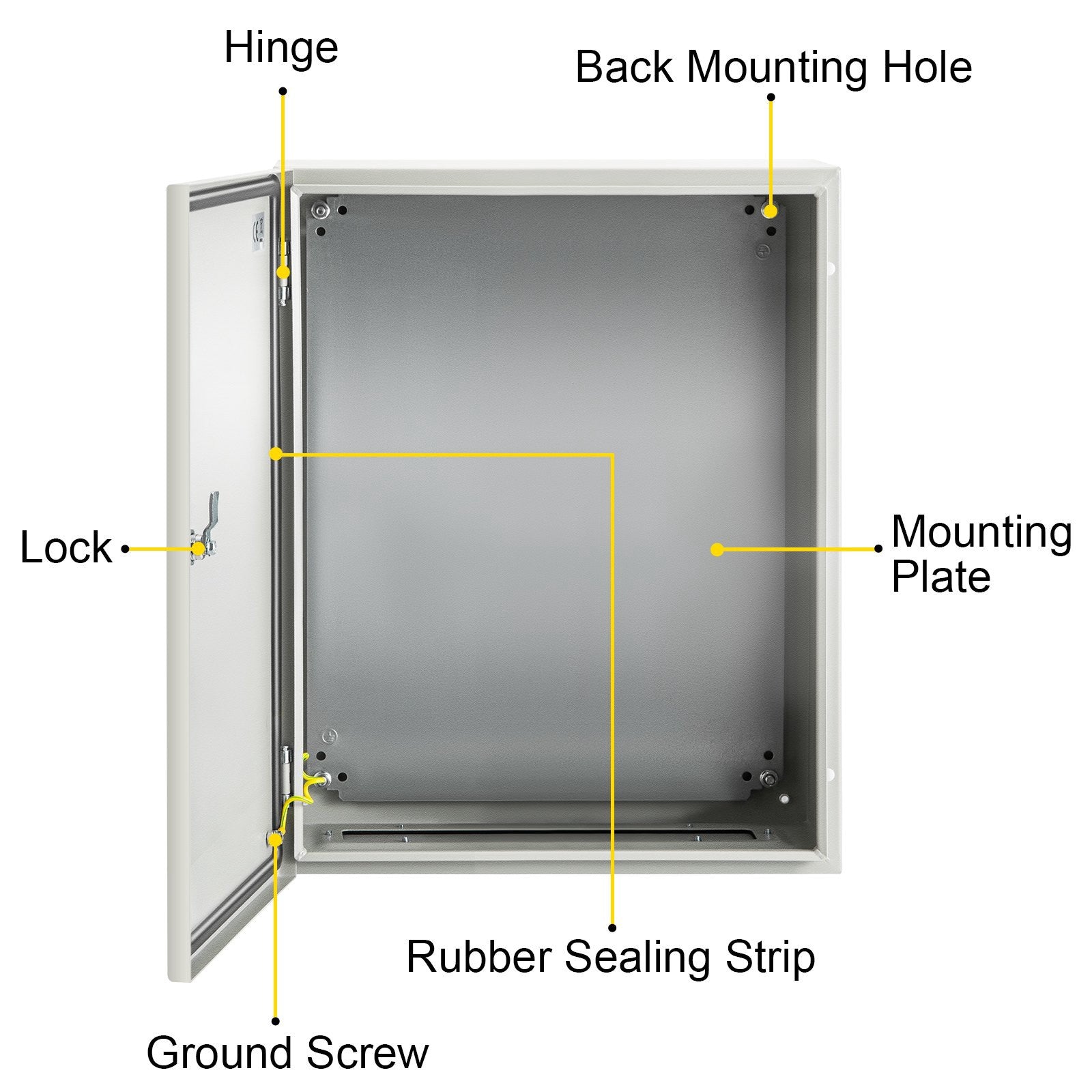

    • Secures access with a reinforced hinge and lockable door for added safety and control

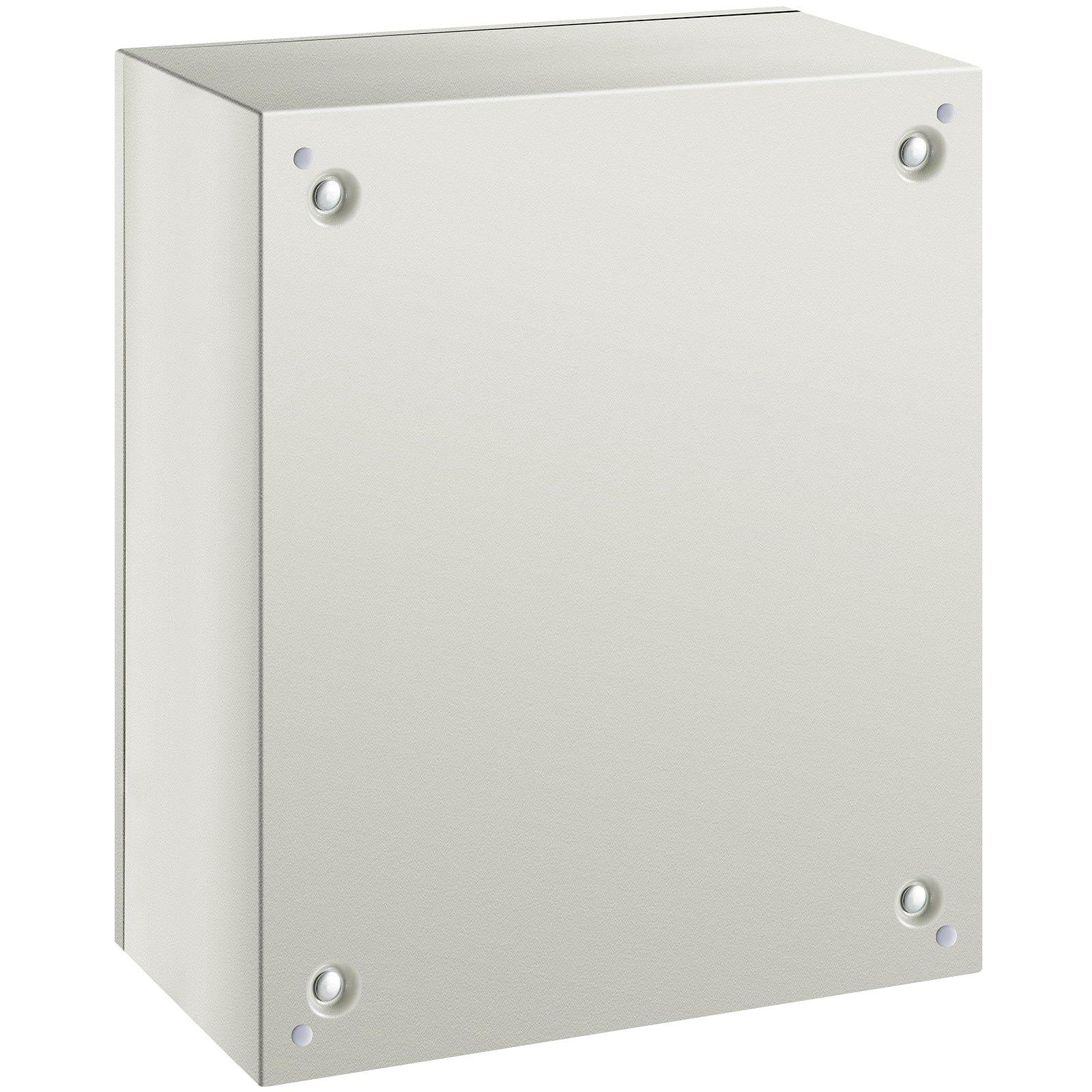

    • Speeds setup with rear wall-mount holes, smooth cable entry cutouts, and pre-installed grounding screws
