NEMA 4X Steel Electrical Enclosure 40x40x20 cm, IP66
NEMA 4X Steel Electrical Enclosure 40x40x20 cm, IP66
Outdoor electrical junction box protection starts with this NEMA 4X steel enclosure, designed to keep controls and wiring shielded from... Citește mai mult
1.231,00 lei 1.116,00 lei
Plătește în siguranță cu
- Livrare gratuită
- Retur în 30 de zile
- Plată în siguranță
Specifications

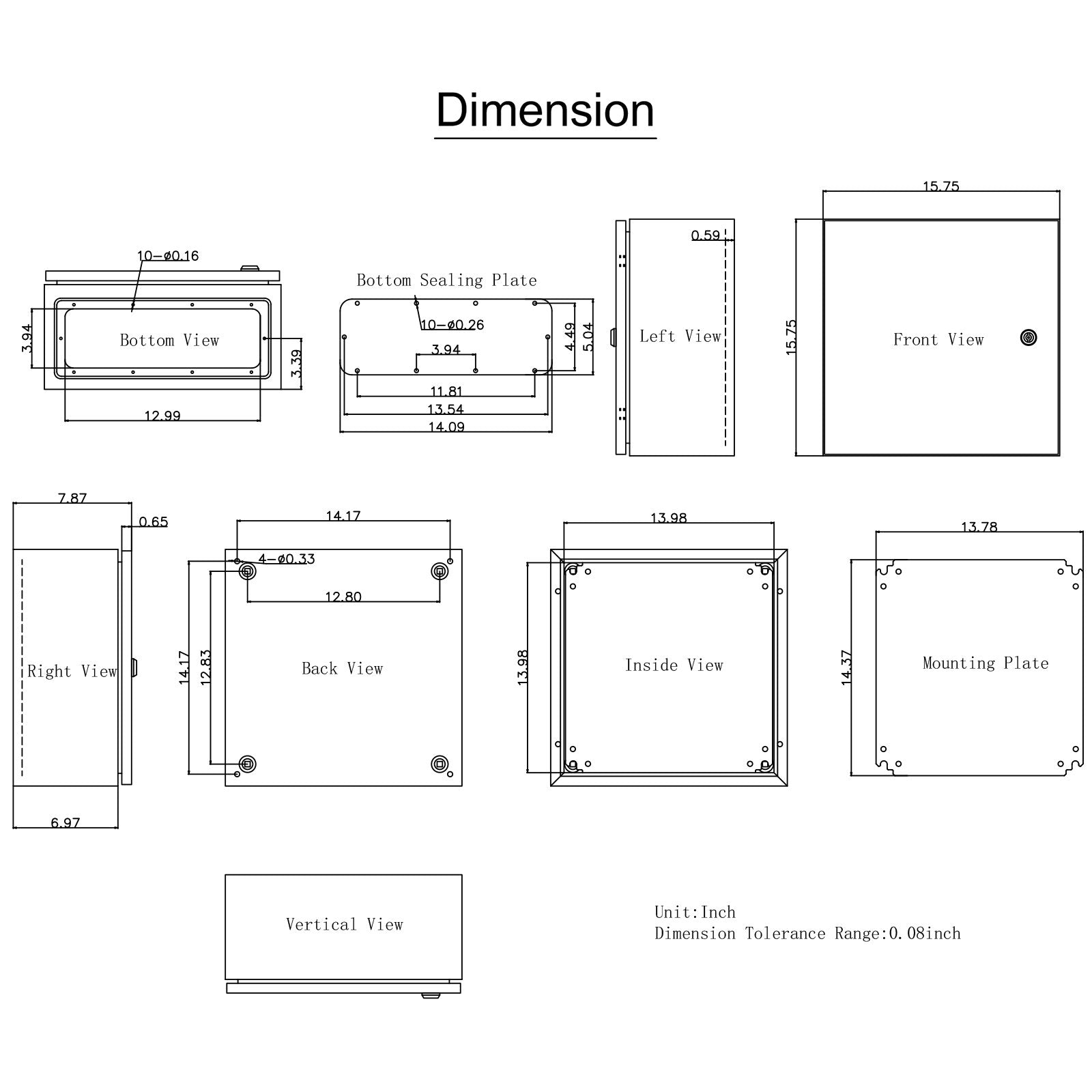

| Outer dimensions (H x W x D) | 16" x 16" x 8" (40 x 40 x 20 cm) |
|---|---|
| Inner dimensions (H x W x D) | 15.6" x 15.6" x 6.6" (39.7 x 39.7 x 16.65 cm) |
| Enclosure material | 1.5 mm (0.059") cold-rolled carbon steel |
| Mounting plate | 2.0 mm (0.079") detachable galvanized backplate |
| Backplate size | 13.8" x 13.8" (35 x 35 cm) |
| Protection ratings | Designed to meet IP66 and NEMA 1, 2, 4, 4X, 12 |
| Finish | Epoxy polyester powder coating |
| Color | Gray White (RAL7035) |
| Door type | Hinged; Feature: Lockable |
| Certifications | CE, ROHS |
| Weight | 24.69 lb (11.2 kg) |
