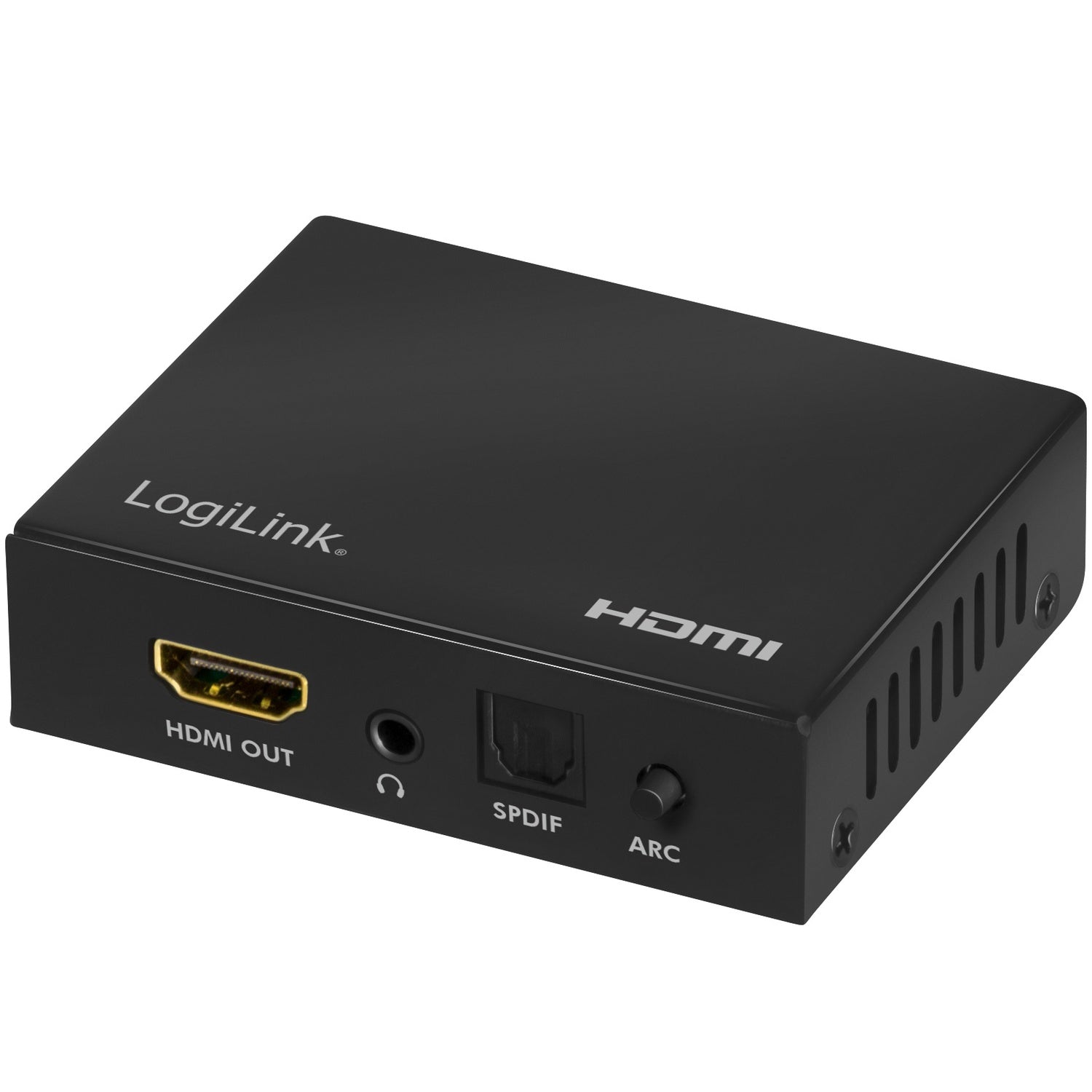

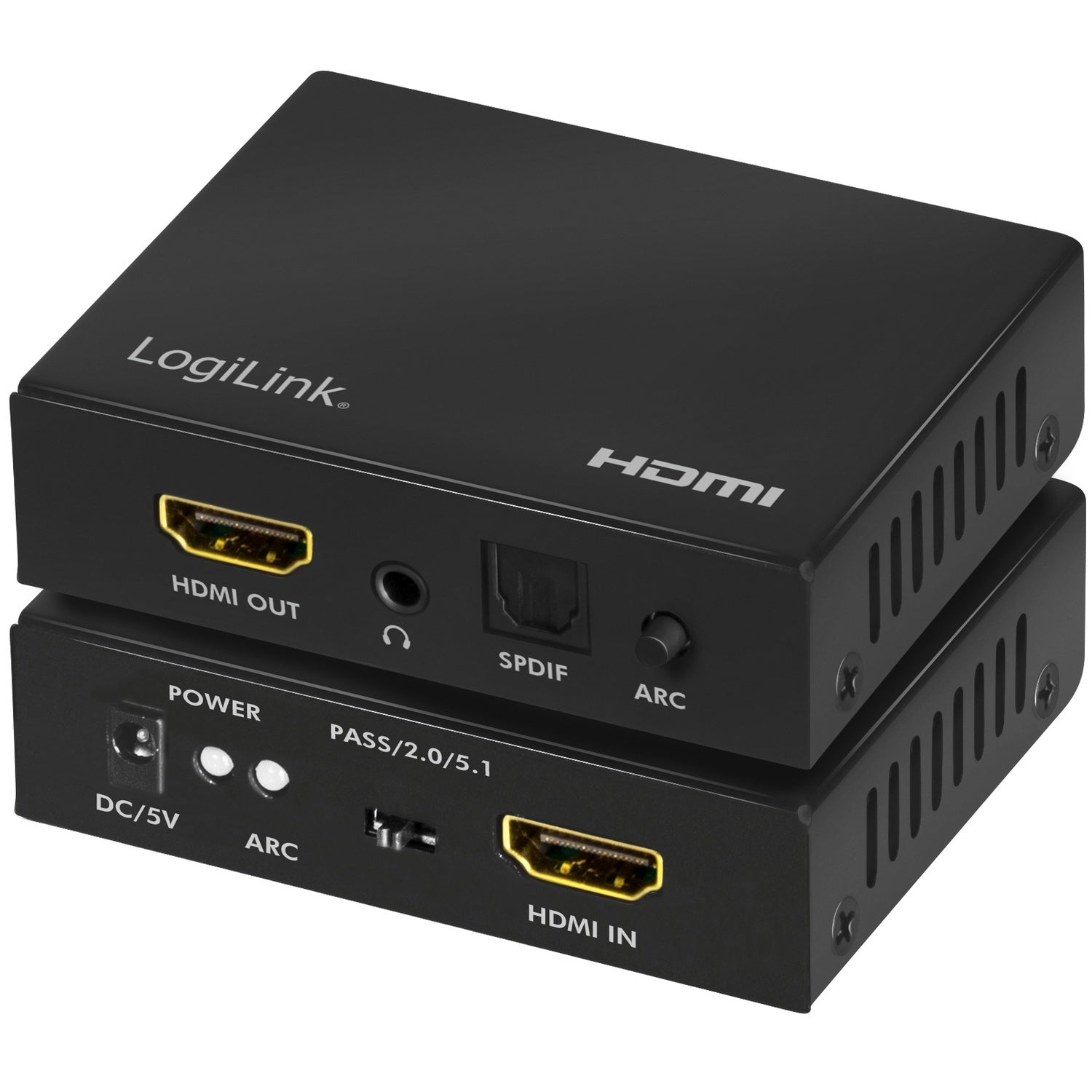

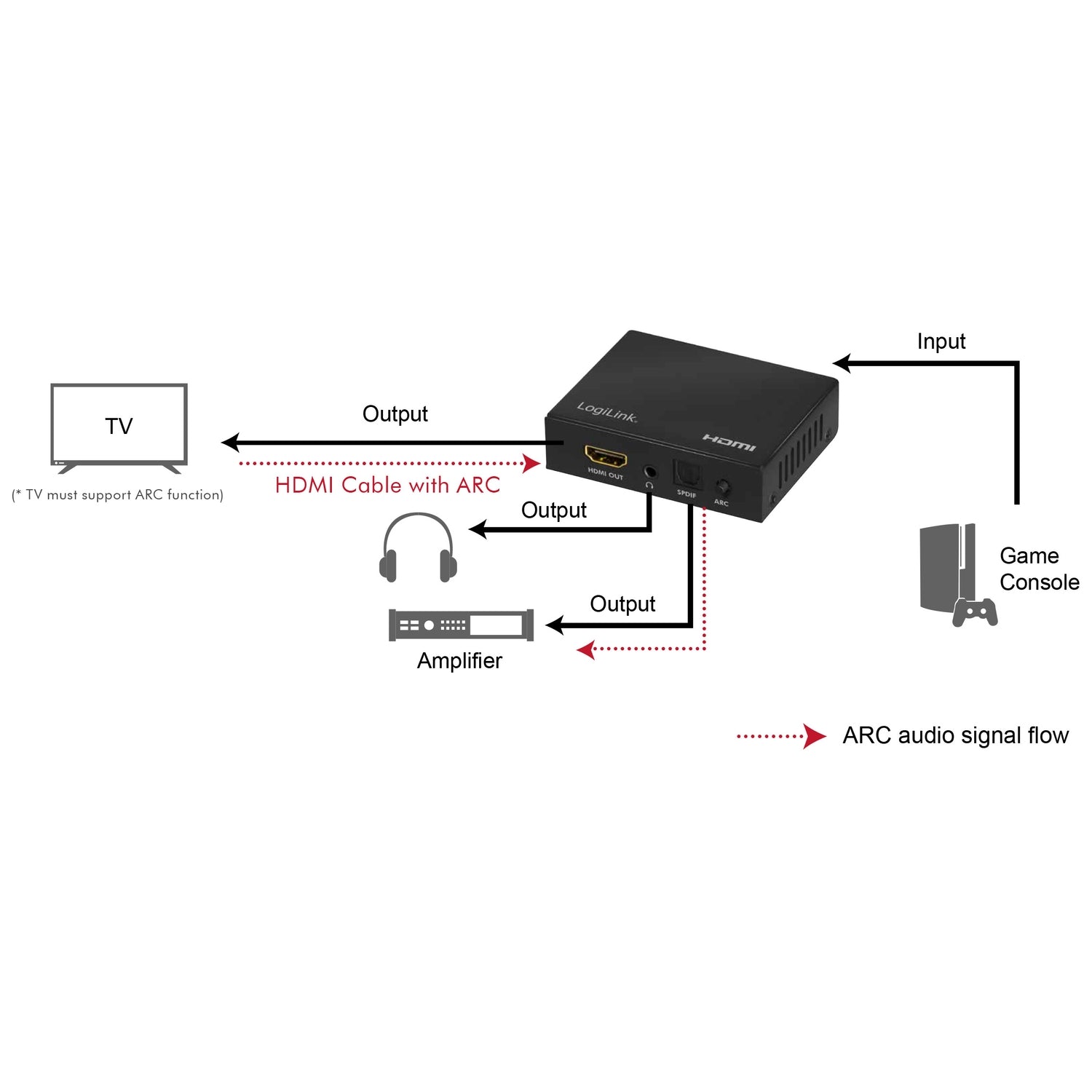

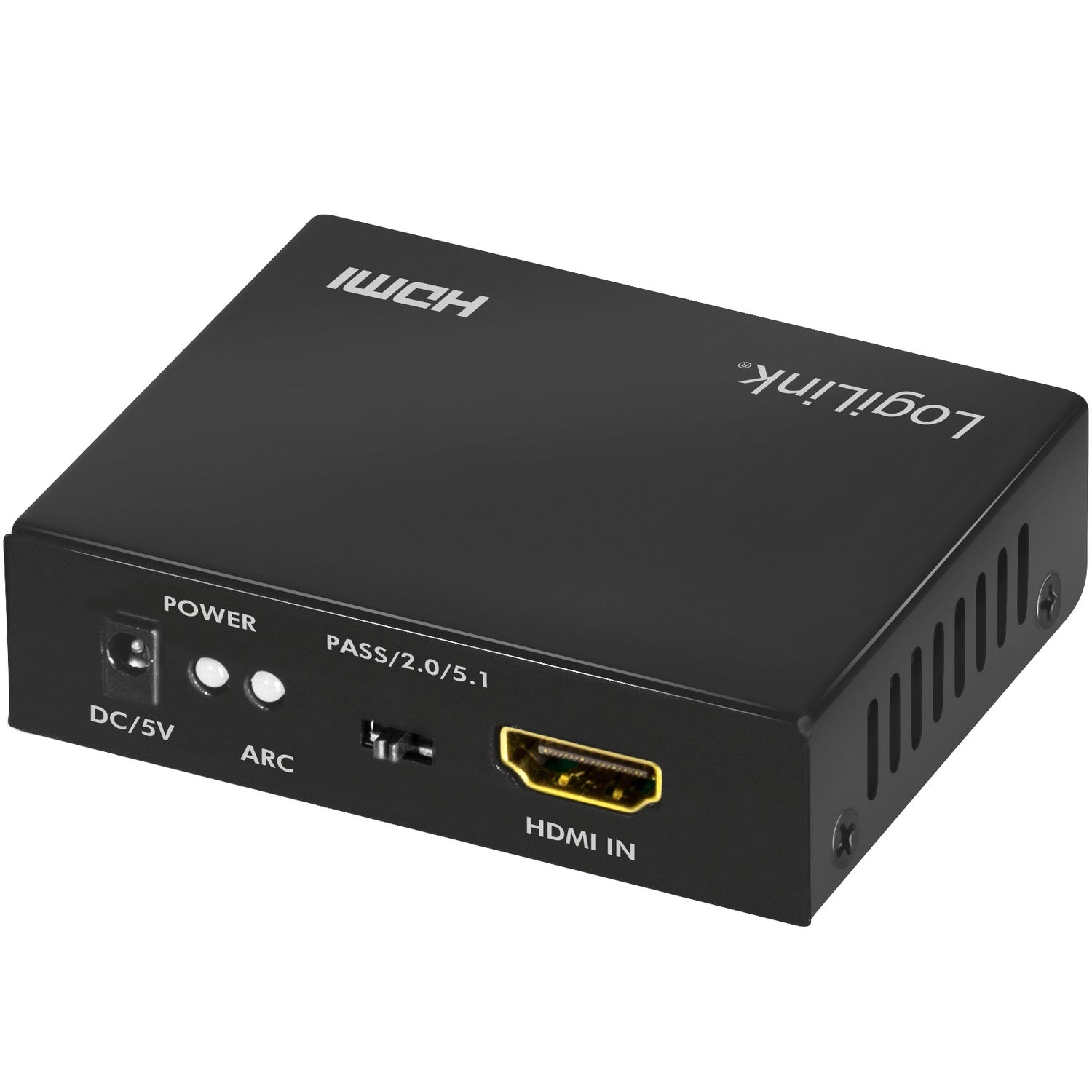

HDMI audio extractor, 2CH, 5.1 4K/60Hz Adapter that separates the audio from the HDMI signal. This Audio Extractor supports resolutions up to 4K @ 60 Hz and outputs the audio separately via a SPDIF or 3.5mm stereo. It also supports ARC, simply connect it to an ARC-compatible TV and extract the sound separately to an external sound system, such as a soundbar or amplifier.

- Converts digital HDMI signals to analog and digital audio (HDMI, SPDIF and 3.5mm) - Supports 2.0 CH / 5.1 CH / PASS audio switching - Supports UHD 4K @ 60 Hz (YUV 4:4:4), Full 3D and 12-bit deep color - Supports HDCP 2.2 - Supports HDR and CEC - Supported audio formats for HDMI output: DTS-HD Master Audio™ / Dolby TrueHD - Plug and play , no drivers needed

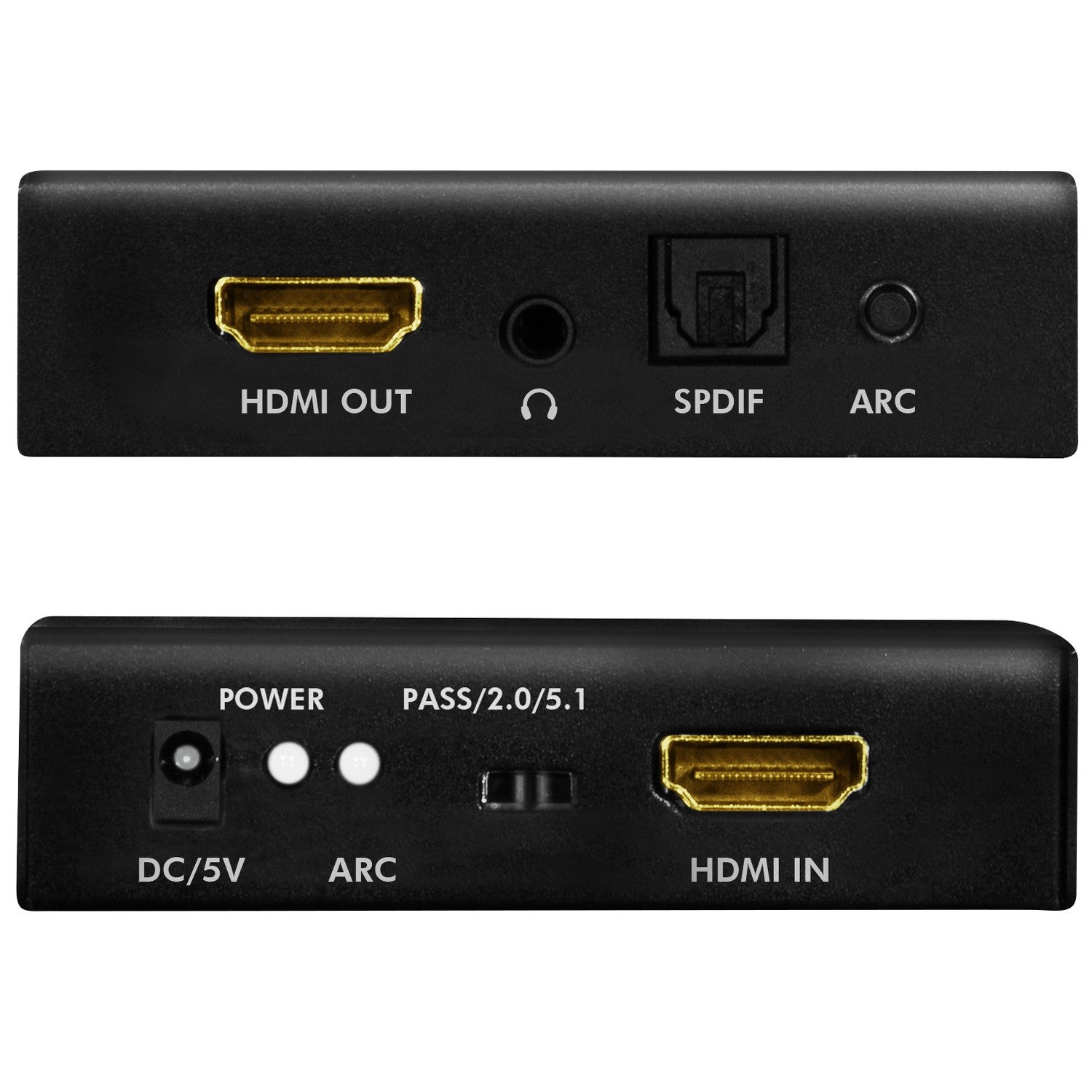

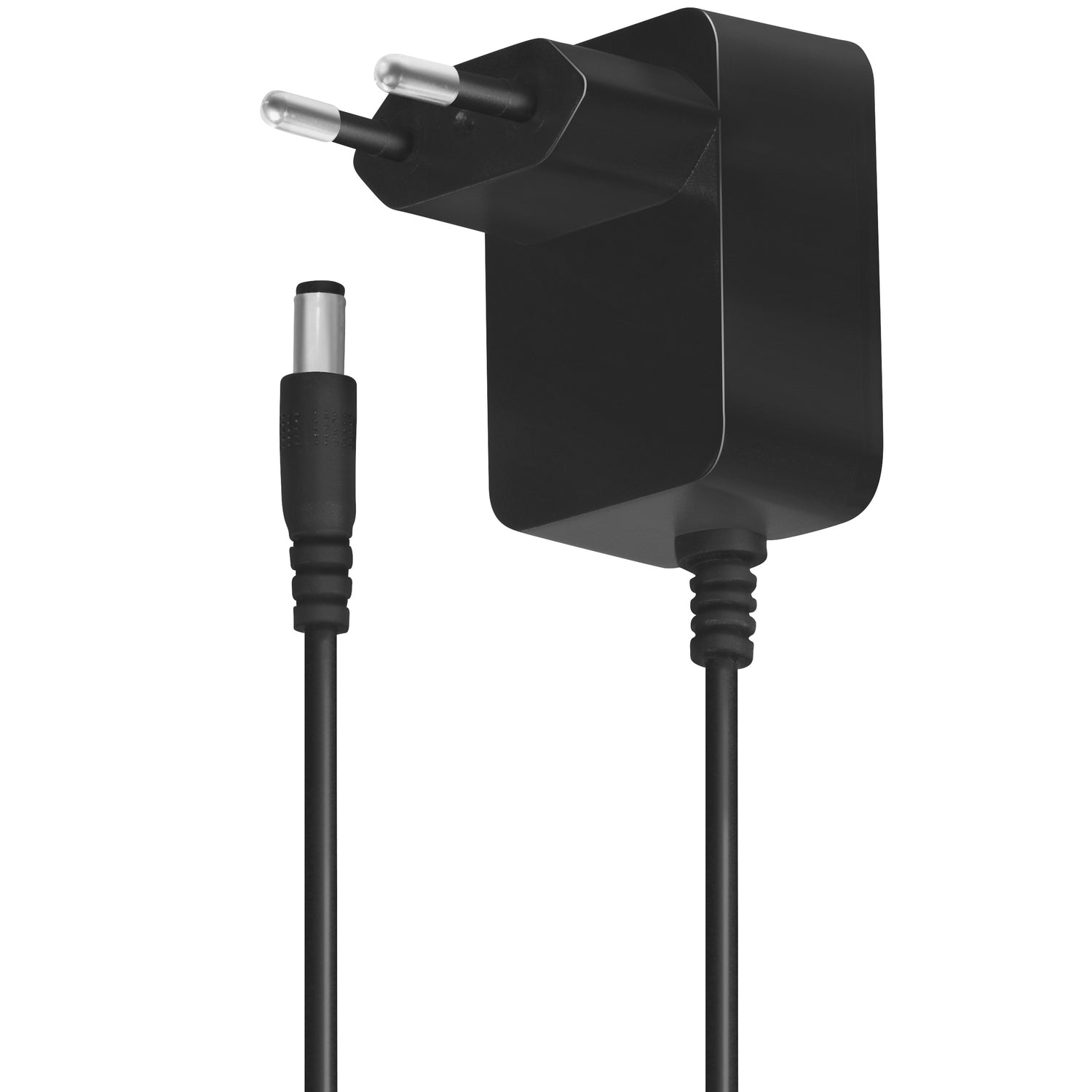

Specifications In: 1x HDMI-A female, 1x DC socket Out: 2x HDMI-A female, 1x SPDIF, 1x 3.5mm phono socket HDMI Version: 2.0 HDCP Version: 2.2 HDMI ARC: Yes HDMI CEC: Yes HDMI HDR: Yes Video resolution out: 480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz , 4K@24/25/30 Hz, 4K@50/60 Hz Video bandwidth: 6 Gbps/600 MHz SPDIF: Yes Power consumption: 5W max. Power supply: 5V /1 A Uncompressed Audio: LPCM 7.1 Compressed Audio: HDMI: DTS-HD Master Audio™, Dolby TrueHD SPDIF: DTS/Dolby Digital Dimensions: 7.8 x 6 x 2 cm

Product document CE marking Instructions for safe use in Swedish p>
