8 in 3-Jaw Lathe Chuck, Self-Centering, 4-200 mm Range

8 in 3-Jaw Lathe Chuck, Self-Centering, 4-200 mm Range

Formular de produs
Cod articol: 11368850587975

8-inch self-centering lathe chuck delivers fast, repeatable workpiece holding to reduce setup time and improve turning accuracy. Built with an... Citește mai mult

Momentan indisponibil

1.389,00 lei  1.258,00 lei

    Plătește în siguranță cu

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livrare gratuită
    • Retur în 30 de zile
    • Plată în siguranță

    Specifications

    Chuck type3-jaw self-centering
    Chuck OD8 in / 200 ± 5 mm
    Internal clamping range4–85 mm (0.157–3.346 in)
    External clamping range70–200 mm (2.76–8 in)
    Boreφ65 mm
    Main body materialHT300
    Jaw material/hardness20Cr, ≥53 HRC
    Scroll material/hardness40Cr, ≥45 HRC
    Bearing tolerance≤0.05 mm / 0.002 in
    Surface treatmentoil coated; Ra < 0.8
    Fixed thread3-M10
    Product sizeφ200 × 160 mm
    Net weight27.1 lb / 12.3 kg

    Description

    8-inch self-centering lathe chuck delivers fast, repeatable workpiece holding to reduce setup time and improve turning accuracy. Built with an HT300 body, hardened 20Cr jaws, and a 40Cr scroll, it’s designed for stable clamping across small and large parts. Dual-use jaws support internal and external gripping, while the T-key drive keeps adjustments simple for daily machining, milling, drilling, and workshop fabrication.

    Designed for precision machining where consistent concentricity matters, this 3-jaw chuck pairs a compact, reliable structure with hardened components to handle repeated clamping cycles. The scroll-and-pinion mechanism helps keep jaws synchronized for stable gripping during turning operations, and the wide clamping range makes it practical for prototyping, repair work, and production tasks. Add it to your lathe or machining setup for quicker changeovers and dependable holding—grab yours today.

    Specifications
    • Delivers self-centering clamping to minimize re-tramming and speed up setup
    • Fits internal range 4–85 mm (0.157–3.346 in) and external range 70–200 mm (2.76–8 in)

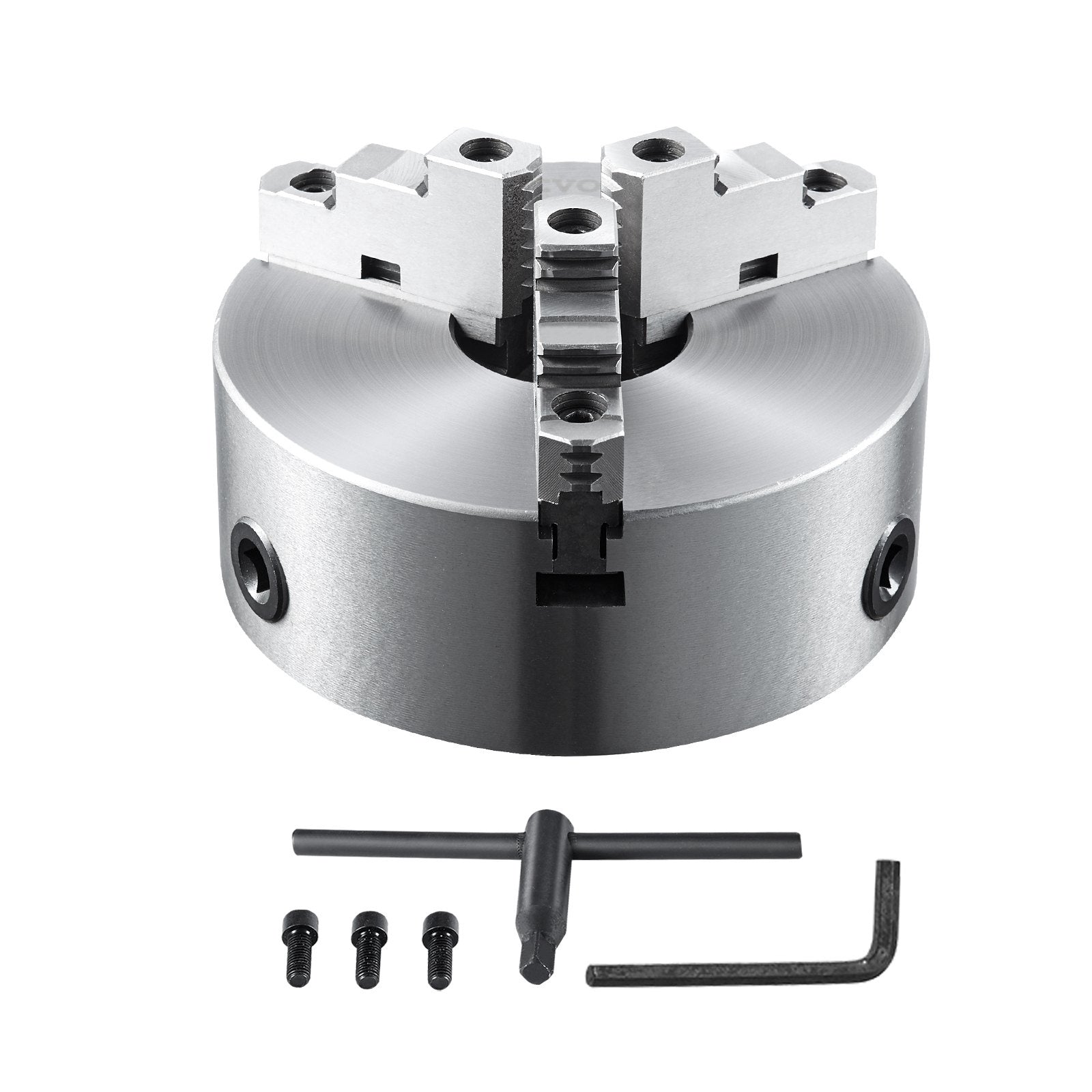

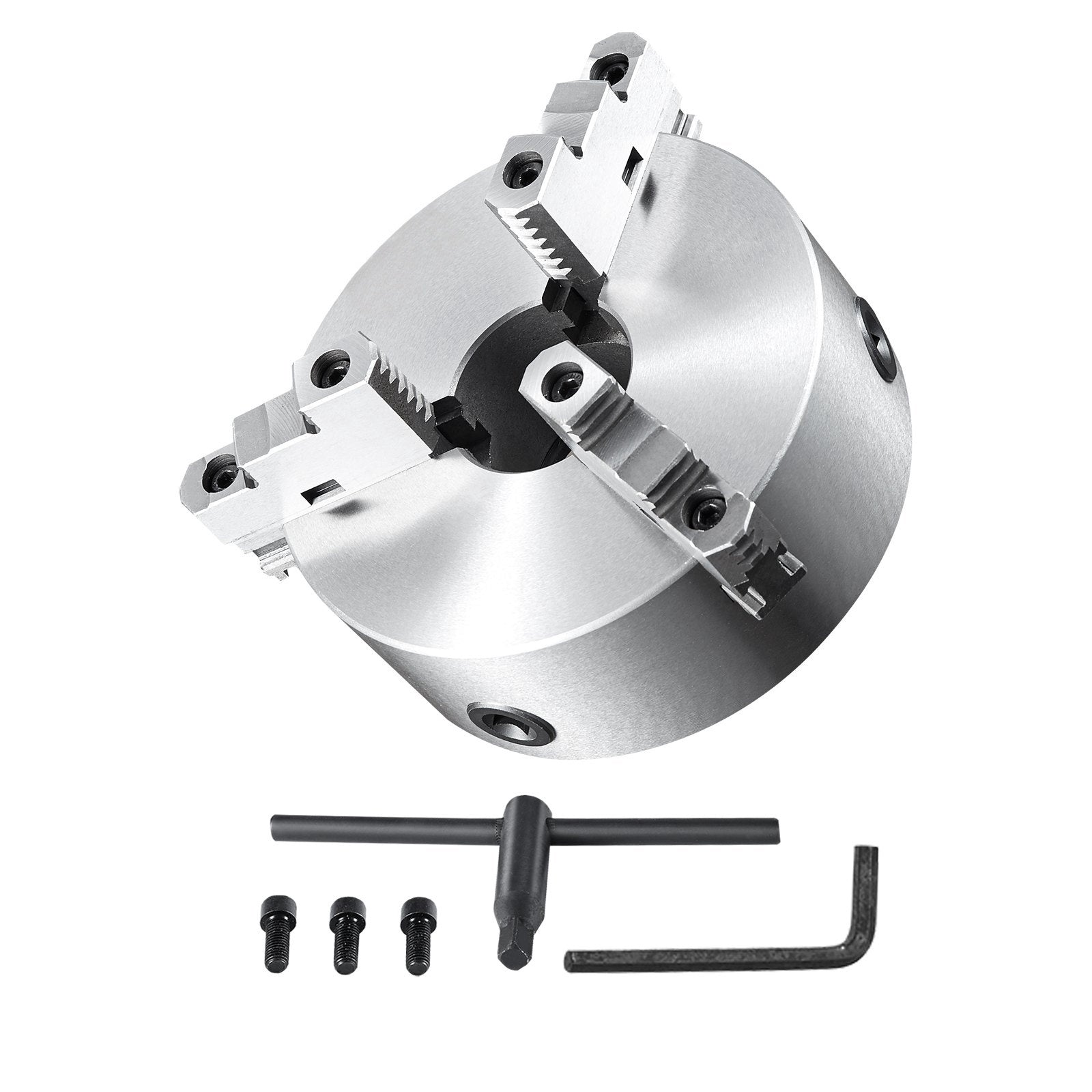

    • Includes T-key, fixing screws, and hex wrench for installation and jaw changes
    • Supports dual-use jaws for internal/external gripping of varied workpiece shapes
    • Maintains accuracy with ≤0.05 mm bearing tolerance and fine surface finish (Ra < 0.8)
