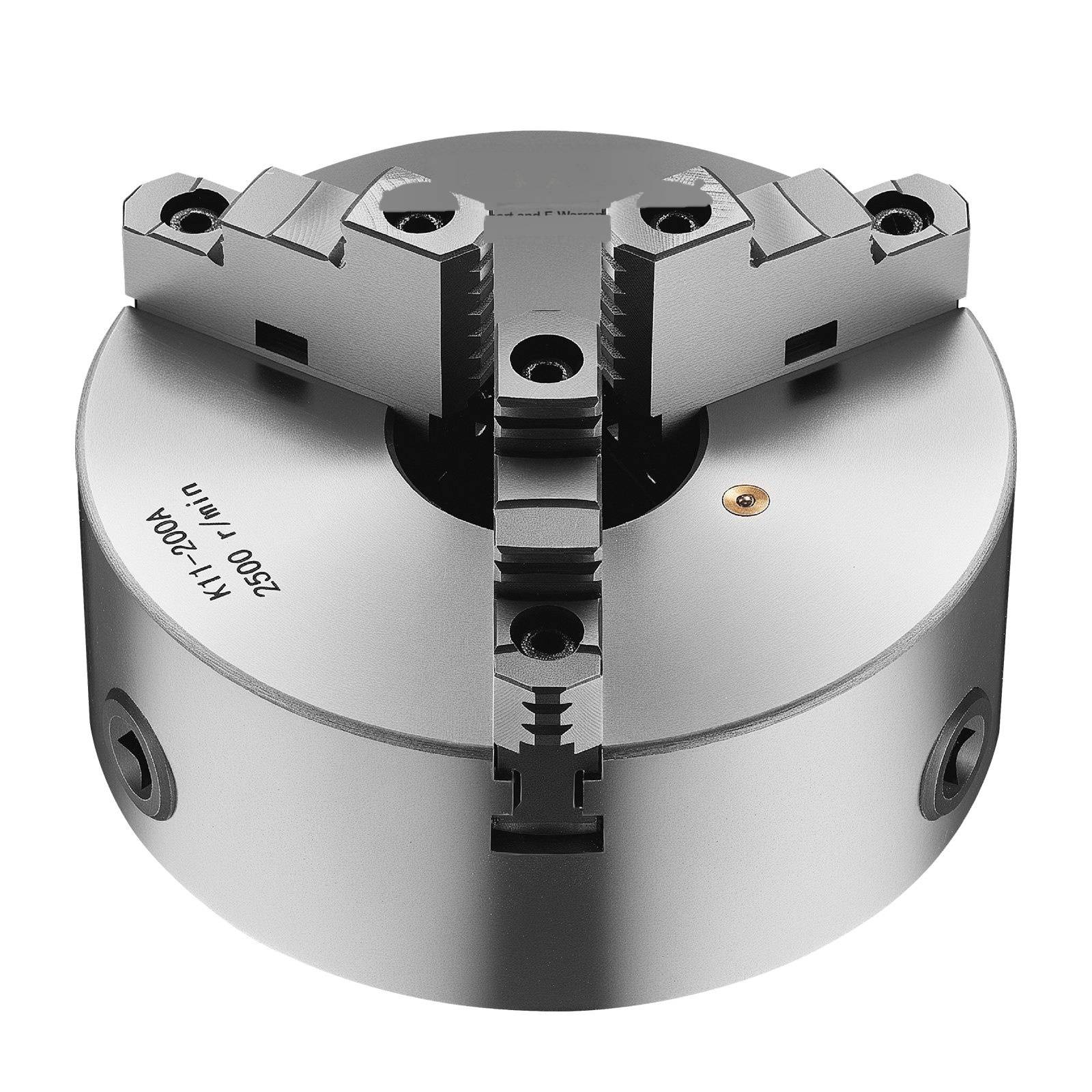

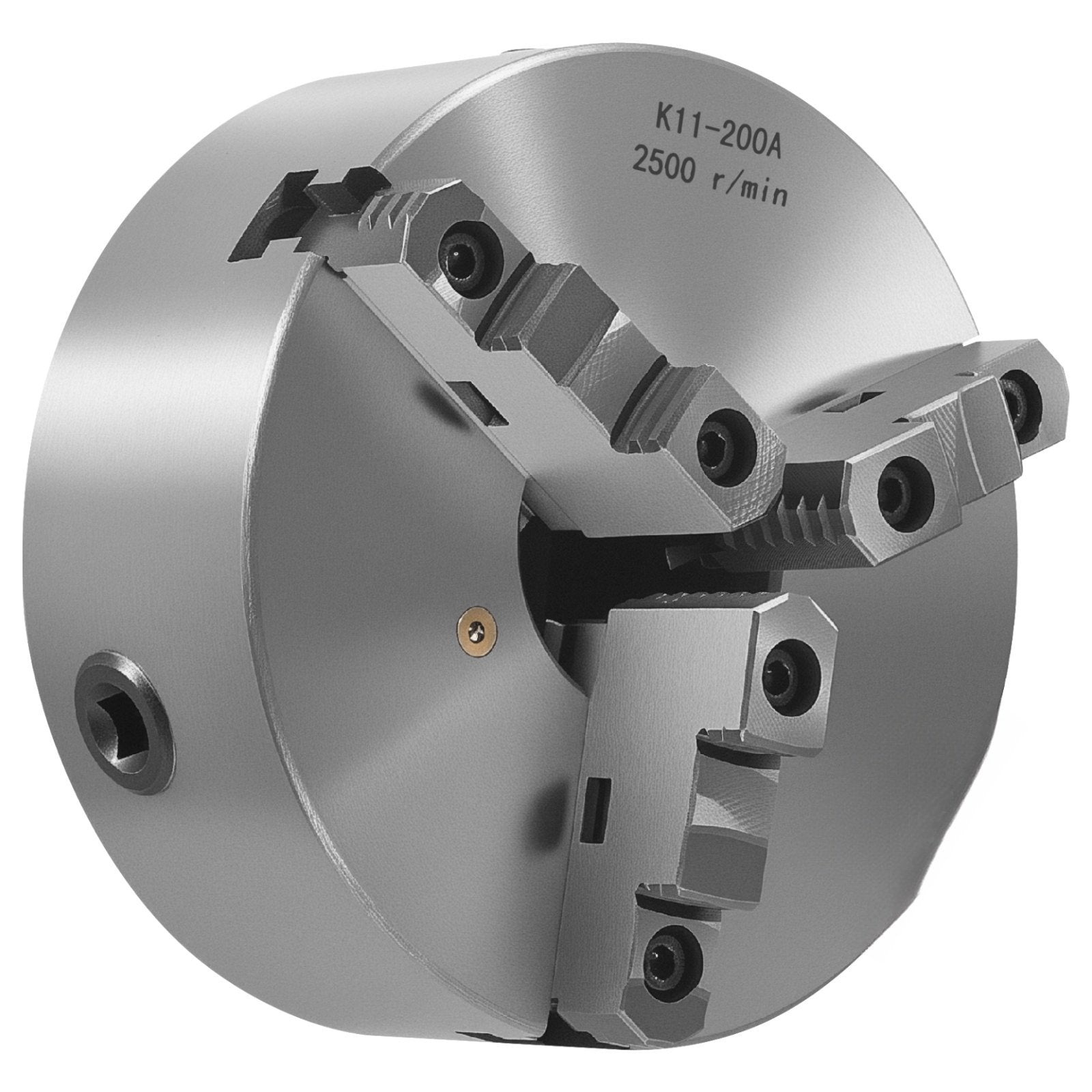

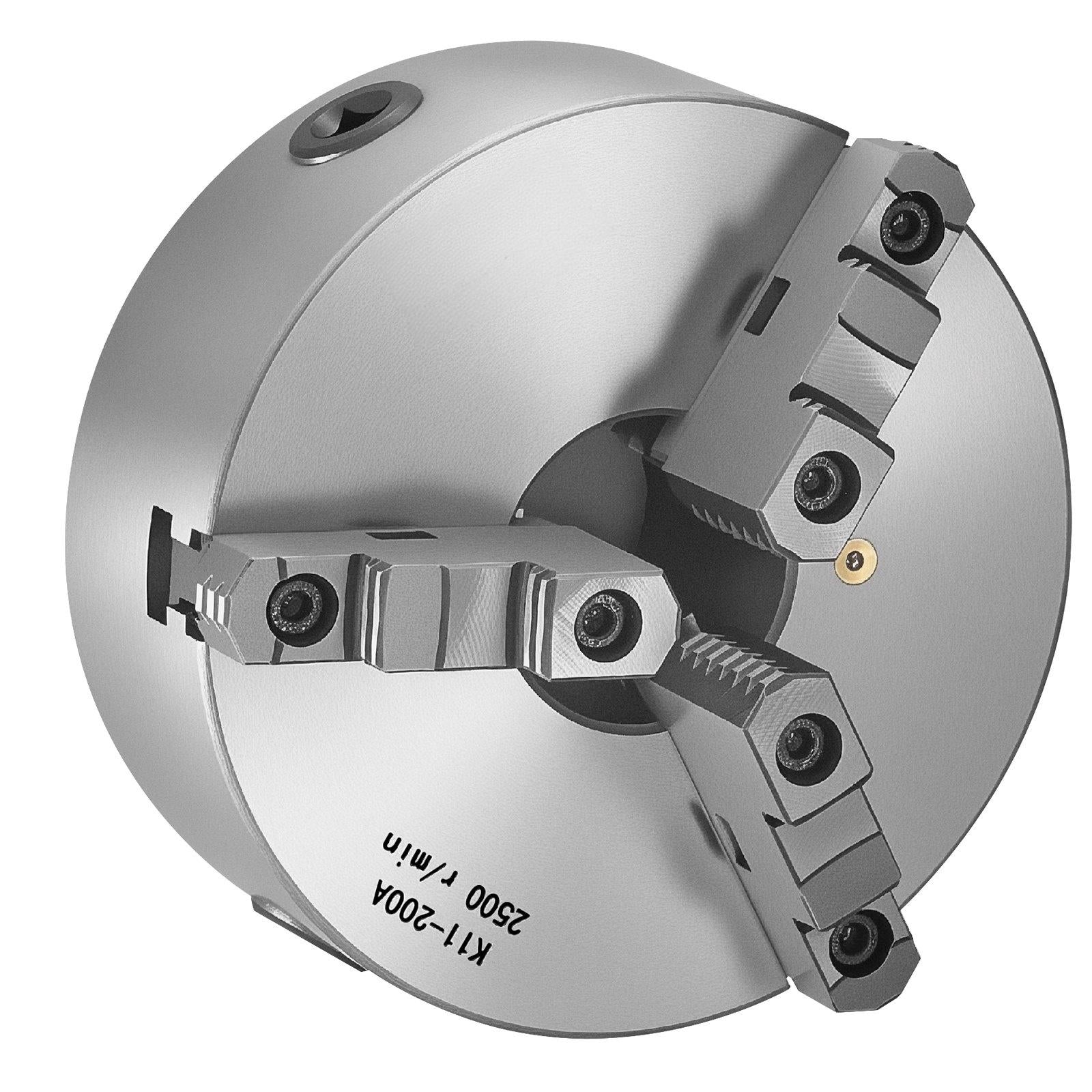

3-Jaw Lathe Chuck 8 in, Self-Centering, 2-1/4-8
3-Jaw Lathe Chuck 8 in, Self-Centering, 2-1/4-8
3-jaw self-centering lathe chuck delivers fast, accurate workholding to reduce setup time and keep parts running true. This 8 in... Citește mai mult
1.601,00 lei 1.454,00 lei
Plătește în siguranță cu
- Livrare gratuită
- Retur în 30 de zile
- Plată în siguranță
Specifications
| Chuck type | 3-jaw self-centering scroll chuck with backing plate |
|---|---|
| Outer diameter | 8 in / 200 mm |
| Inner diameter | 2.56 in / 65 mm |
| Thread | 2-1/4 in-8 |
| Internal jaw clamping range | 0.16–7.87 in / 4–200 mm |
| External jaw clamping range | 2.56–7.87 in / 65–200 mm |
| Overall size | φ200 × 125 mm (7.87 × 4.92 in) |
| Material | HT300 cast iron |
| Hardness | jaws ≥53 HRC; scroll plate ≥45 HRC |
| Net weight | 35.38 lb / 16.05 kg |

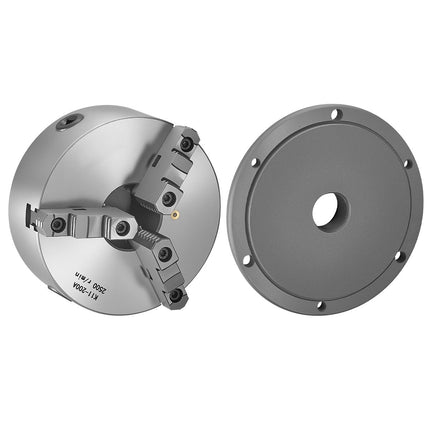

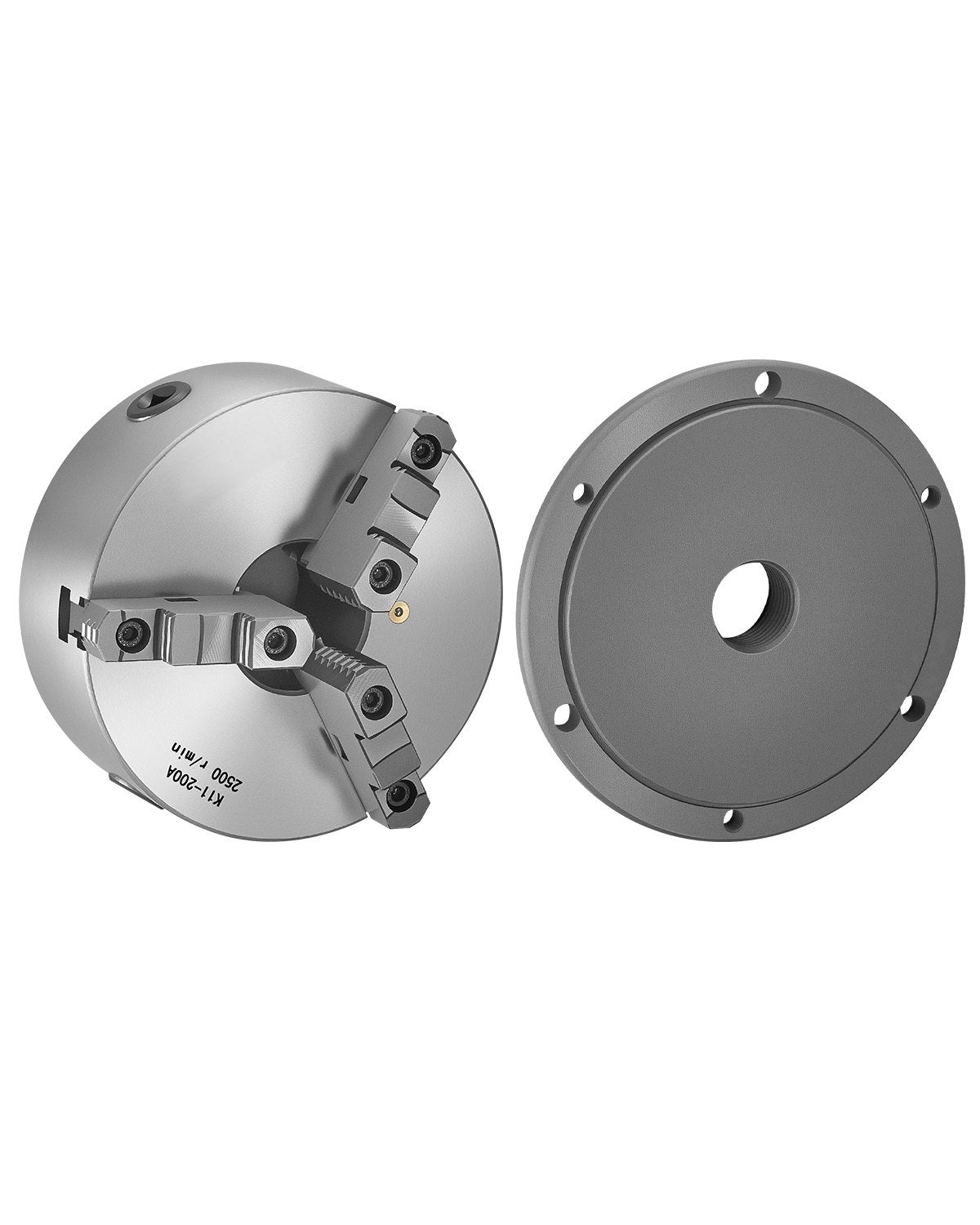

| In the box | chuck, backing plate, separate jaws, T-wrench, screws |
