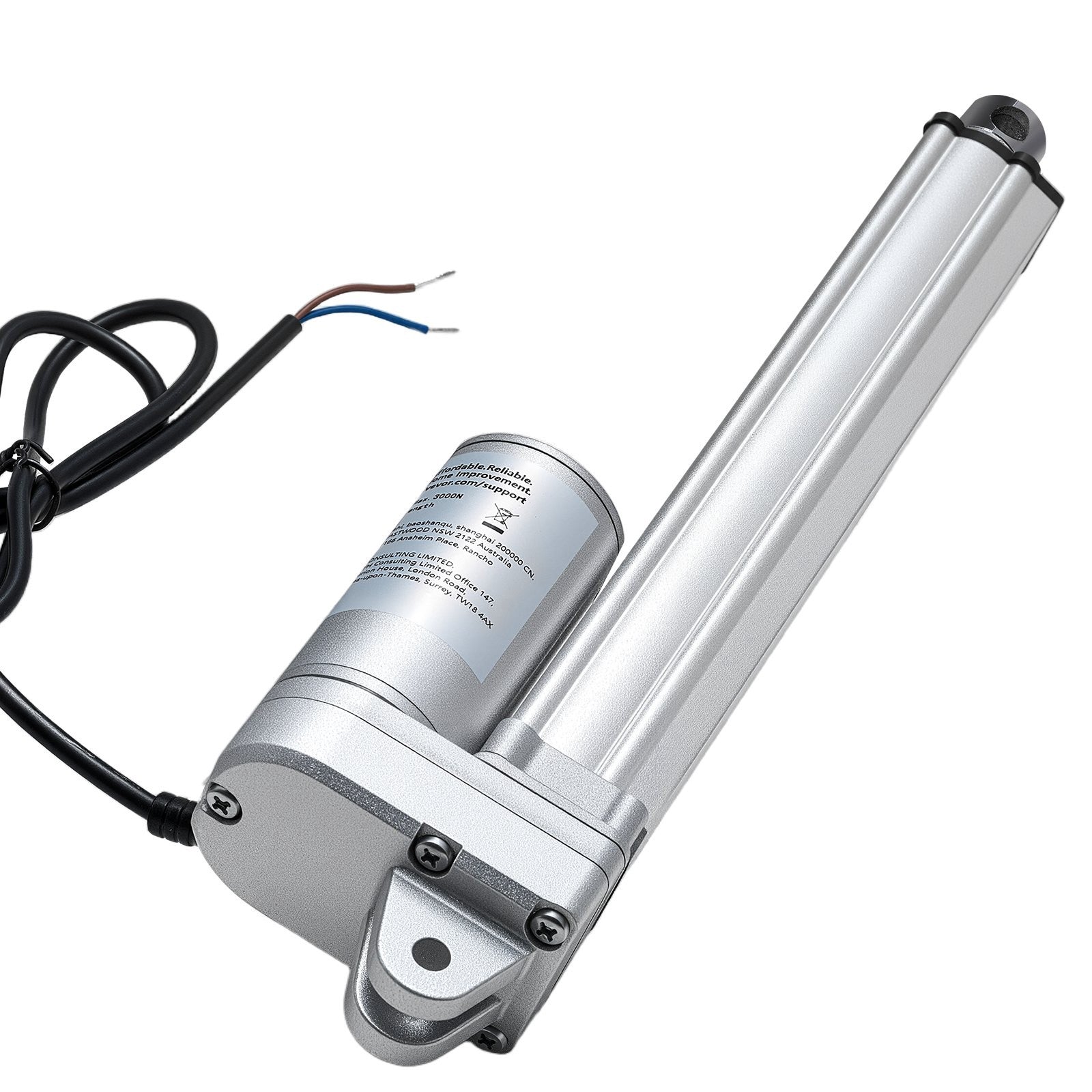

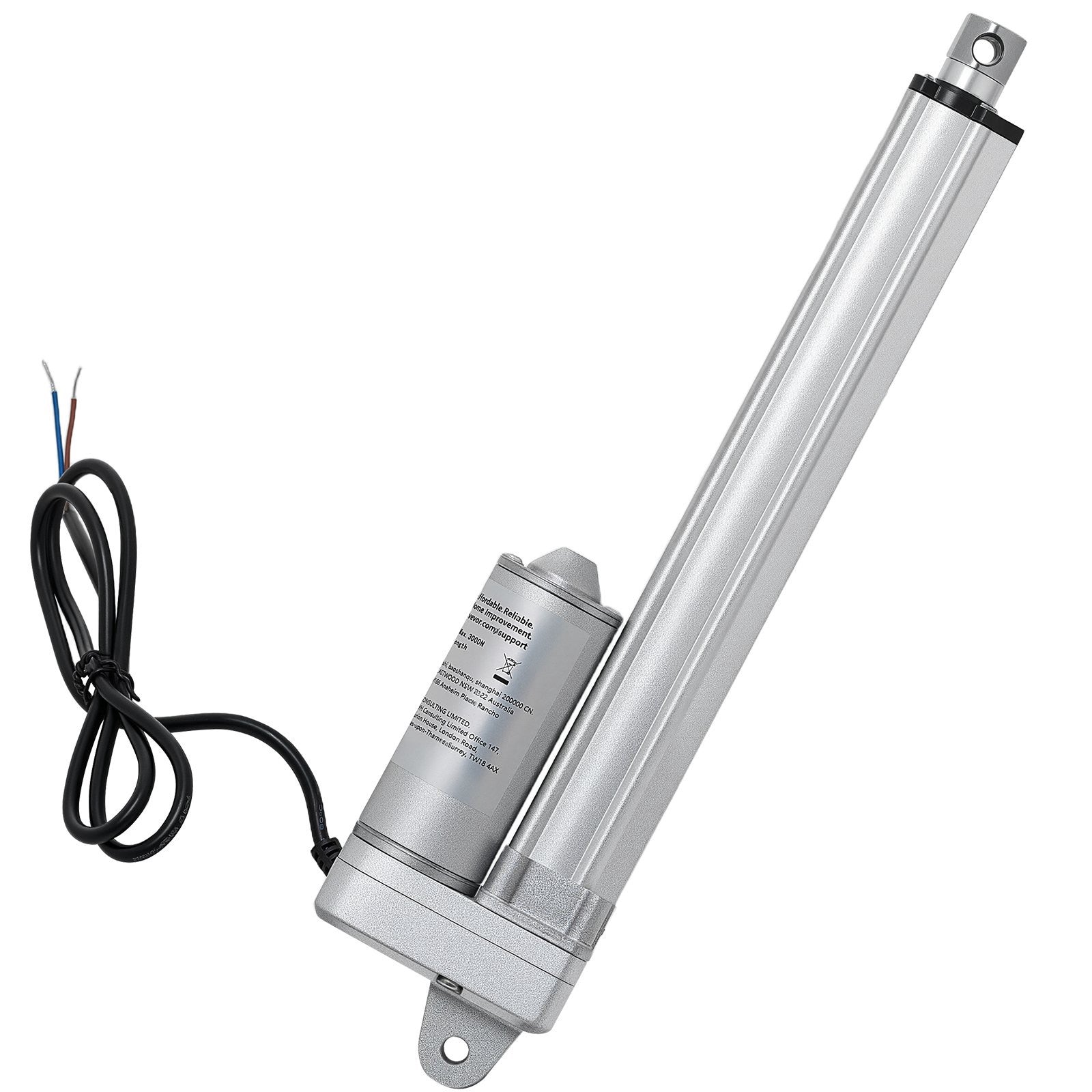

12V Linear Actuator, IP65, 8 In Stroke, 3000N Bracket

12V Linear Actuator, IP65, 8 In Stroke, 3000N Bracket

Formular de produs
Cod articol: 11378883985735

12V linear actuator delivers reliable push/pull motion for automation projects, with an 8-inch (203.2 mm) stroke and IP65-rated dust and... Citește mai mult

Momentan indisponibil

590,00 lei  535,00 lei

    Plătește în siguranță cu

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livrare gratuită
    • Retur în 30 de zile
    • Plată în siguranță

    Specifications

    Input voltageDC 12V
    Max load/thrust3000N (675 lbs)
    Stroke length8 in (203.2 mm)
    Travel speed0.2 in/s (5 mm/s)
    Retracted length13 in (330.2 mm)
    Extended length21 in (533.4 mm)
    IP ratingIP65
    Current draw6A
    Duty cycle25%
    Main materialAluminum alloy
    Net weight3.7 lb (1.66 kg)
    Product dimensions13.8 x 3.1 x 1.8 in (350 x 78 x 45 mm)

    Description

    12V linear actuator delivers reliable push/pull motion for automation projects, with an 8-inch (203.2 mm) stroke and IP65-rated dust and water resistance for tougher environments. Built for medium-load applications up to 3000N (675 lbs), it supports smooth positioning for solar trackers, door openers, agricultural equipment, and industrial machinery. A precision screw drive and aluminum alloy housing help reduce wear through frequent cycles.

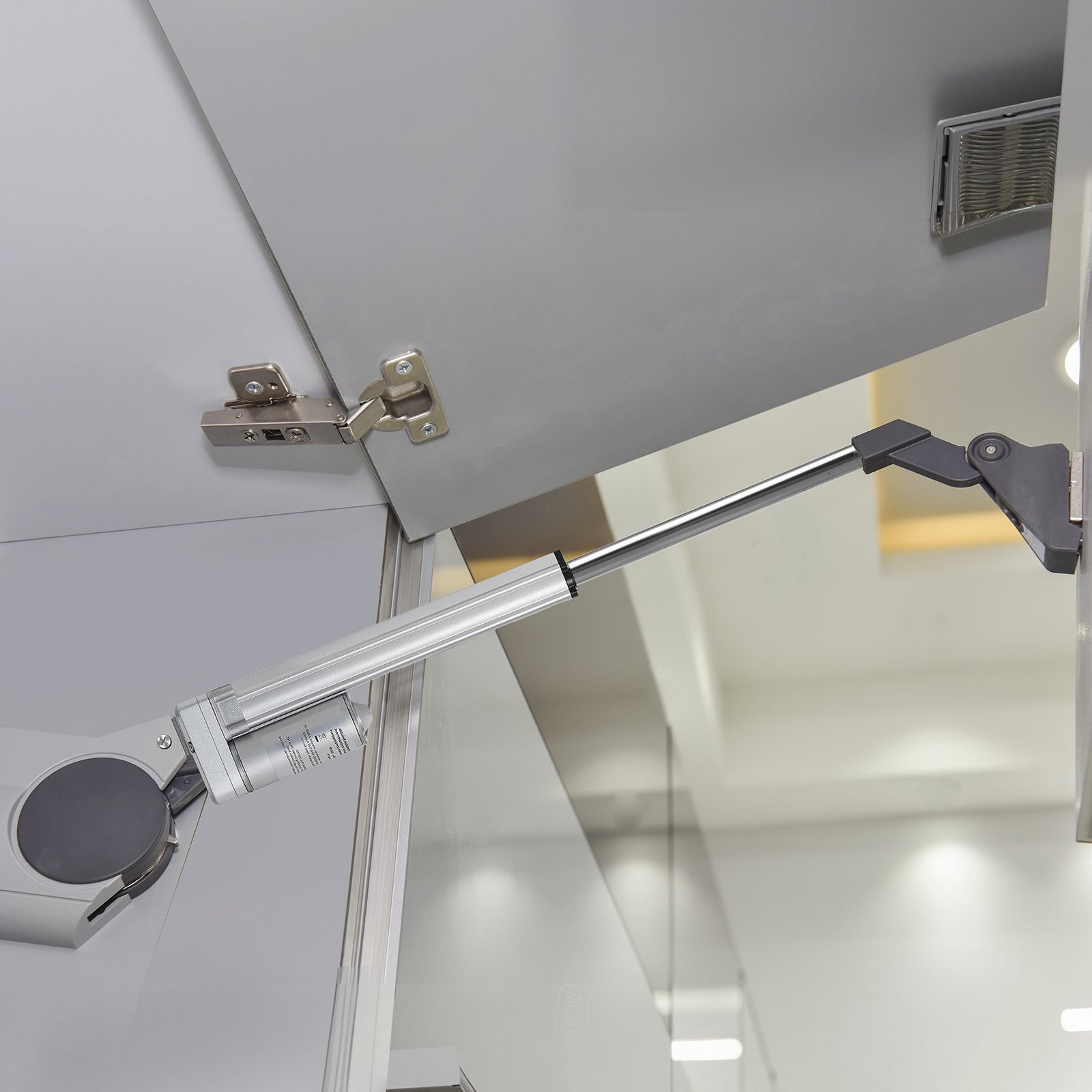

    Designed for makers and maintenance teams who need dependable 12V DC actuation without complex setup, this linear motion actuator fits automation upgrades across equipment, furniture builds, access panels, and solar panel tracking systems. Use it where consistent travel and load handling matter, and plan mounting geometry around the 13-inch retracted and 21-inch extended lengths. For longer service life, avoid prolonged continuous outdoor exposure when possible. Grab yours today and keep your next motion project moving on schedule.

    Specifications
    • Delivers up to 3000N (675 lbs) thrust for lifting, pushing, pulling, and positioning tasks
    • Resists dust and water with an IP65 rating for workshops, farms, and outdoor installations
    • Moves steadily at 0.2 in/s (5 mm/s) for controlled, repeatable linear motion

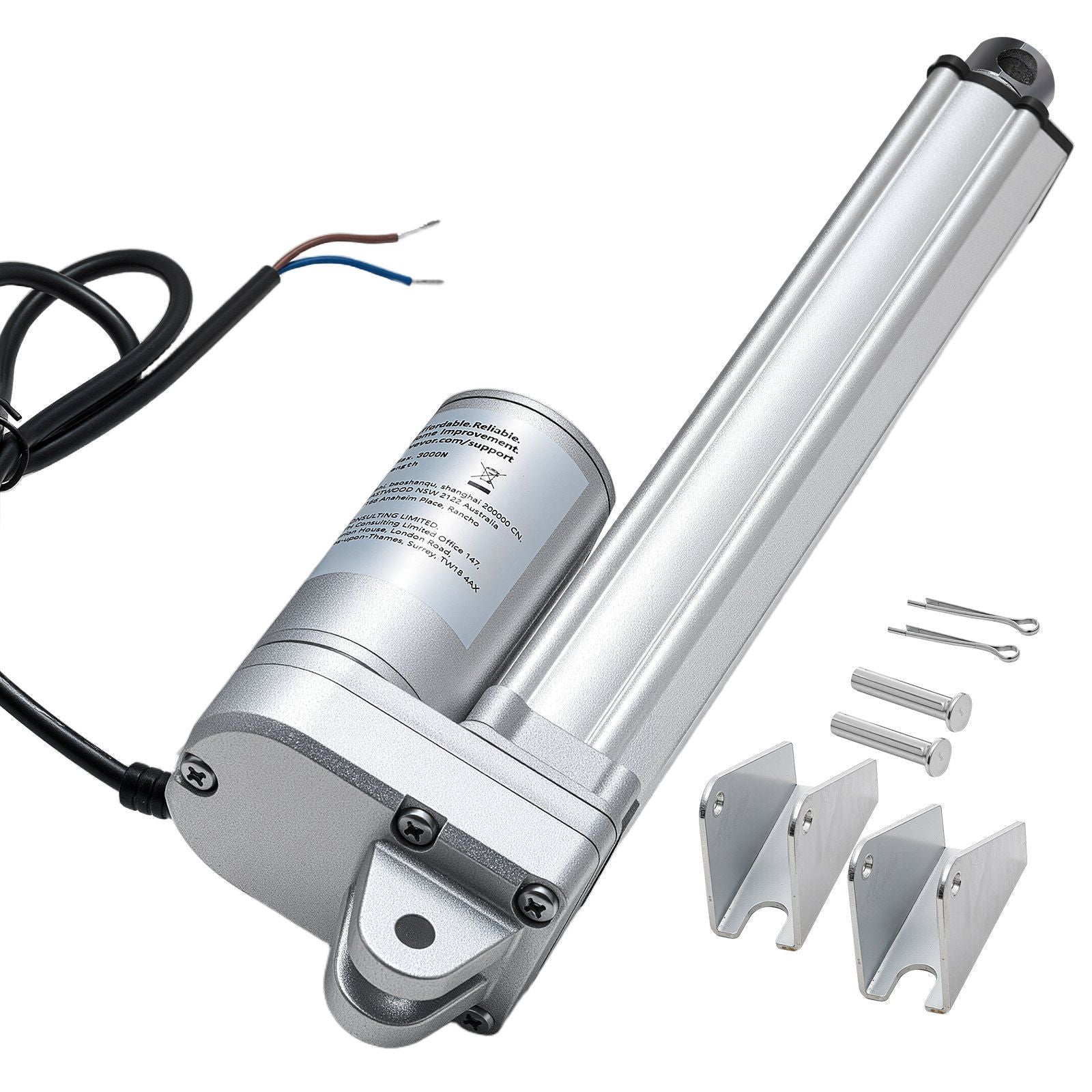

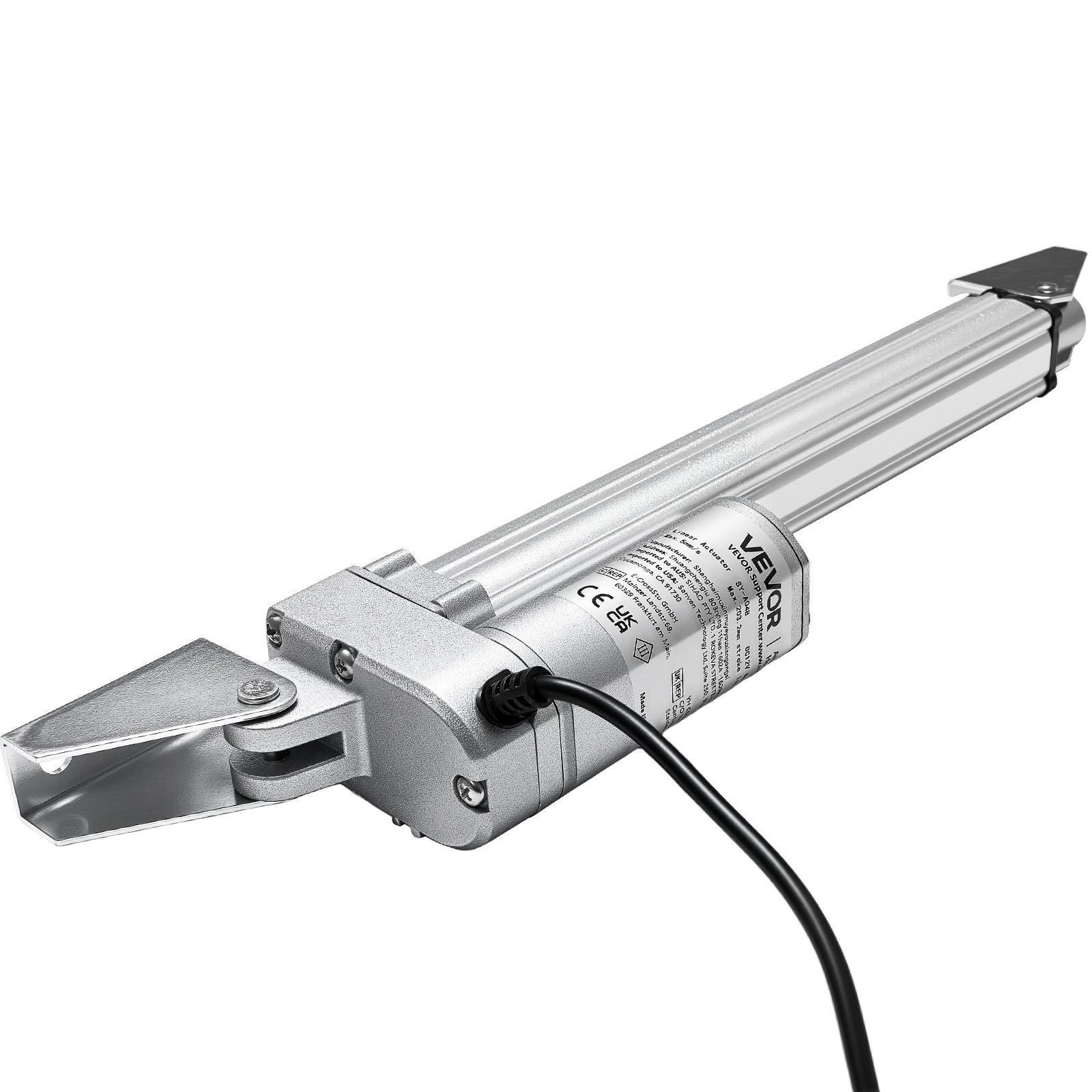

    • Includes mounting bracket support for straightforward integration into frames and mechanisms
    • Runs quieter under no-load (≤65 dB) to help reduce vibration and jamming in frequent cycles
