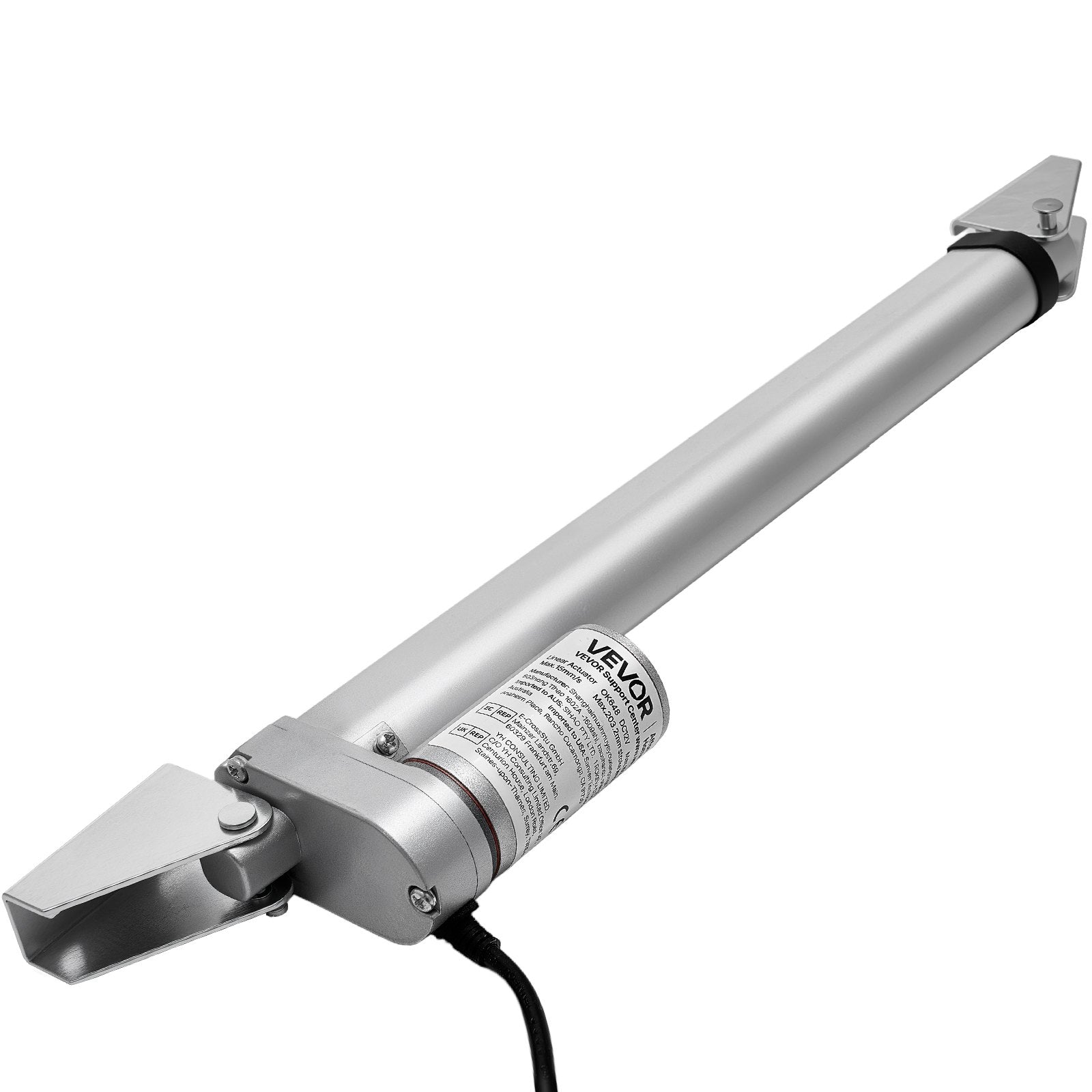

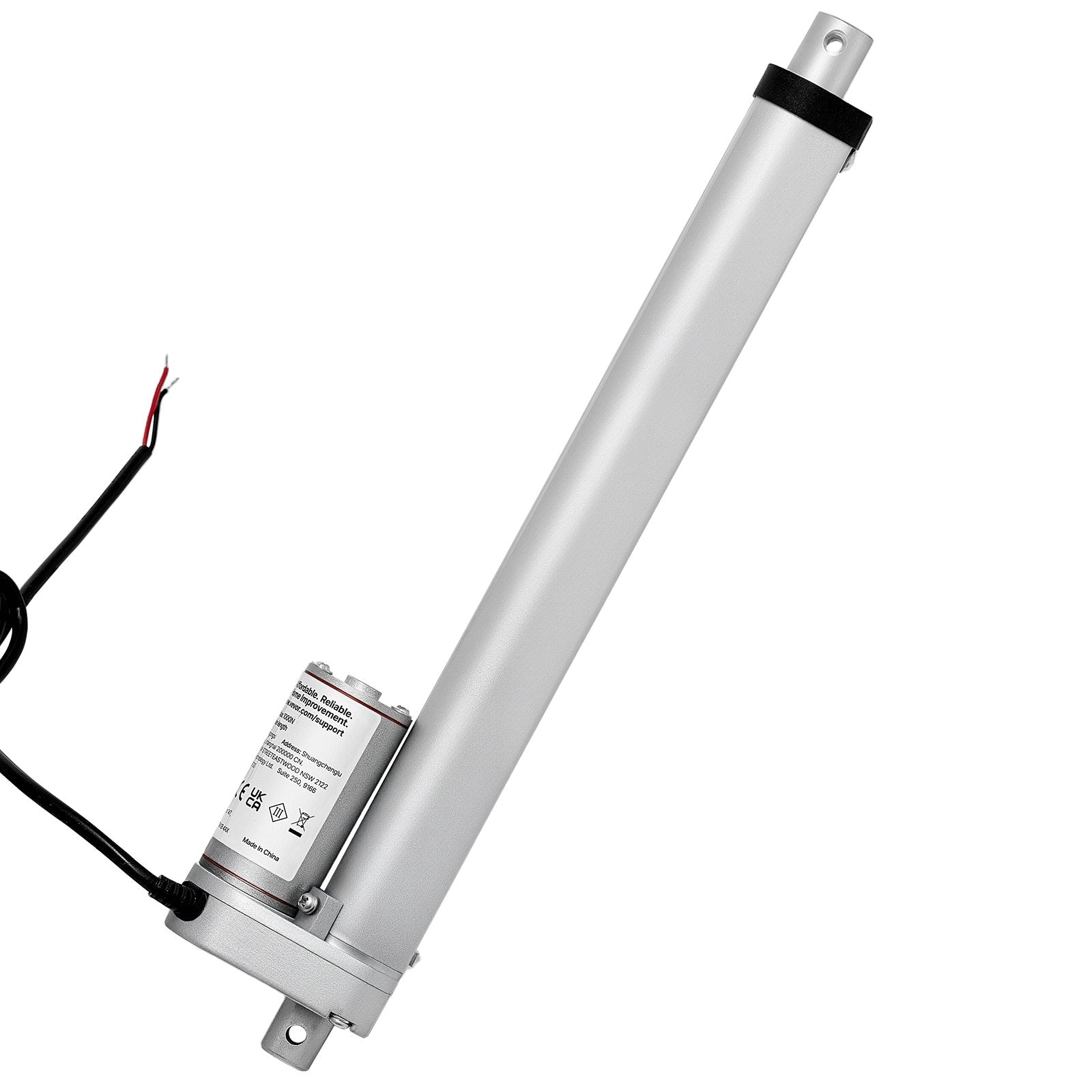

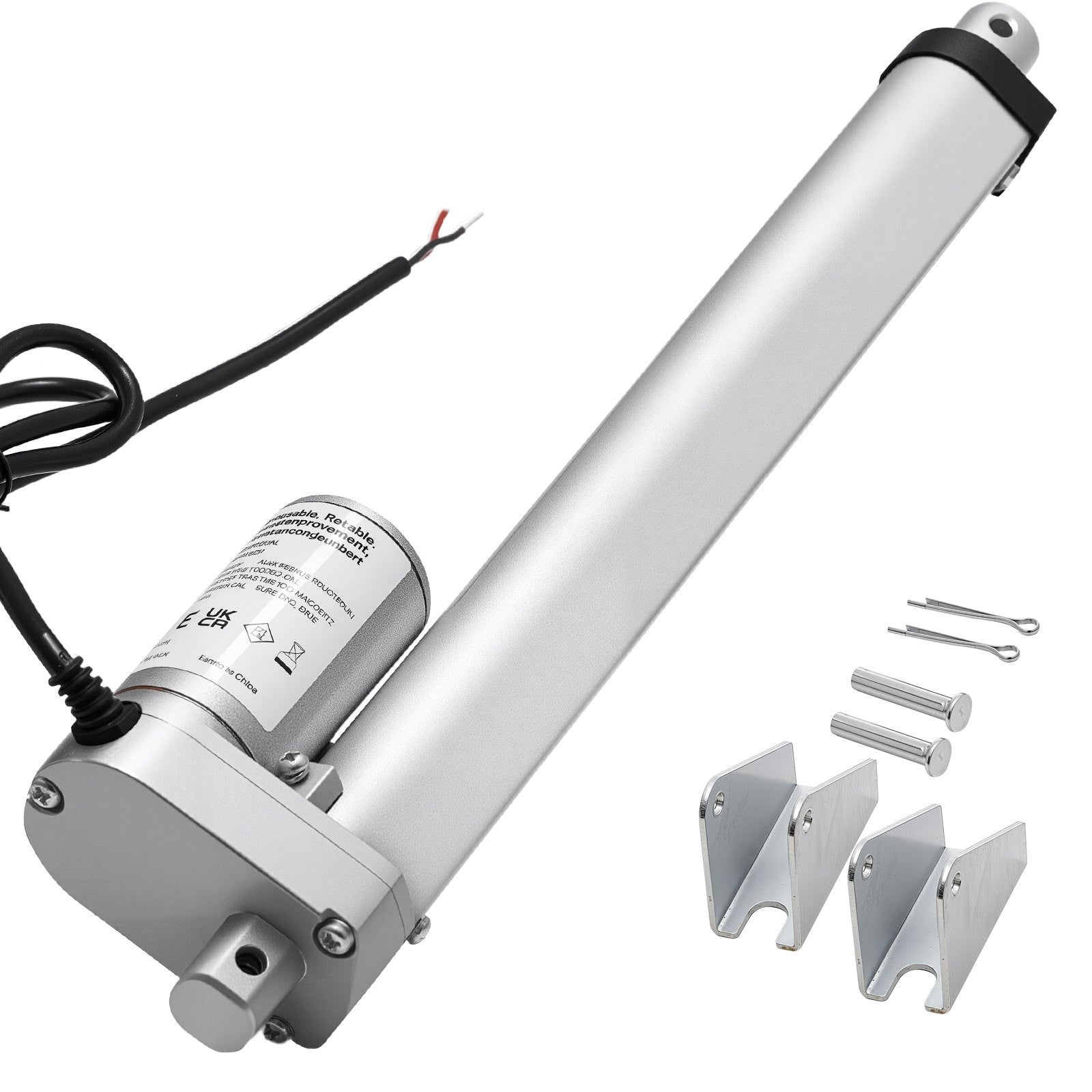

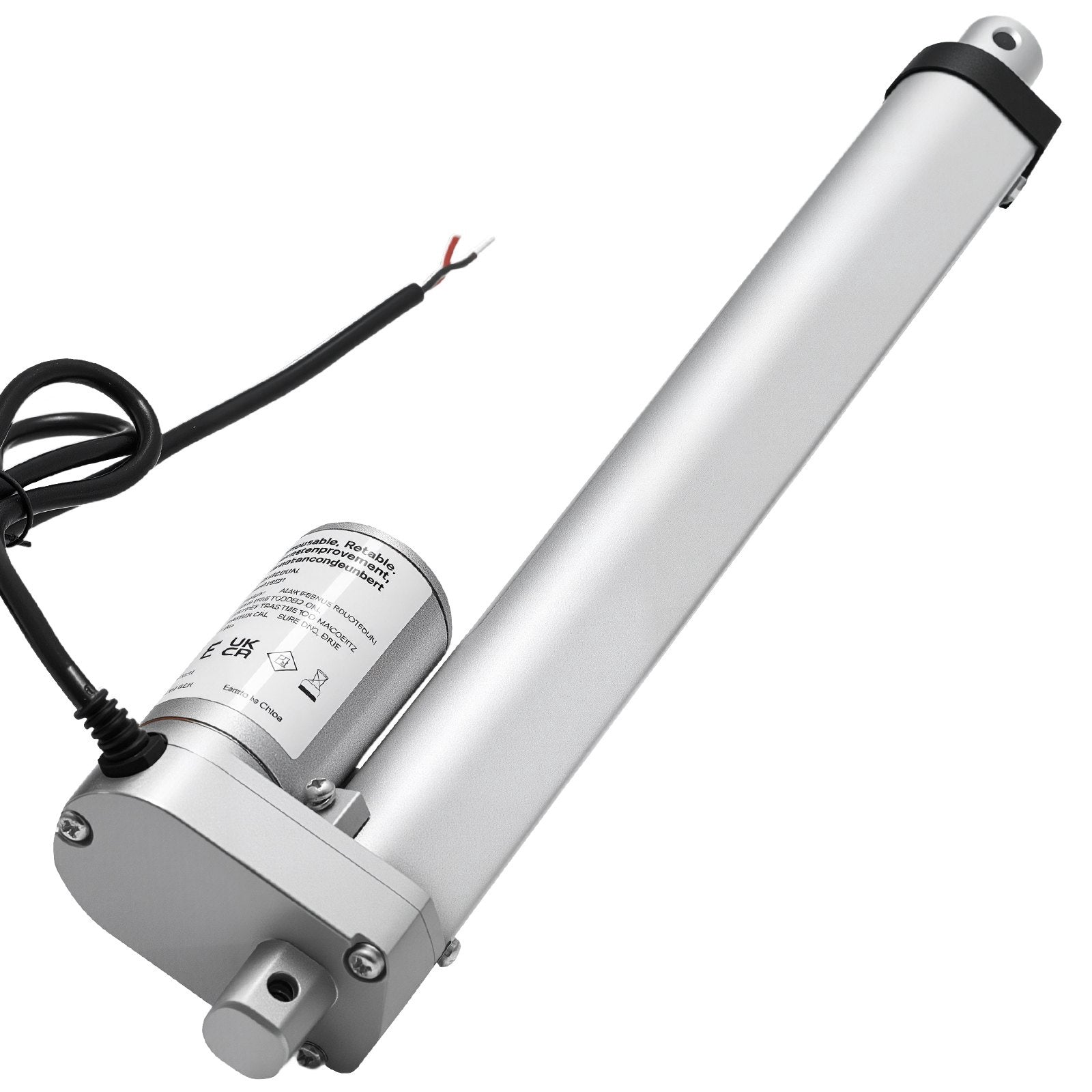

12V Linear Actuator, 250mm Stroke, 1000N, IP54 Bracket
12V Linear Actuator, 250mm Stroke, 1000N, IP54 Bracket

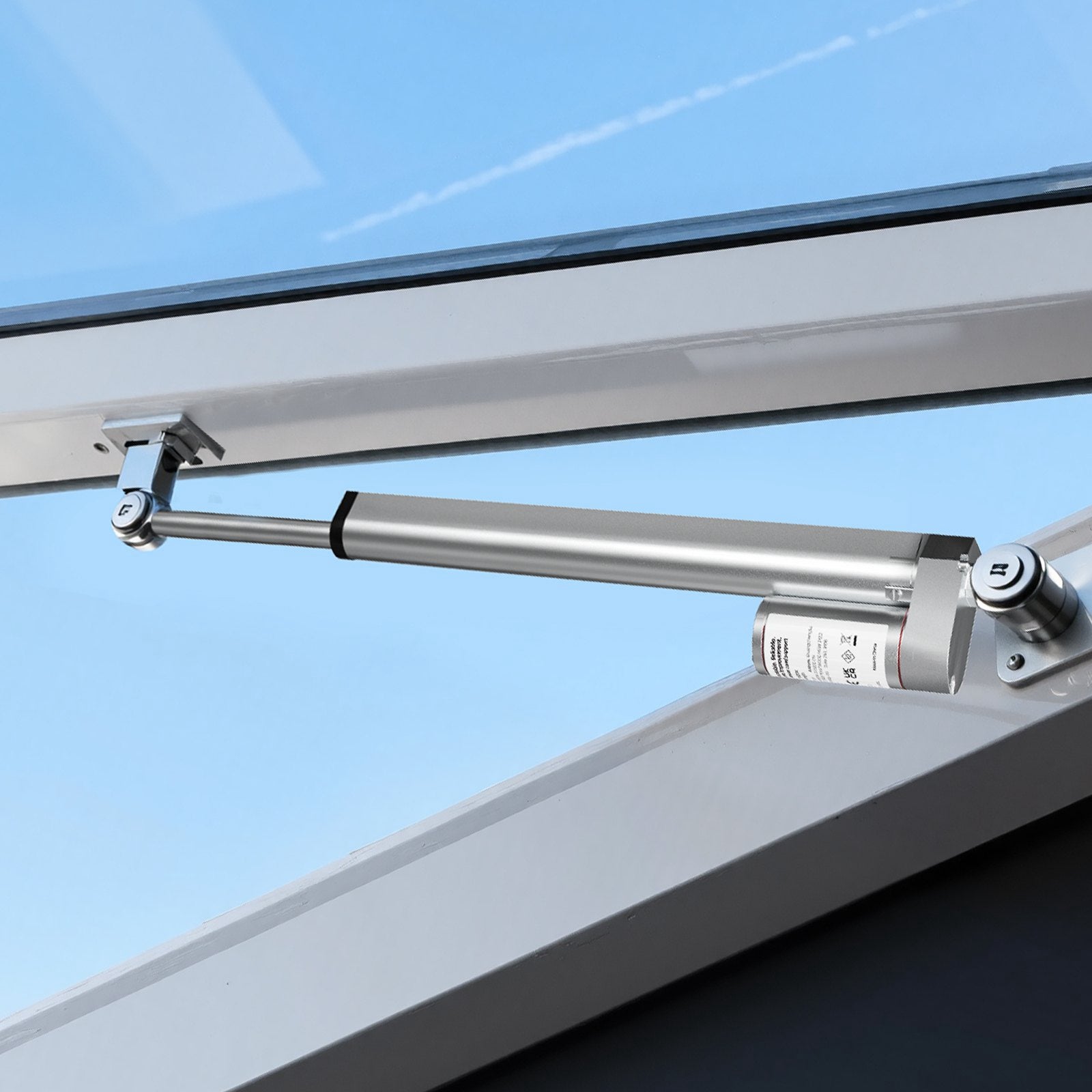

12V linear actuator delivers fast, controlled linear motion for smooth height adjustment and automated lifting in desks, recliners, TV lifts,... Citește mai mult
481,00 lei 437,00 lei
Plătește în siguranță cu
- Livrare gratuită
- Retur în 30 de zile
- Plată în siguranță
Specifications
| Input voltage | DC 12V |
|---|---|
| Max load/thrust | 1000N (225 lb) |
| Stroke length | 250 mm (9.84 in) |
| Travel speed | 15 mm/s (0.6 in/s) |
| Extended length | 605 mm (23.82 in) |
| Retracted length | 355 mm (13.98 in) |
| Current draw | 5 A |
| Duty cycle | 25% |
| IP rating | IP54 |
| Main material | Aluminum alloy |
| Noise | < 50 dB (no-load) |
| Product dimensions | 370 x 75 x 40 mm (14.6 x 3 x 1.6 in) |
| Net weight | 1.196 kg (2.6 lb) |
