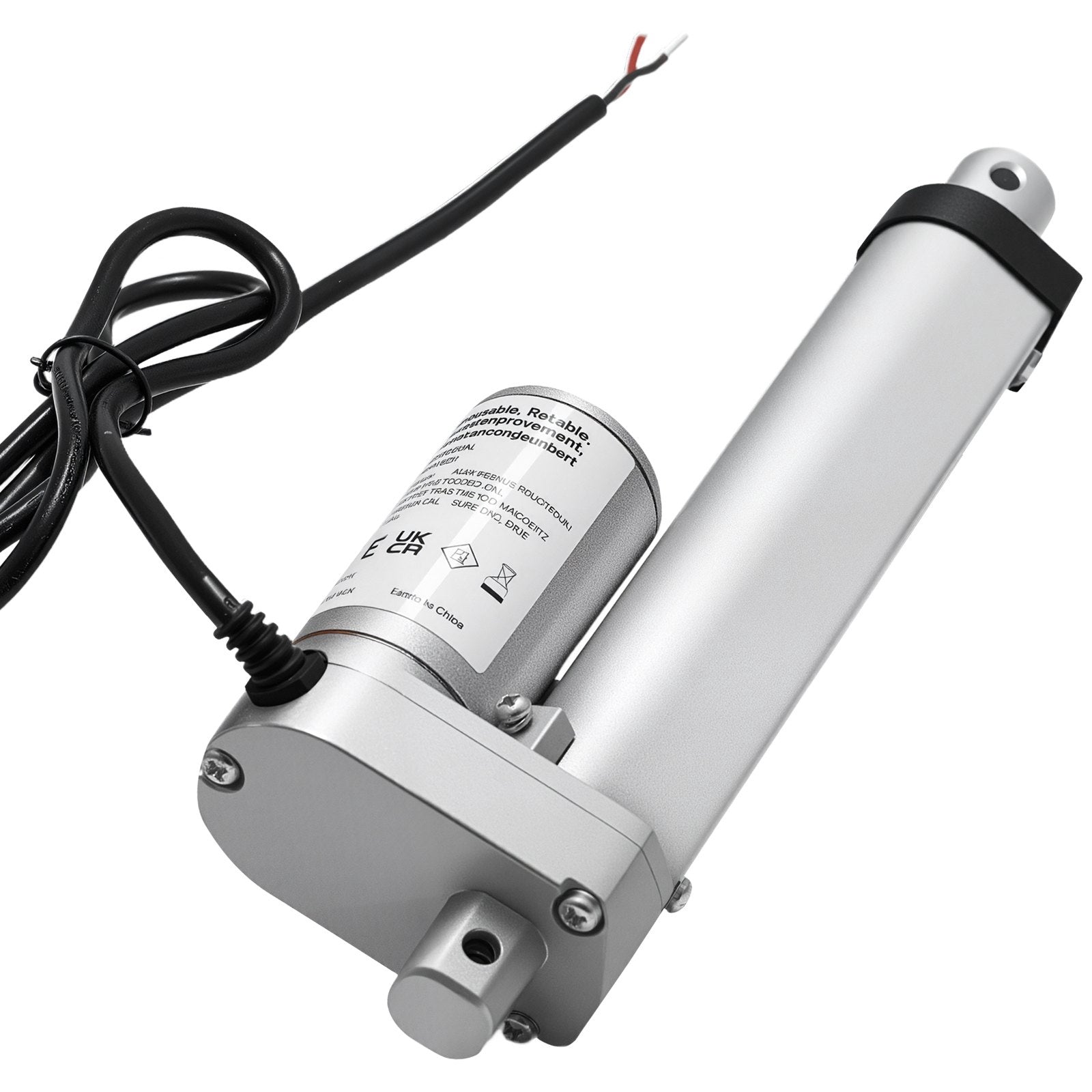

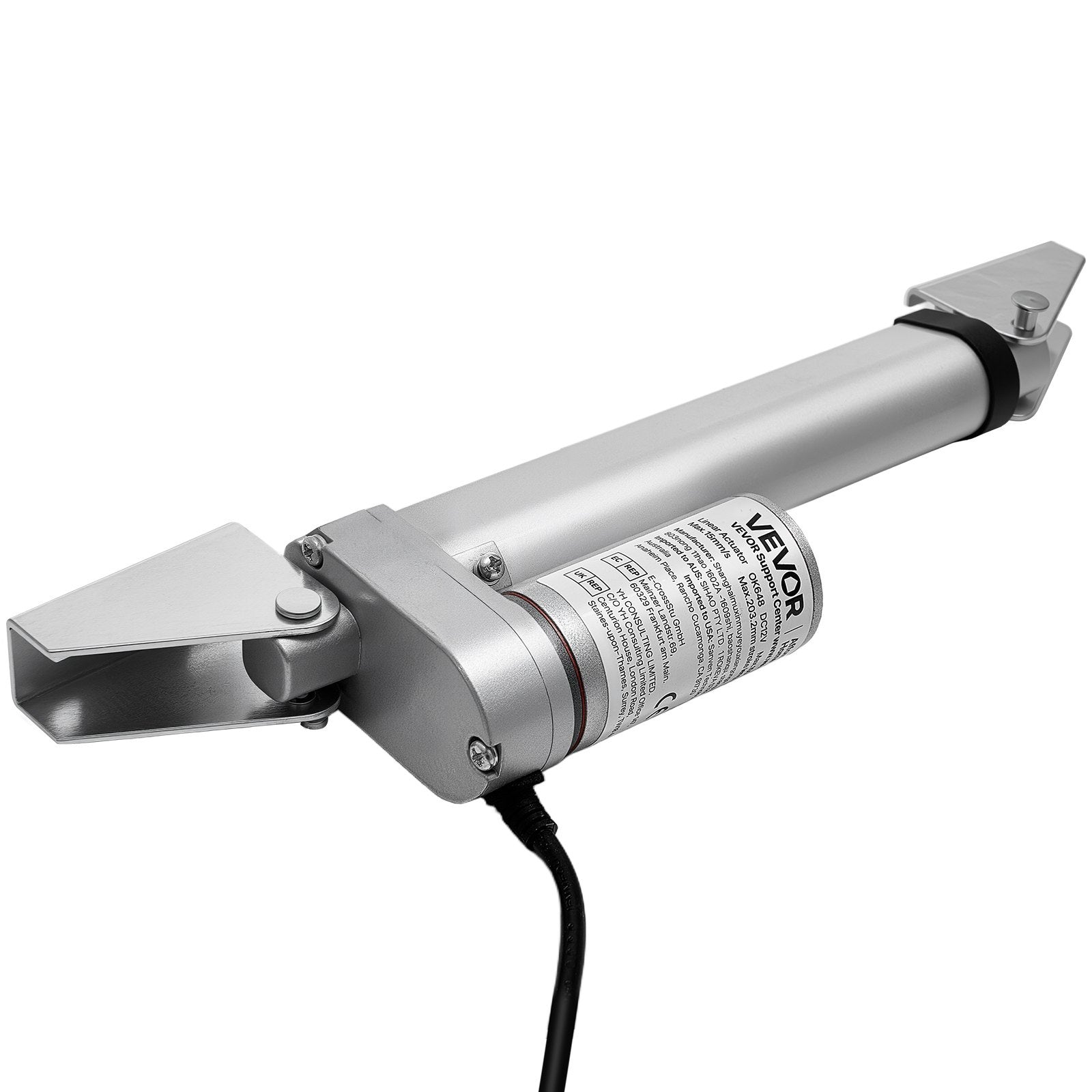

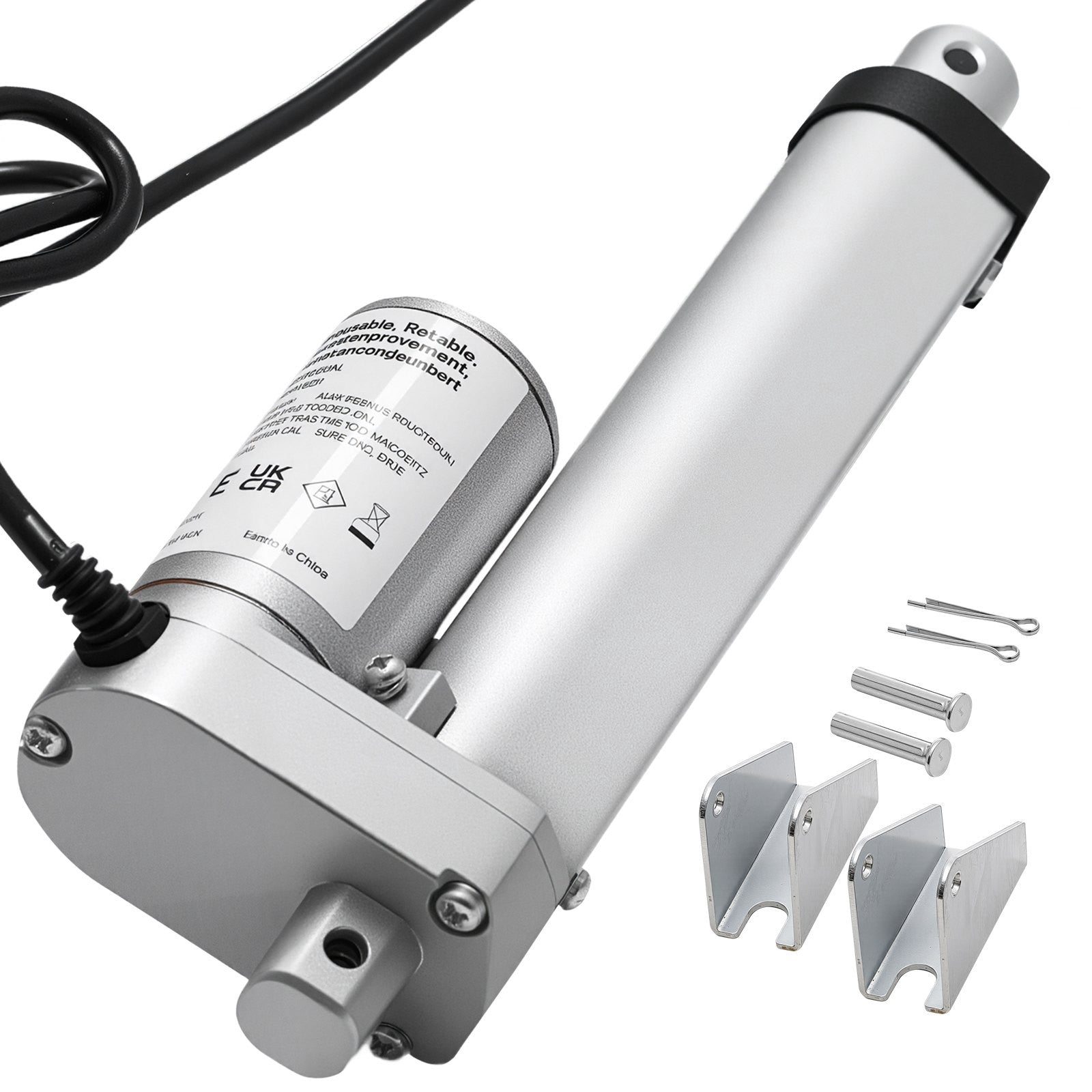

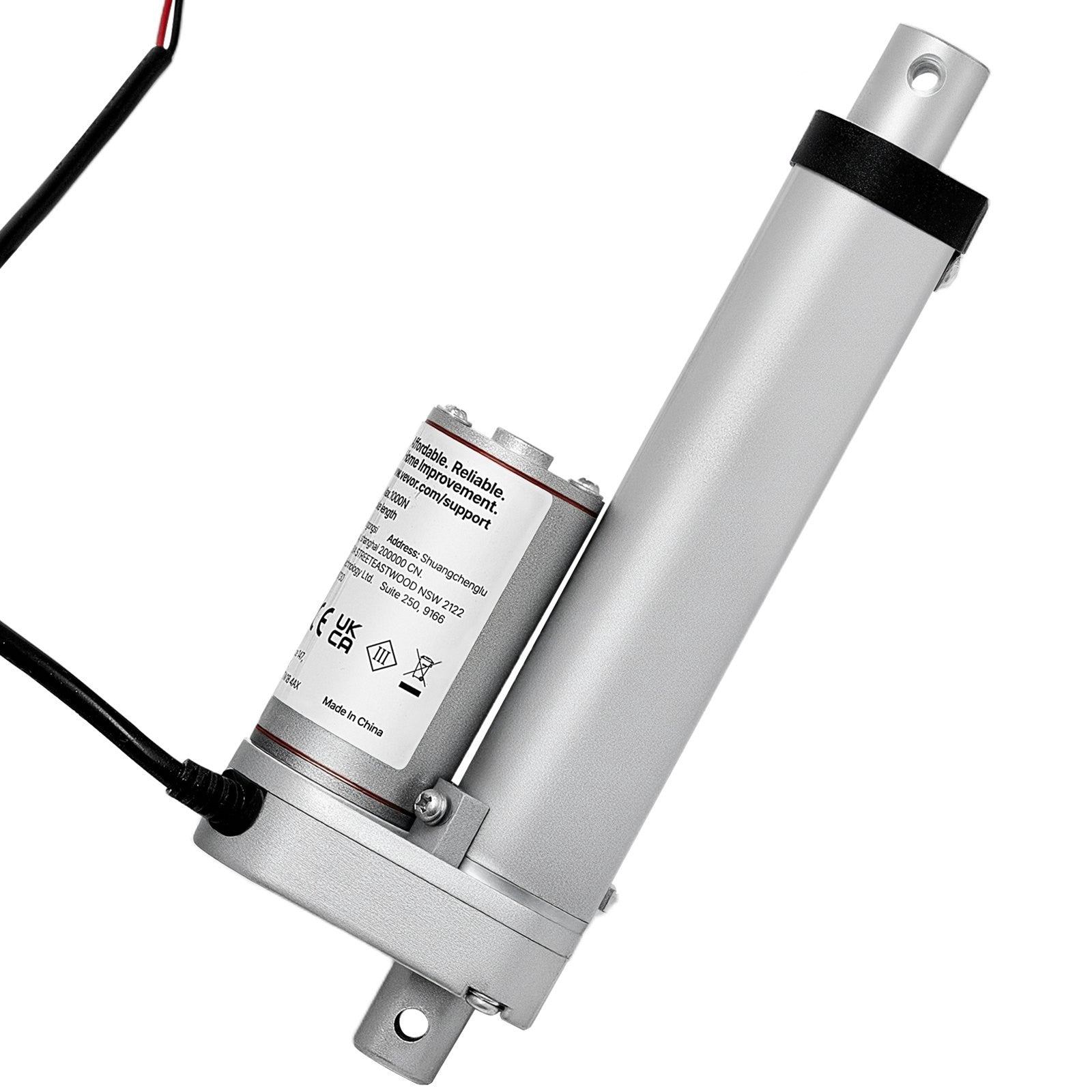

12V Linear Actuator, 1000N, 4in Stroke, IP54 Bracket
12V Linear Actuator, 1000N, 4in Stroke, IP54 Bracket

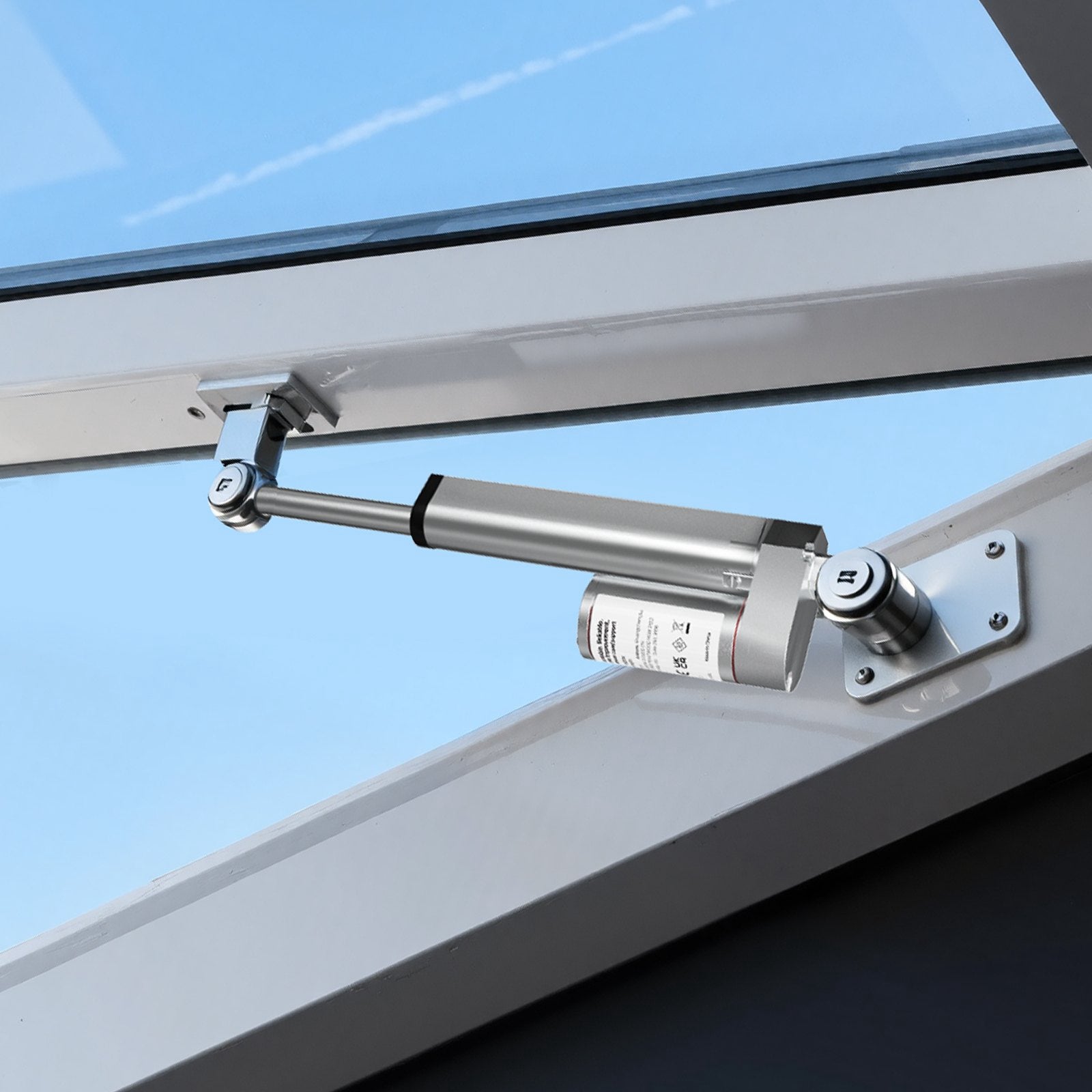

12V linear actuator delivers fast, controlled lift motion for reliable height adjustment in desks, recliners, TV lifts, and window openers.... Citește mai mult
464,00 lei 420,00 lei
Plătește în siguranță cu
- Livrare gratuită
- Retur în 30 de zile
- Plată în siguranță
Specifications
| Input voltage | DC 12V |
|---|---|
| Max load / thrust | 1000N (225 lb) |
| Stroke length | 4 in / 101.6 mm |
| Travel speed | 0.6 in/s (15 mm/s) |
| Extended length | 12 in / 304.8 mm |
| Retracted length | 8 in / 203.2 mm |
| Product dimensions | 8.5 x 3 x 1.6 in (216 x 75 x 40 mm) |
| Net weight | 2.1 lb (0.973 kg) |
| Main material | Aluminum alloy |
| IP rating | IP54 |
| Current draw | 5 A |
| Duty cycle | 25% |
| No-load noise | < 50 dB |
