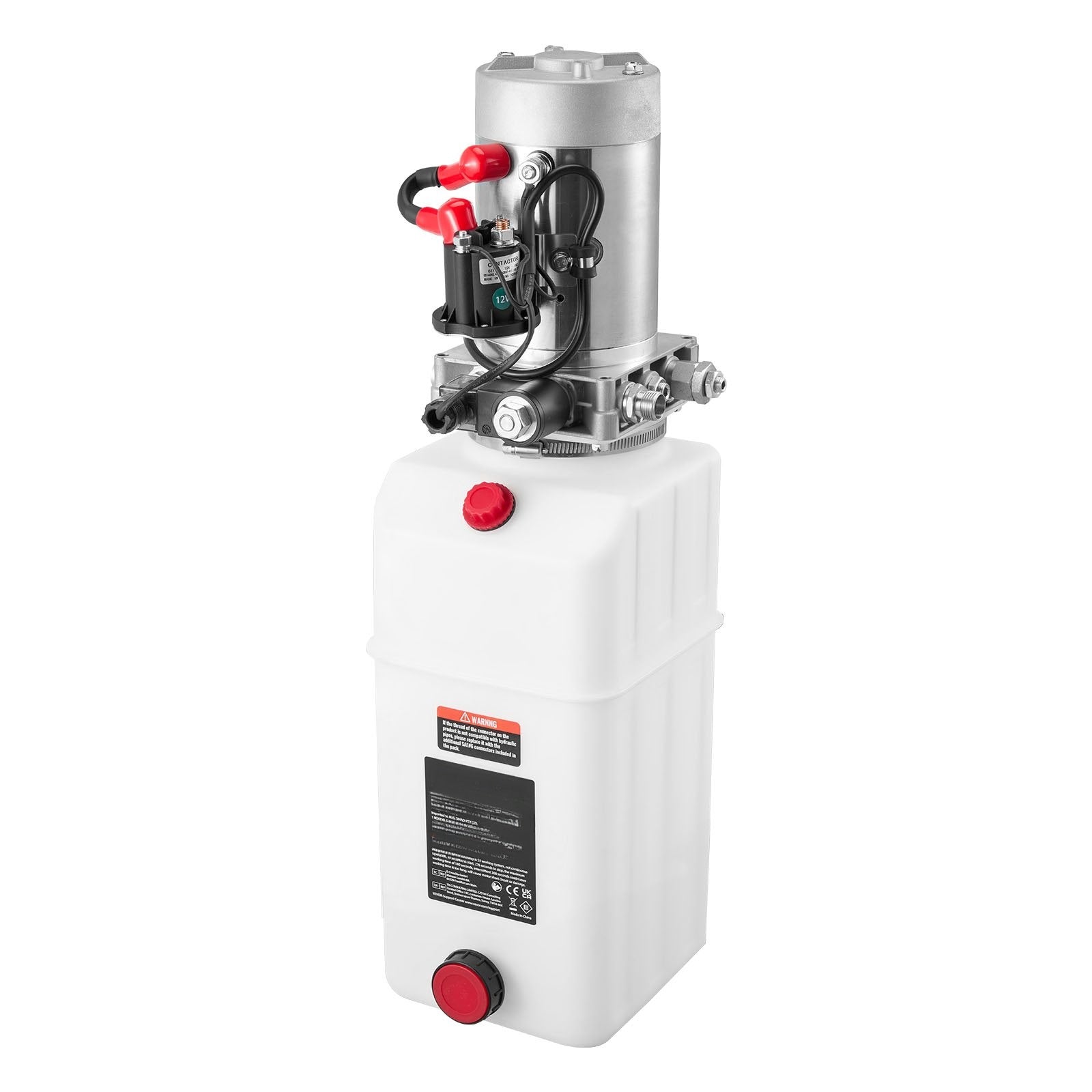

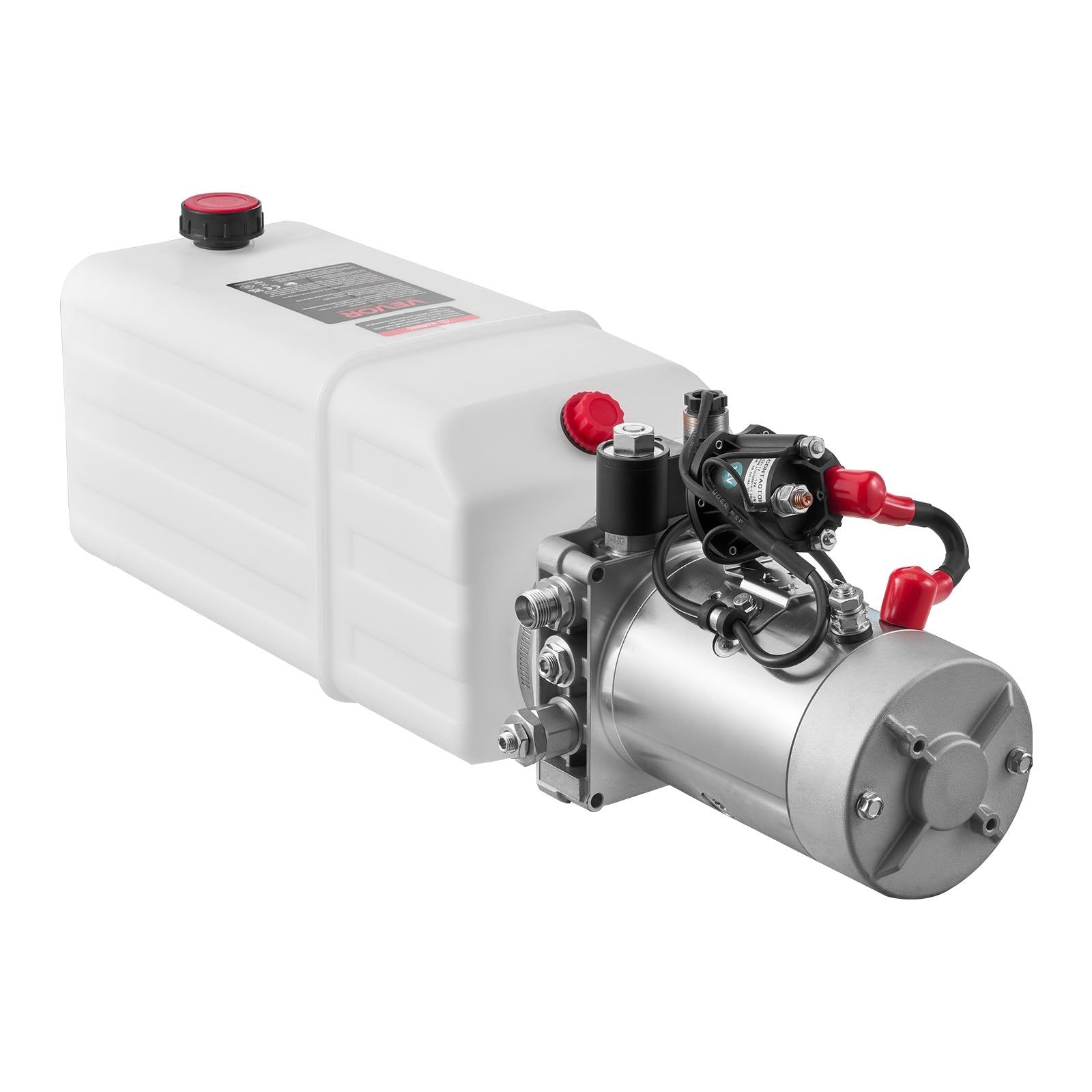

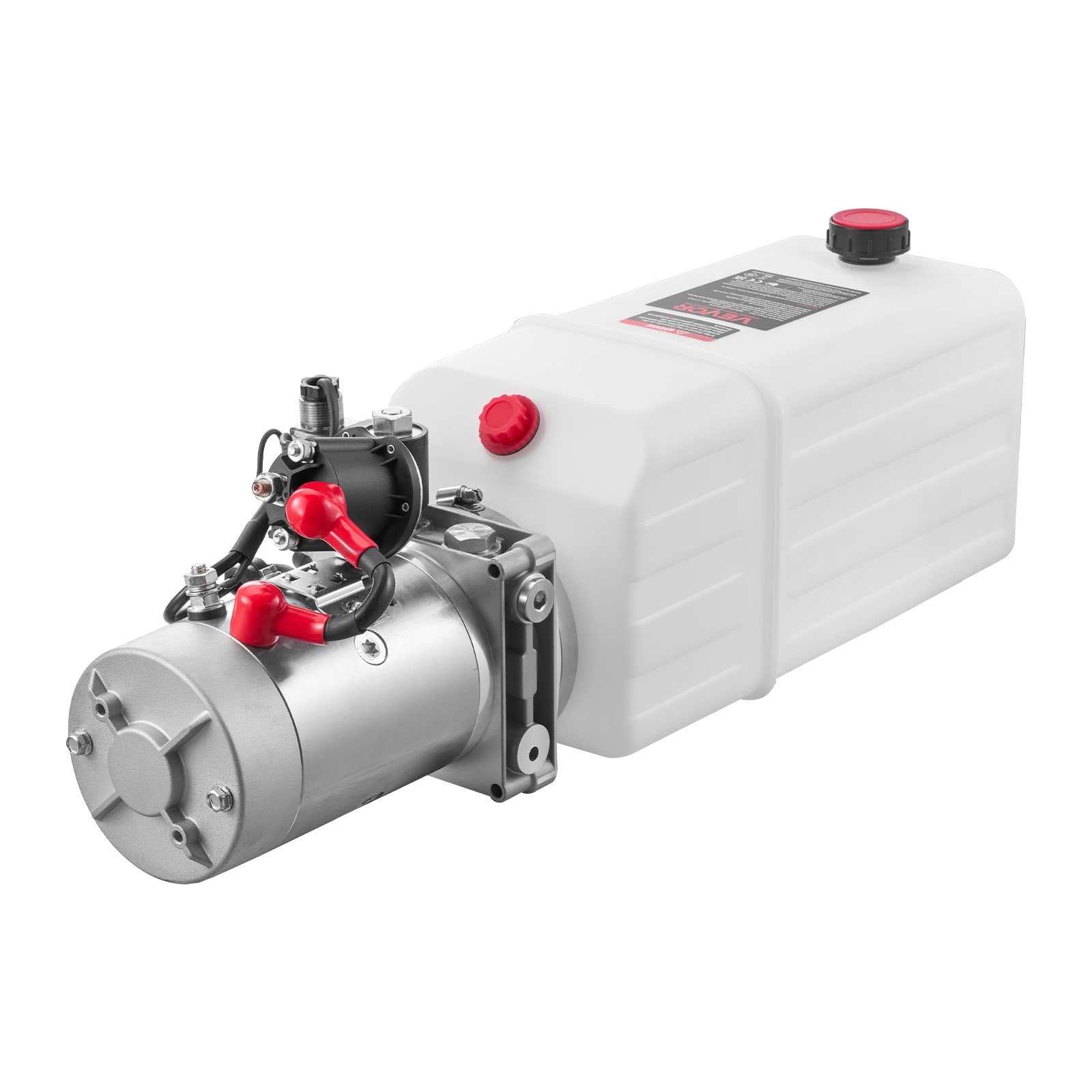

12V Hydraulic Power Unit, 6L Reservoir, Single-Acting

12V Hydraulic Power Unit, 6L Reservoir, Single-Acting

Formular de produs
Cod articol: 11379583615303

12V hydraulic power unit delivers steady lifting power for dump trailers and shop equipment with fast starts and smooth, controlled... Citește mai mult

Momentan indisponibil

1.969,00 lei  1.789,00 lei

    Plătește în siguranță cu

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Livrare gratuită
    • Retur în 30 de zile
    • Plată în siguranță

    Specifications

    TypeSingle acting (power up / gravity down)
    VoltageDC 12V
    Motor power1.6 kW
    Flow rate0.91 GPM (3.4 L/min)
    Working pressure16–20 MPa
    Max relief pressure22 MPa (approx. 3200 psi)
    Motor speed2600 r/min
    Reservoir capacity6 qt (1.5 gal)
    Ports/fittingsSAE #6
    Product size21.7 x 7.5 x 7.9 in (550 x 190 x 200 mm)
    Net weight25.2 lb (11.45 kg)

    Description

    12V hydraulic power unit delivers steady lifting power for dump trailers and shop equipment with fast starts and smooth, controlled operation. This single-acting DC power pack pairs a 1.6 kW motor with a 6-quart reservoir to support reliable raises and gravity-down lowering. Designed for quick installs, it arrives pre-assembled—add hydraulic oil, connect leads and hoses, and put your system back to work.

    Keep downtime low with a compact DC 12V hydraulic pump engineered for dependable lift and simple wiring. The single-acting design raises with hydraulic force and lowers by gravity, making it a practical replacement or upgrade for many mobile and shop applications. Confirm your voltage, port type, and pressure requirements before installation, then fill with compatible hydraulic oil and bleed air from the system for smooth performance. Grab yours today and get your equipment lifting again.

    Specifications
    • Delivers 0.91 GPM (3.4 L/min) flow for consistent lifting speed on single-acting hydraulic systems
    • Supports stable operation with a built-in relief valve to vent excess pressure and protect components

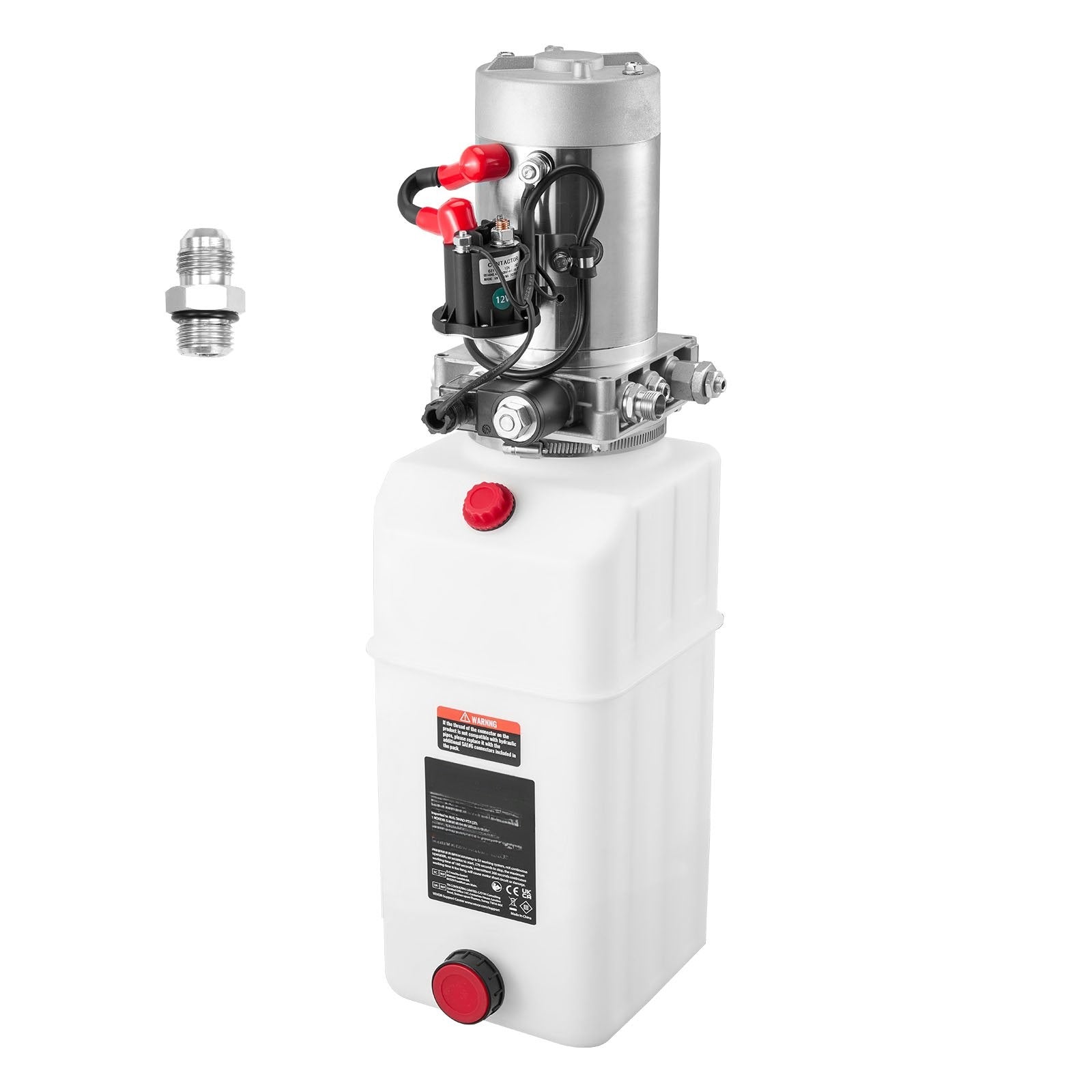

    • Fits common hydraulic lines with SAE #6 ports for faster hose connections and cleaner routing
    • Handles demanding use with leak-resistant sealing and a rugged, job-ready reservoir design
    • Powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and conveyors
