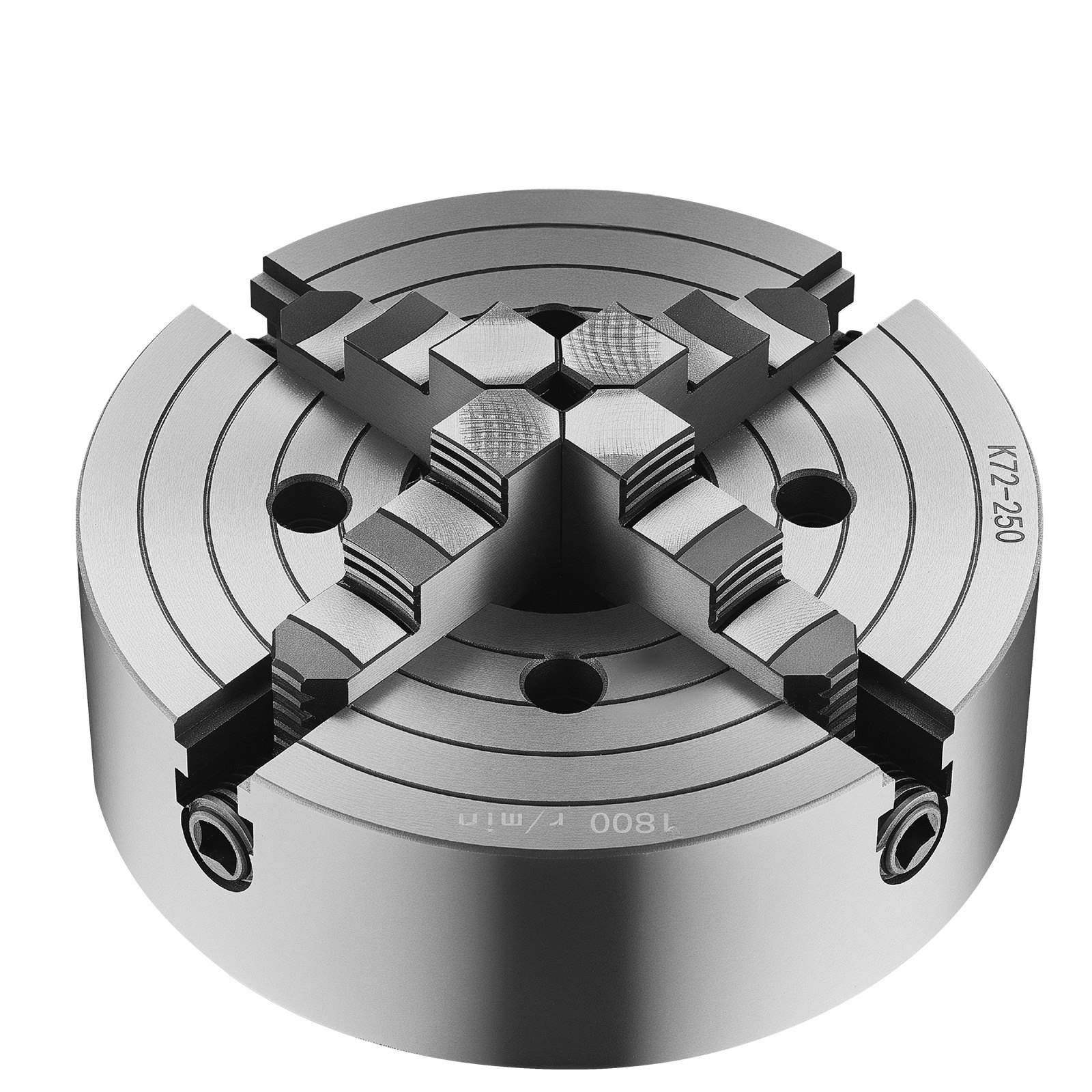

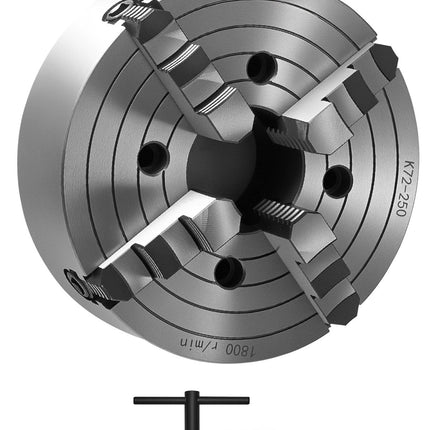

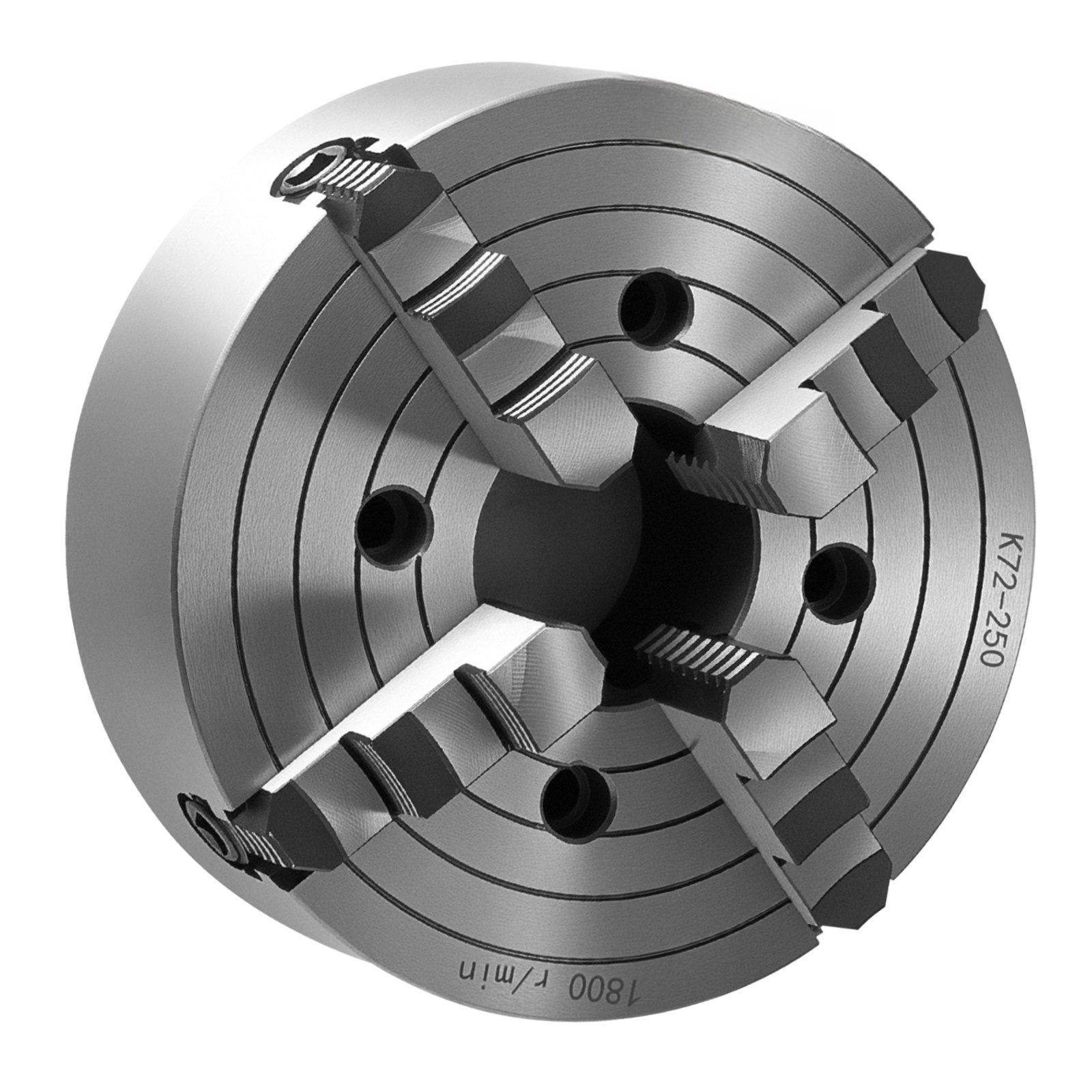

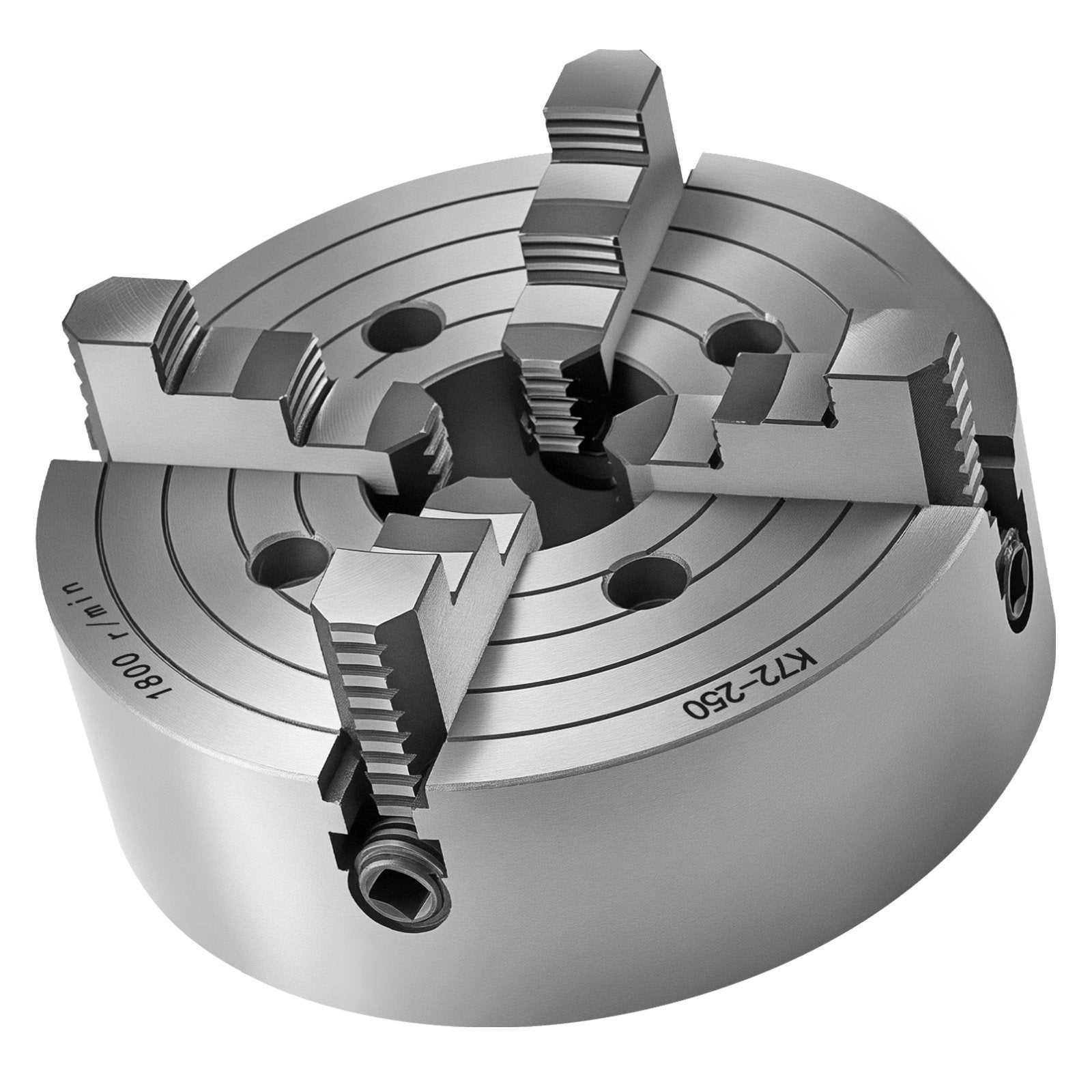

10-Inch 4-Jaw Lathe Chuck, Self-Centering, Reversible Jaws
10-Inch 4-Jaw Lathe Chuck, Self-Centering, Reversible Jaws
4-jaw lathe chuck delivers strong, stable clamping for accurate turning on wood and metal lathes. The 10 in (250 mm)... Citește mai mult
1.892,00 lei 1.717,00 lei
Plătește în siguranță cu
- Livrare gratuită
- Retur în 30 de zile
- Plată în siguranță
Specifications
| Type | 4-jaw self-centering lathe chuck with reversible jaws |
|---|---|
| Outer diameter | 10 in / 250 mm |
| Inner diameter | 3.15 in / 80 mm |
| Dimensions | φ9.84 × 4.72 in / φ250 × 120 mm |
| Internal jaw clamping range | 0.6–9.84 in / 15–250 mm |
| External jaw clamping range | 3.15–9.84 in / 80–250 mm |
| Material | HT300 cast iron |
| Jaw hardness | ≥53 HRC; scroll plate hardness: ≥45 HRC |
| Net weight | 44.42 lb / 20.15 kg |

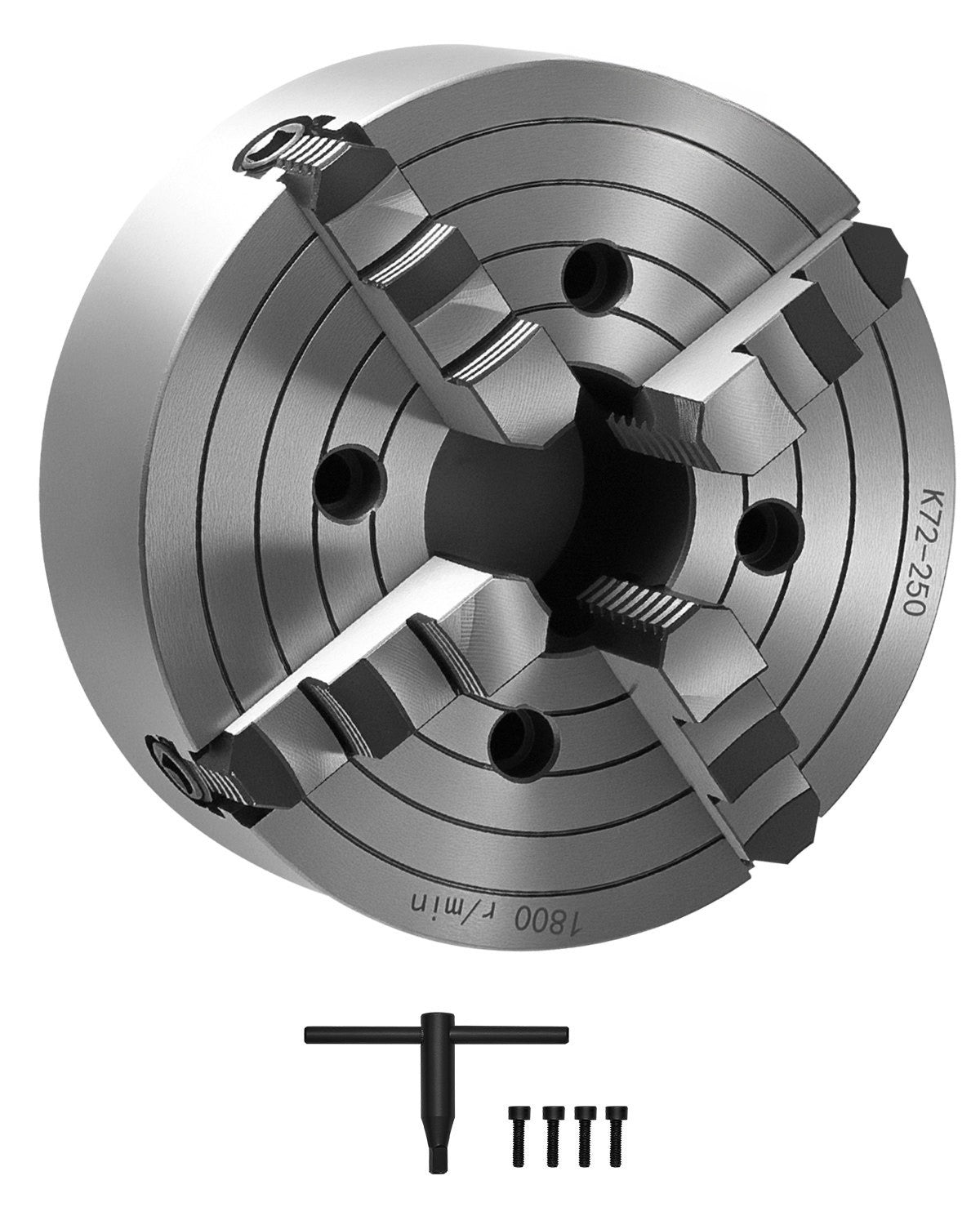

| In the box | T-key, fixing screws, reversible jaws |
