Linear Actuator 12V, 300mm Stroke, 6000N, IP44

Linear Actuator 12V, 300mm Stroke, 6000N, IP44

Product form
Item number: 11369108635975

12V linear actuator 6000N delivers high-force push/pull motion for reliable lifting, tilting, and automation where manual adjustment slows you down.... Read more

Currently unavailable

578,00 lei  523,00 lei

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Rated voltageDC 12V
    Max force6000N / 1320 lbf
    Stroke length12 in / 300 mm
    Travel speed0.19 in/s / 5 mm/s
    Retracted length20.07 in / 510 mm
    Extended length32.07 in / 810 mm
    Rated current<8A
    Duty cycle10%
    Noise level≤50 dB
    Protection ratingIP44
    Main materialAluminum alloy
    Product dimensions20.07 × 3.14 × 5.74 in / 510 × 80 × 146 mm
    Net weight5.11 lb / 2.32 kg (including accessories)

    Description

    12V linear actuator 6000N delivers high-force push/pull motion for reliable lifting, tilting, and automation where manual adjustment slows you down. Built with an aluminum-alloy body and all-metal transmission, it’s designed for demanding equipment, furniture mechanisms, and industrial projects. IP44-rated protection helps it handle dusty areas and light splashes, while low noise (≤50 dB) keeps operation suitable for indoor setups.

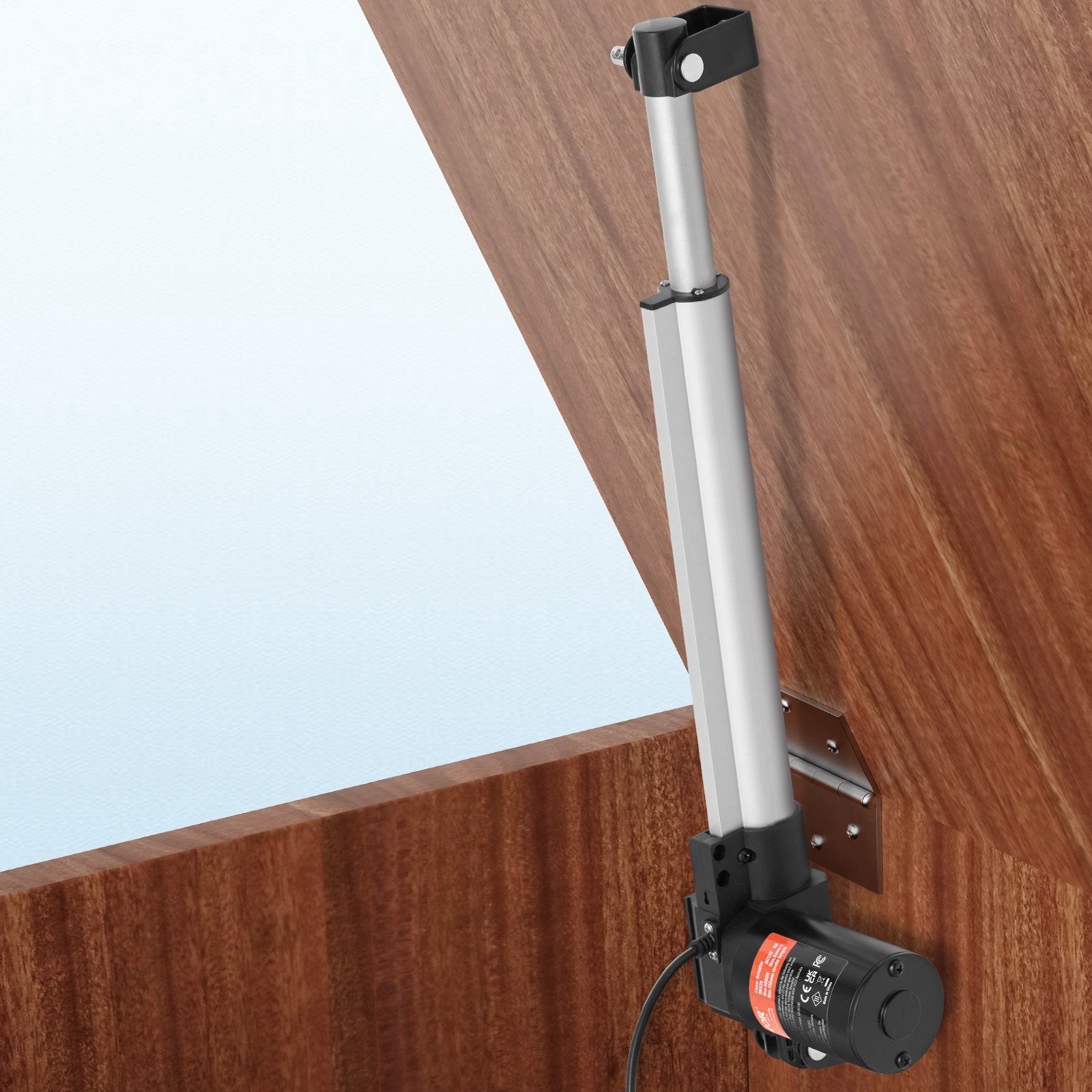

    Use this actuator to automate hatches, lids, tool cabinets, adjustable furniture, equipment guards, and custom mechanical projects where consistent linear movement matters. The reinforced structure and metal gearing are built for repeat cycles under load, helping reduce wobble and downtime compared with lighter actuators. Confirm your available mounting space using the retracted and extended lengths, and size your power supply to match the current requirements. Grab yours today and start turning manual adjustments into push-button motion.

    Specifications
    • Delivers 6000N (1320 lbf) actuation force for heavy-duty lifting and linear motion control
    • Moves at 5 mm/s (0.19 in/s) for controlled, steady travel on automation and adjustment tasks
    • Handles dusty/light-splash environments with IP44 protection (prevent water entering motor)
    • Runs quietly at ≤50 dB to suit furniture lifts, enclosures, and home workshop builds
    • Supports 12V DC systems with <8A draw and 10% duty cycle for predictable operation
