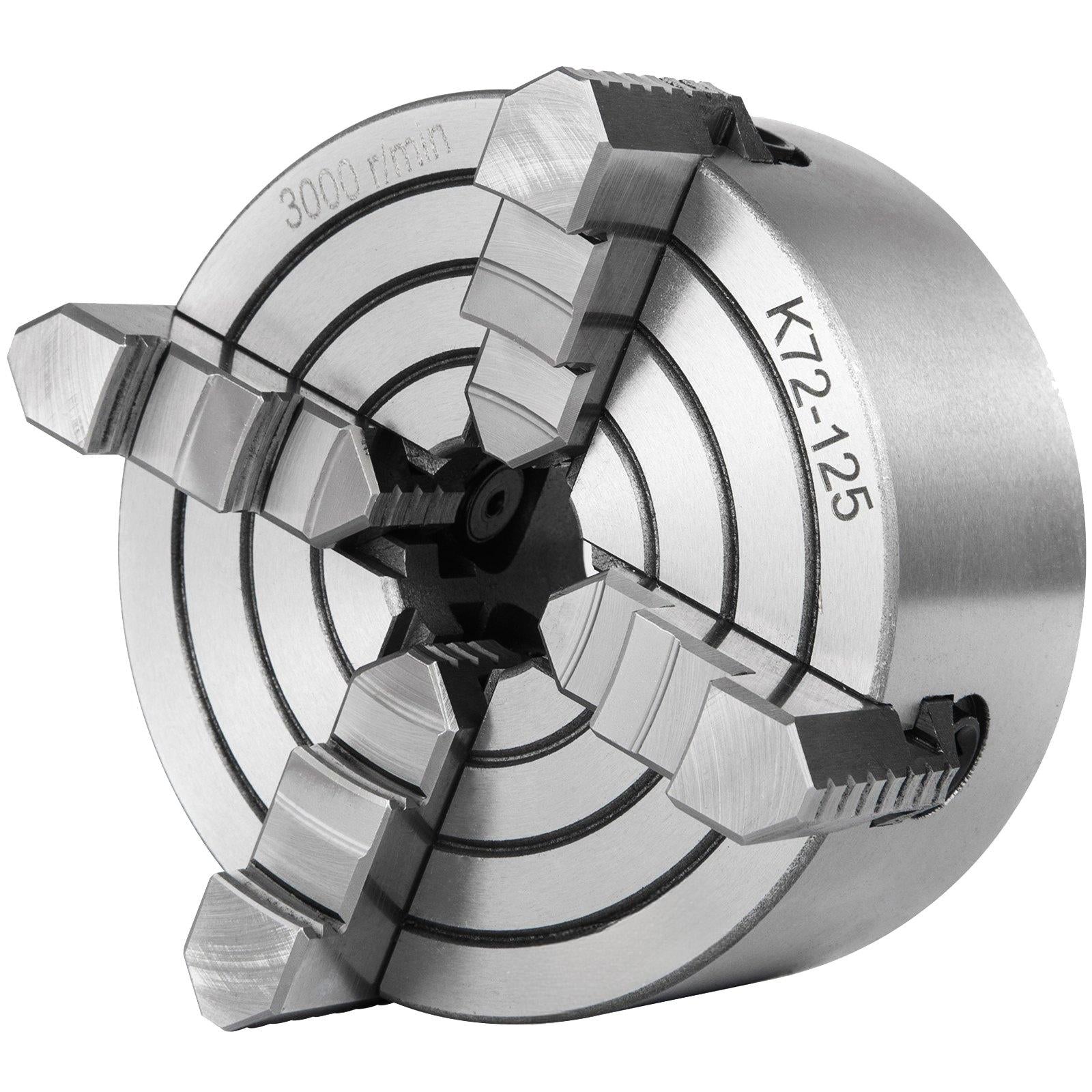

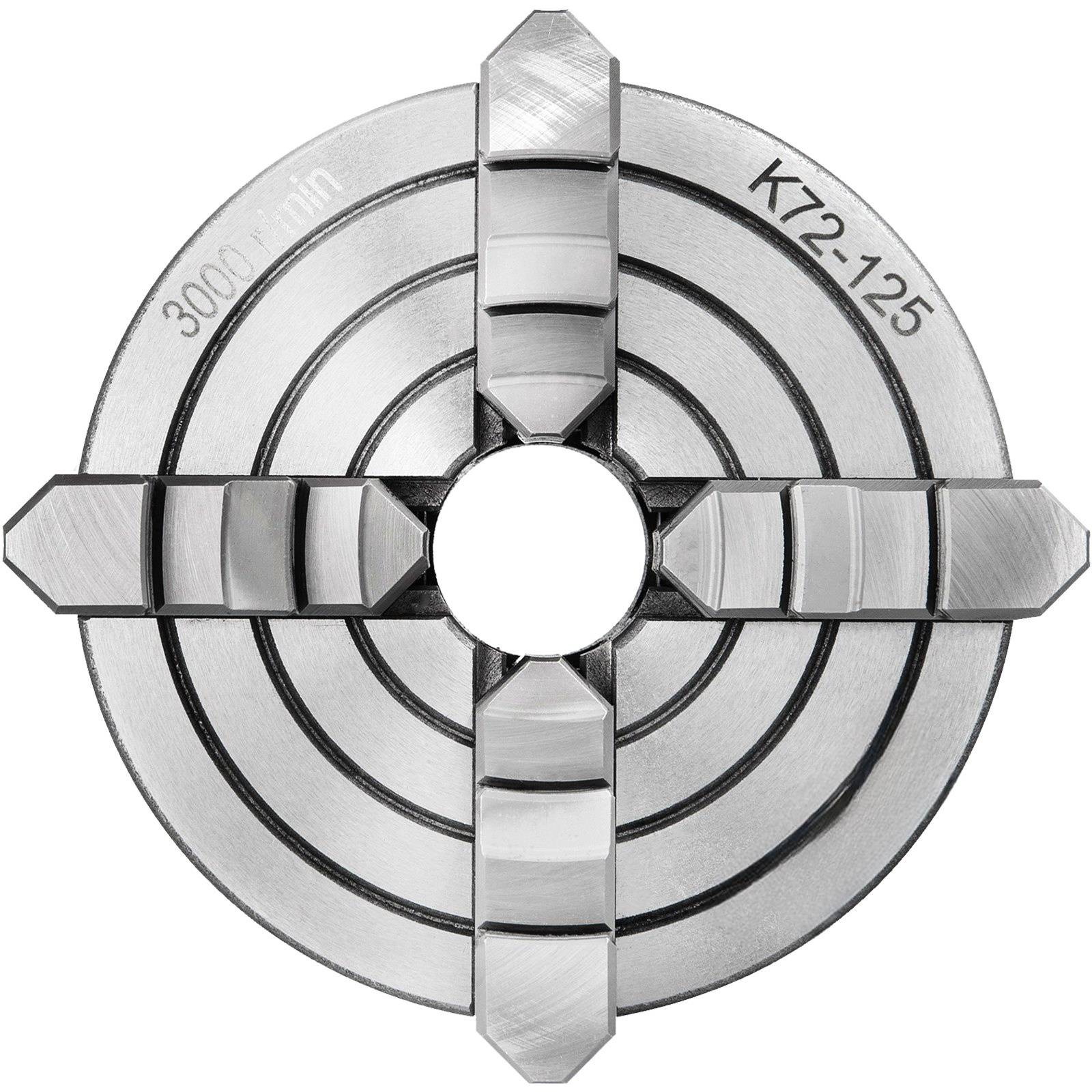

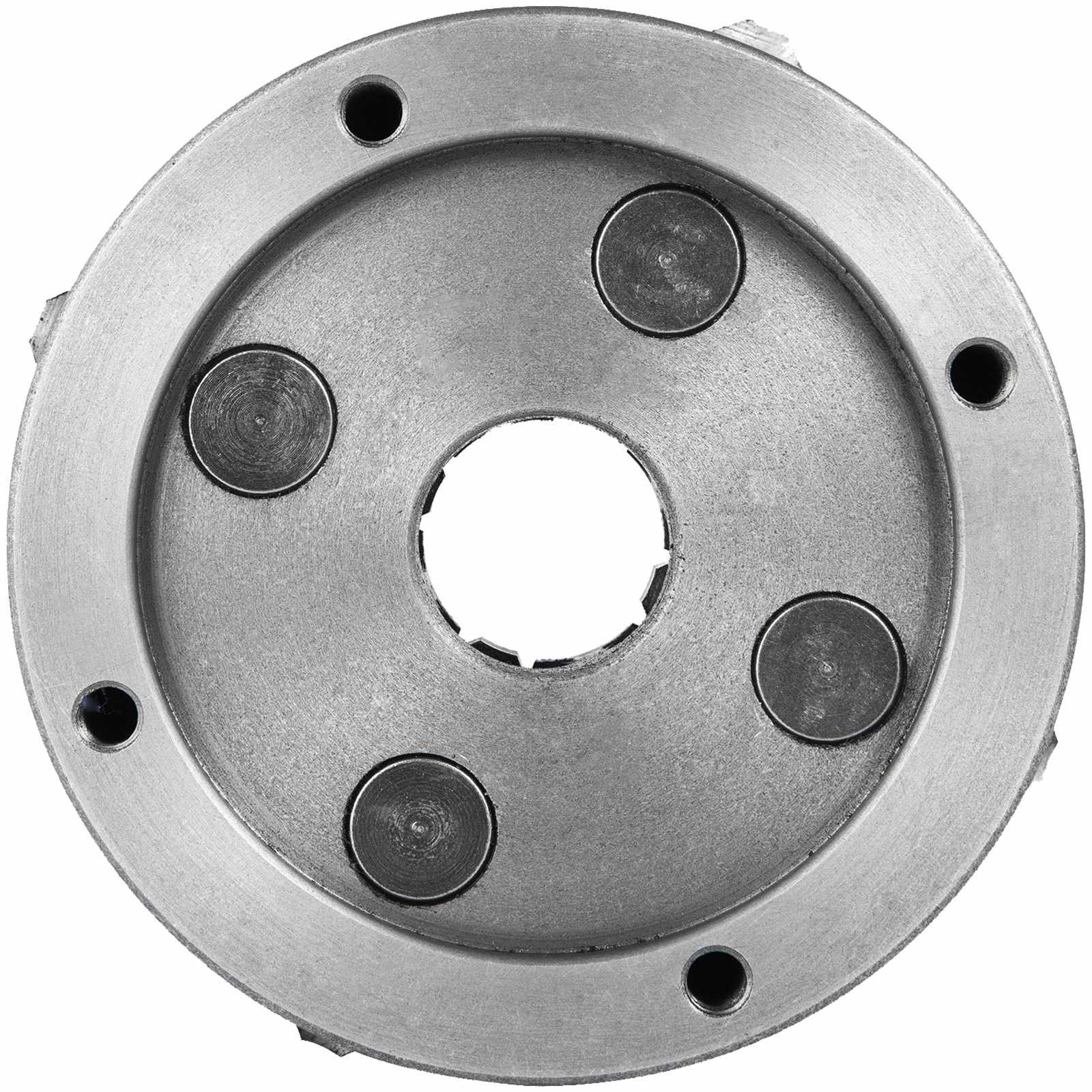

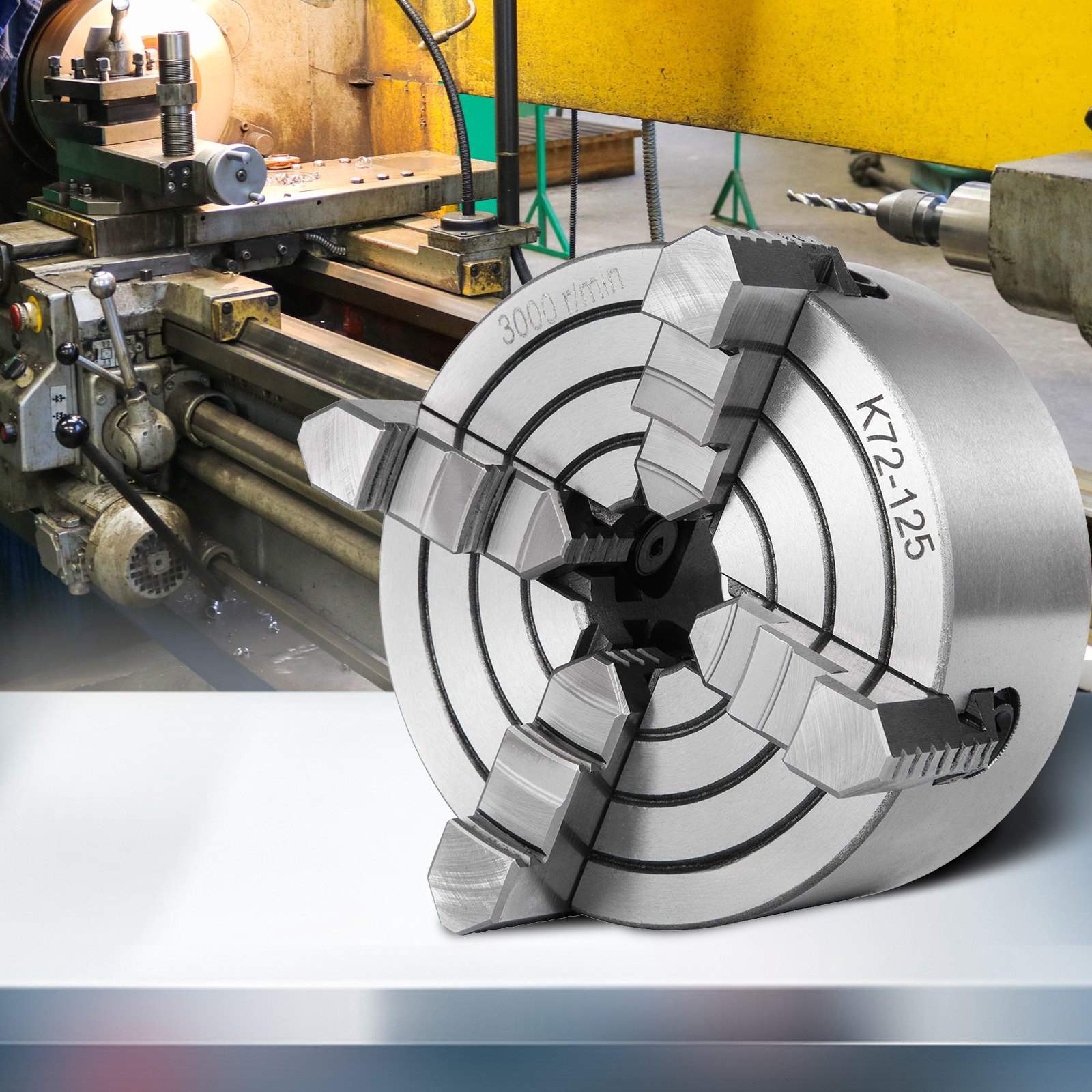

4-Jaw Lathe Chuck, Independent Reversible Jaws, 125mm

4-Jaw Lathe Chuck, Independent Reversible Jaws, 125mm

Product form
Item number: 11368447770951

4 jaw independent lathe chuck grips irregular stock with precise, adjustable jaw control for centered turning and safer machining. This... Read more

Currently unavailable

832,00 lei  756,00 lei

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Chuck diameter125 mm (4.92") / 5 inch
    Chuck body materialCast iron
    Jaws material40CR steel
    Pinions material20CR steel
    Bevel gear material40CR steel
    Tolerance≤0.07 mm (0.003")
    Internal jaw clamping range7–57 mm (0.276"–2.244")
    External jaw clamping range48–125 mm (1.89"–4.92")
    Gross weight4.92 kg (10.84 lb)
    Package dimensions15 x 14 x 10 cm (5.9" x 5.5" x 3.93")

    Description

    4 jaw independent lathe chuck grips irregular stock with precise, adjustable jaw control for centered turning and safer machining. This 125 mm (5") chuck uses a durable cast iron body with reversible jaws to switch between internal and external clamping ranges. Independent jaws help you true up square, round, or off-center workpieces, while hardened steel gears and pinions support consistent operation. Built for mini metal lathes and general metalworking setups.

    Dial in your setup faster when the workpiece isn’t perfectly round. This 4 jaw independent chuck lets you adjust each jaw separately for precise centering, intentional offset turning, and secure clamping across a wide range of diameters. Reversible jaws extend flexibility for both internal and external grip, making it a practical accessory for mini lathes, hobby machining, and general workshop metal turning. Add it to your tool lineup to handle more shapes with less fuss—grab yours today.

    Specifications
    • Delivers independent 4-jaw adjustment for truing and holding round, square, and irregular workpieces
    • Includes reversible jaws for internal clamping 7–57 mm and external clamping 48–125 mm
    • Improves accuracy with ≤0.07 mm (0.003") tolerance for controlled metal turning results

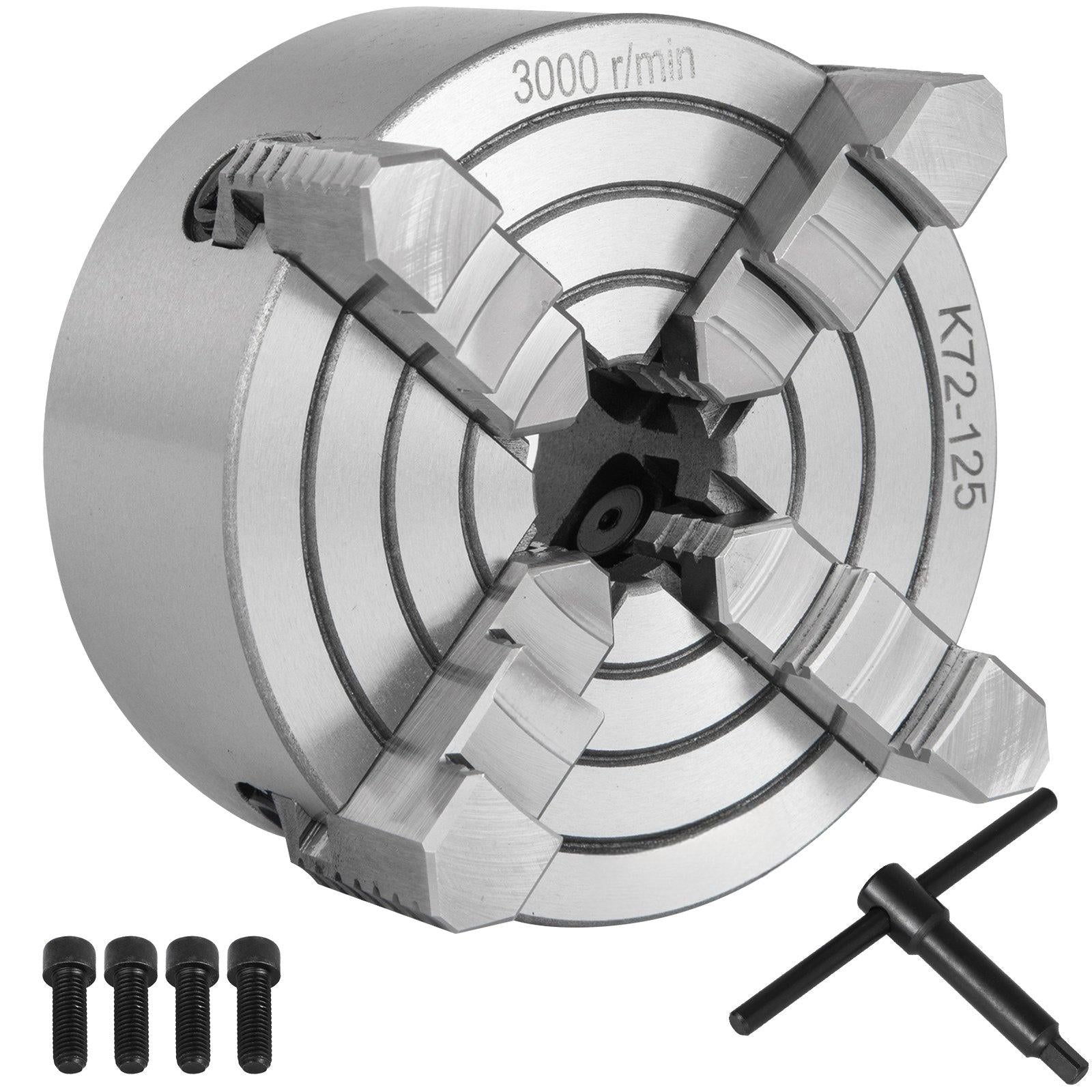

    • Reduces setup time with T-handle chuck key and smooth bevel gear engagement
    • Supports long service life with cast iron chuck body and steel jaws, pinions, and bevel gear
