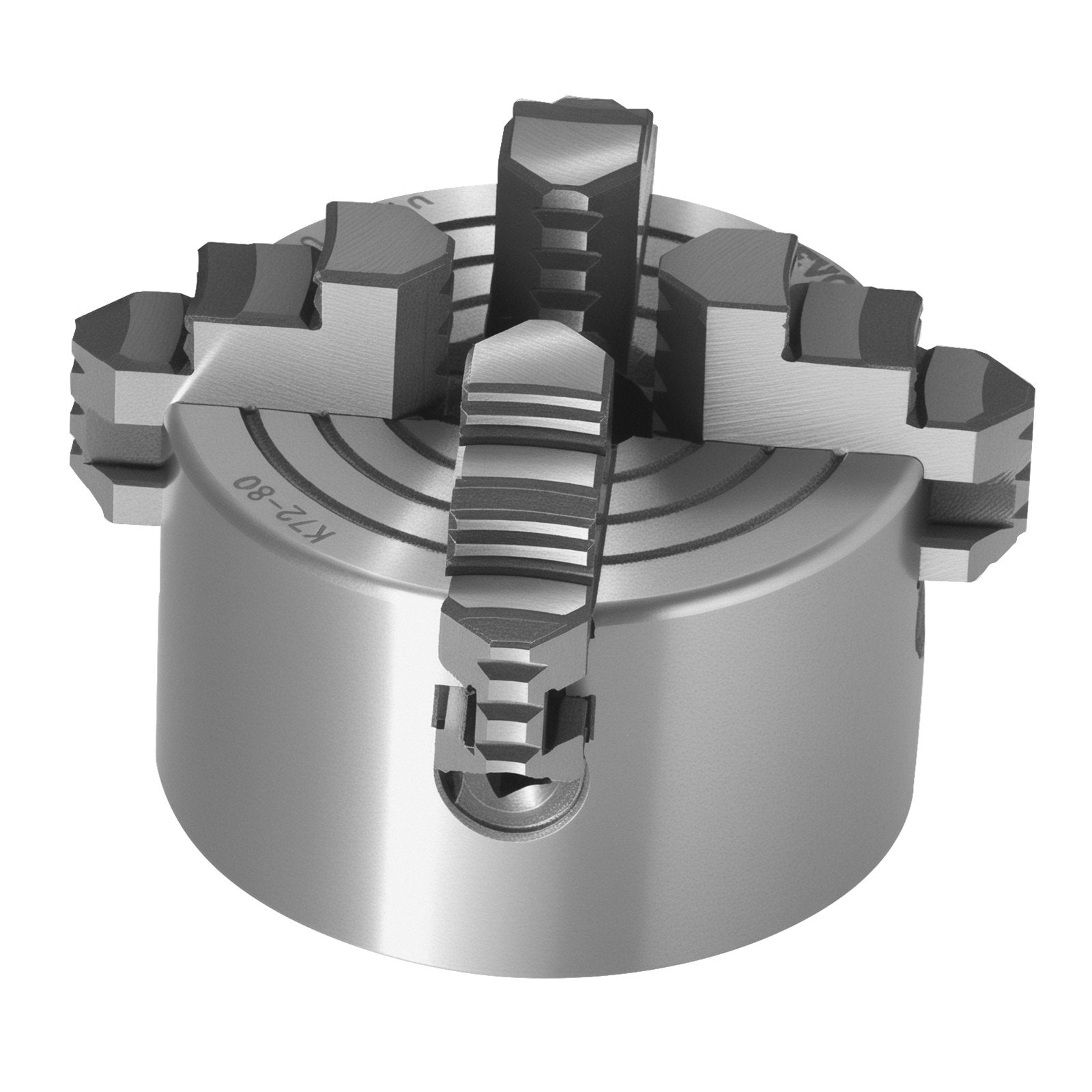

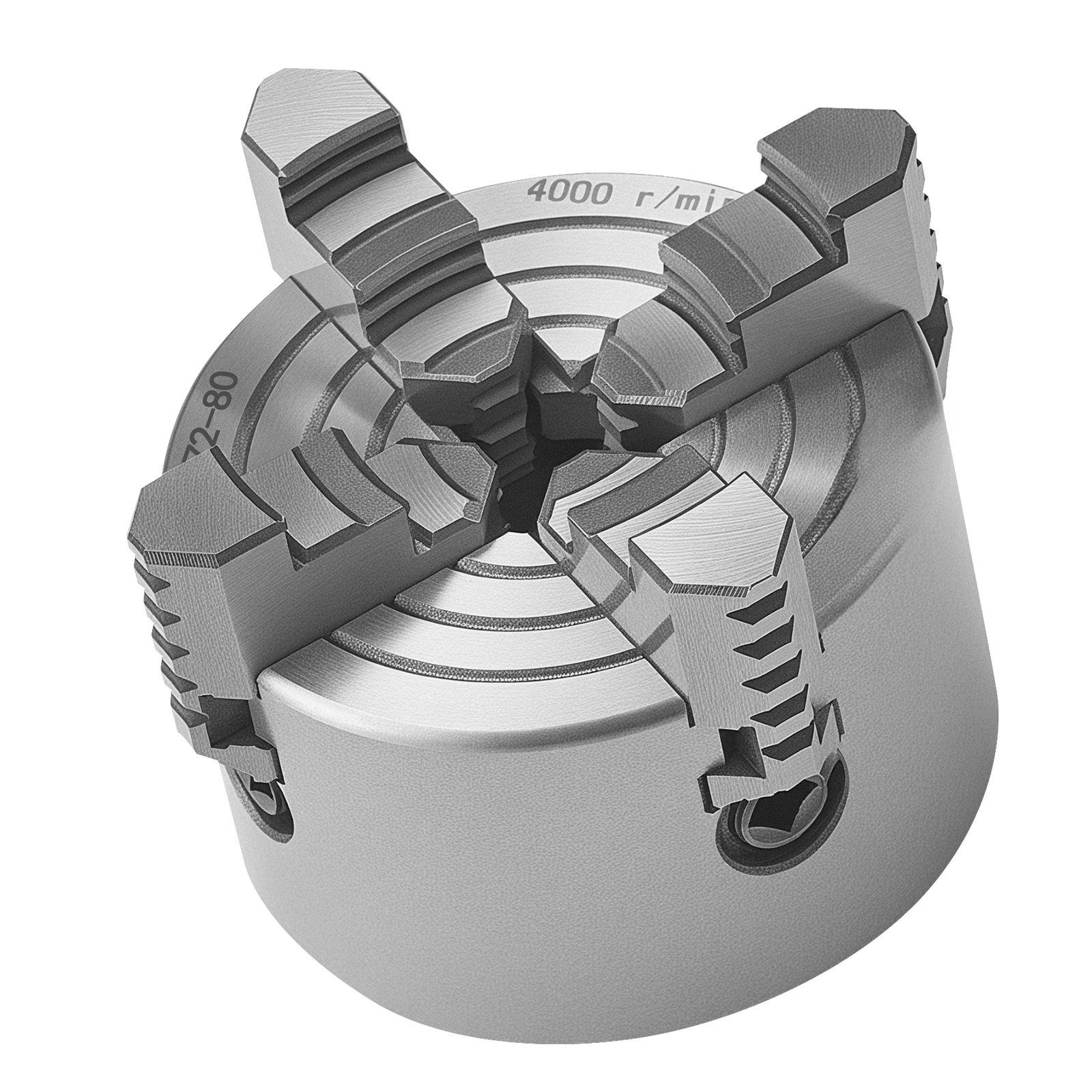

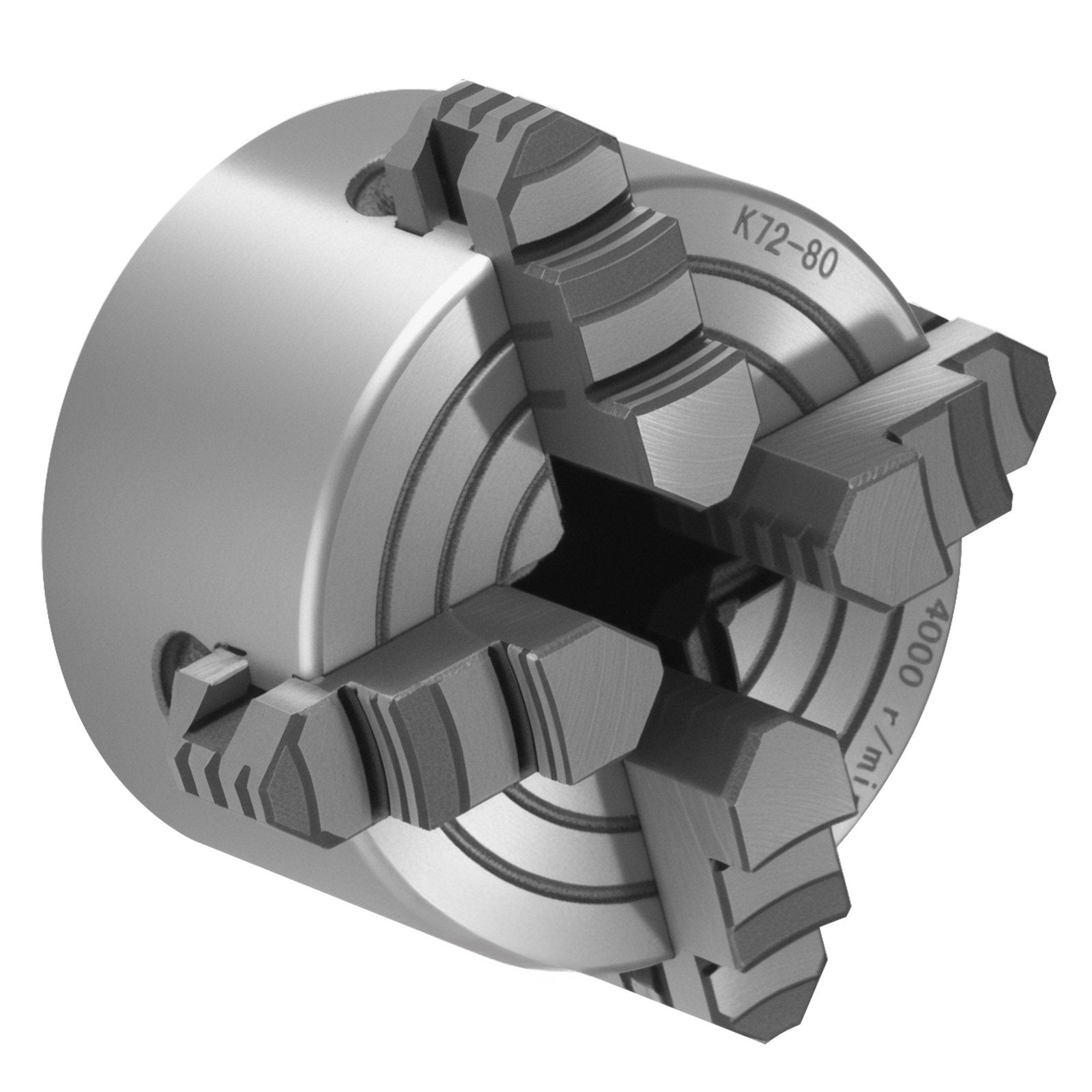

4-Jaw Lathe Chuck, 3 Inch 80 mm, Independent, Reversible Jaws

4-Jaw Lathe Chuck, 3 Inch 80 mm, Independent, Reversible Jaws

Product form
Item number: 11370503143751

4-jaw lathe chuck delivers secure, adjustable clamping for precise turning of round, square, and irregular workpieces on wood or metal... Read more

Currently unavailable

600,00 lei  546,00 lei

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Chuck type4-jaw independent, reversible jaws
    Outer diameter3 in / 80 mm
    Inner diameter0.86 in / 22 mm
    Item dimensionsφ3.15 x 2.56 in / φ80 x 65 mm
    Internal jaw clamping range0.1–3.15 in / 5–80 mm
    External jaw clamping range1.18–3.15 in / 30–80 mm
    Main materialHT300 cast iron
    Jaw hardness≥53 HRC
    Scroll plate hardness≥45 HRC
    Net weight3.86 lb / 1.75 kg

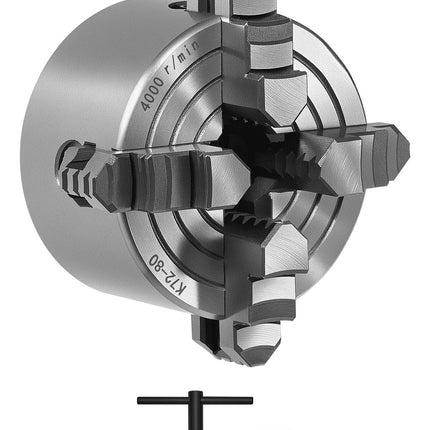

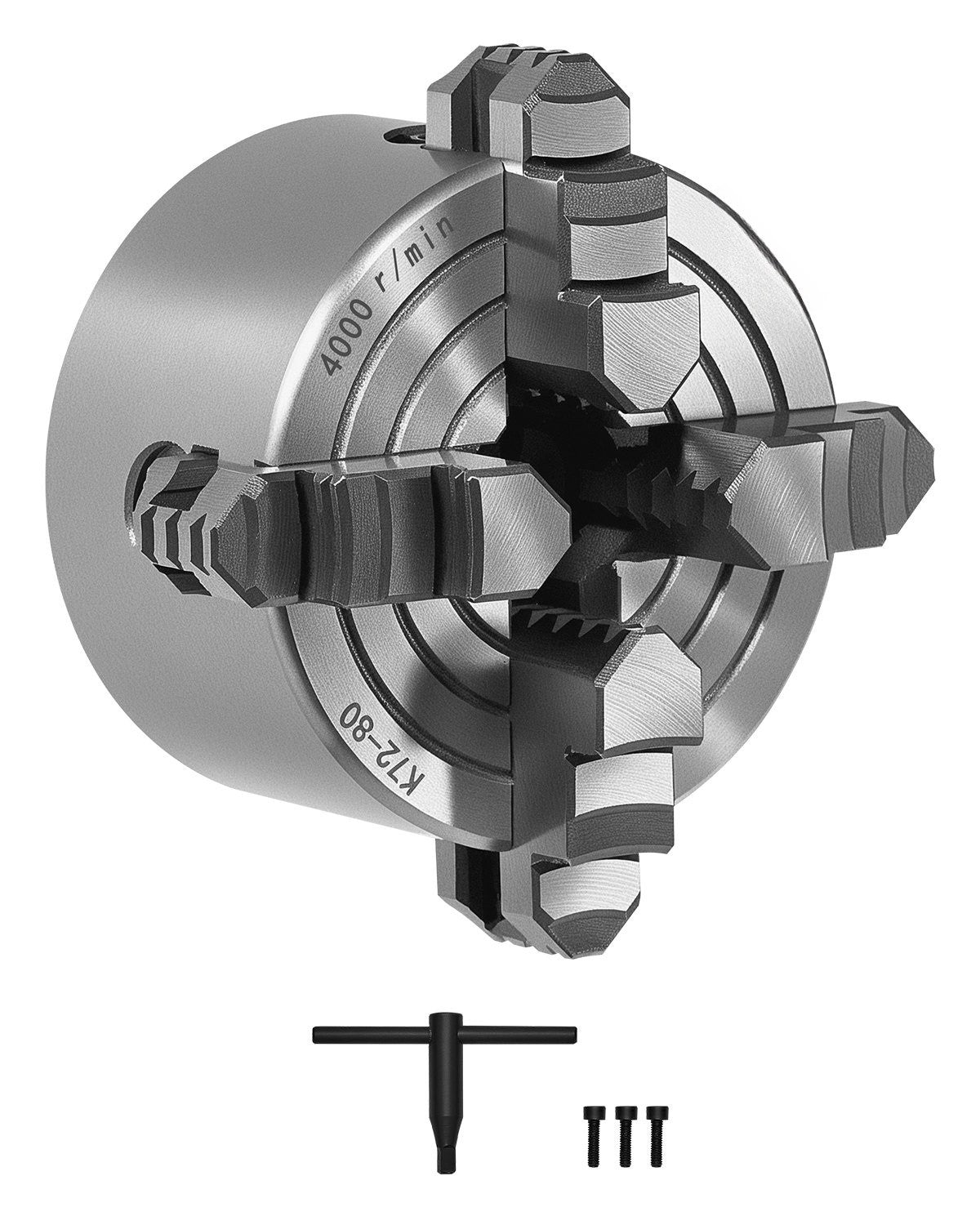

    In the boxchuck, T-key, fixing screws

    Description

    4-jaw lathe chuck delivers secure, adjustable clamping for precise turning of round, square, and irregular workpieces on wood or metal lathes. The 3 in (80 mm) independent 4-jaw design lets you center parts manually for better control, while hardened jaws and a hardened scroll plate support consistent holding power over repeated setups. Compact sizing suits small lathes and tight work areas without sacrificing grip or stability.

    Built from HT300 cast iron with heat-treated components, this chuck is designed for demanding shop use where repeatable grip and dependable alignment matter. Reversible jaws expand your options for internal and external holding, and the compact 80 mm body helps reduce interference on smaller machines. Use the correct tightening sequence to balance jaw pressure and improve run consistency on each setup. Grab yours today and upgrade your lathe workholding for more controlled, confident cuts.

    Specifications
    • Delivers independent 4-jaw adjustment to grip irregular shapes and dial in centering for accurate machining
    • Fits a 0.1–3.15 in (5–80 mm) internal clamping range for versatile workholding across common stock sizes
    • Clamps externally from 1.18–3.15 in (30–80 mm) for holding larger diameters securely
    • Includes T-key and fixing screws to speed setup and repeat adjustments with less downtime

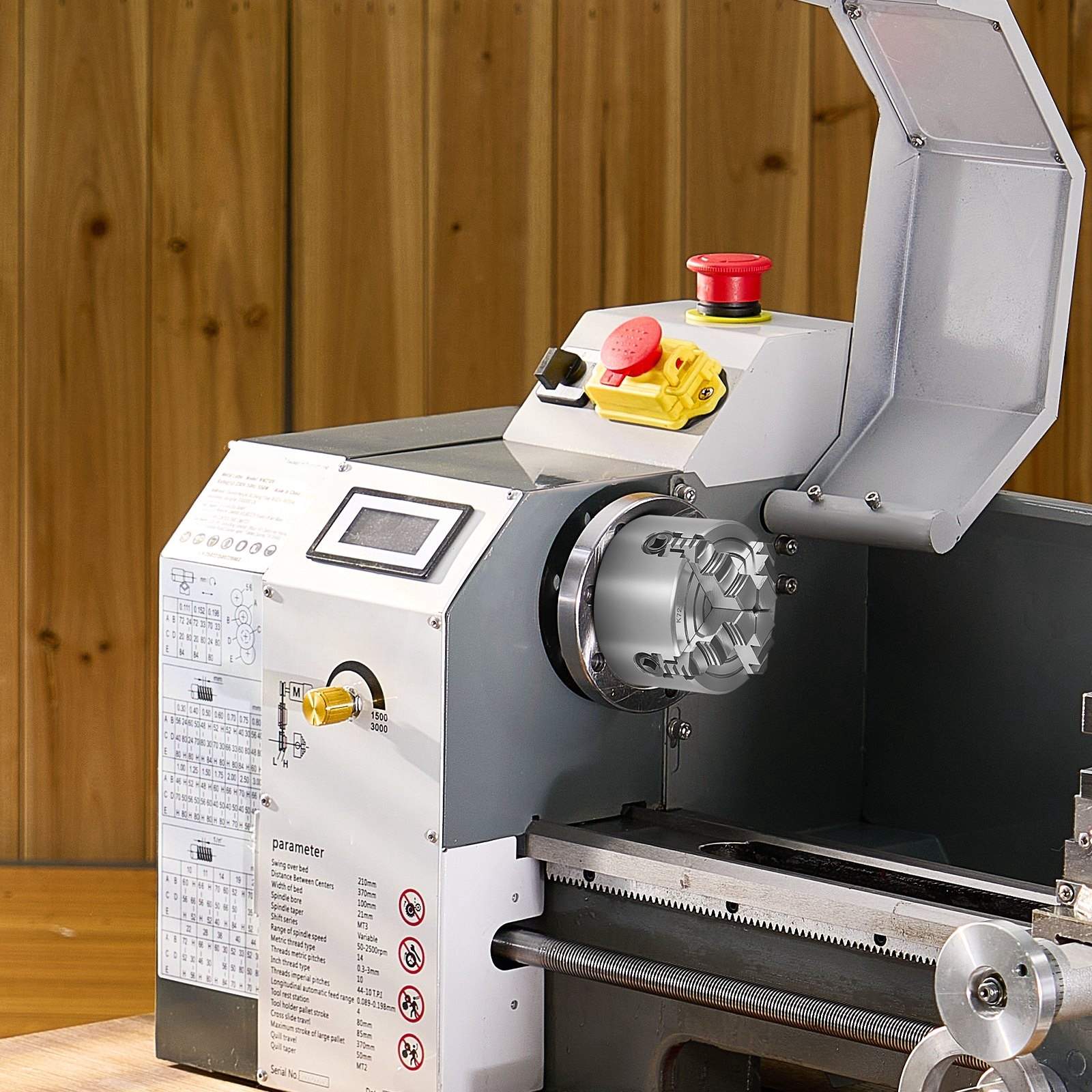

    • Supports wood and metal lathe work such as turning, drilling, and light milling setups requiring strong clamping
