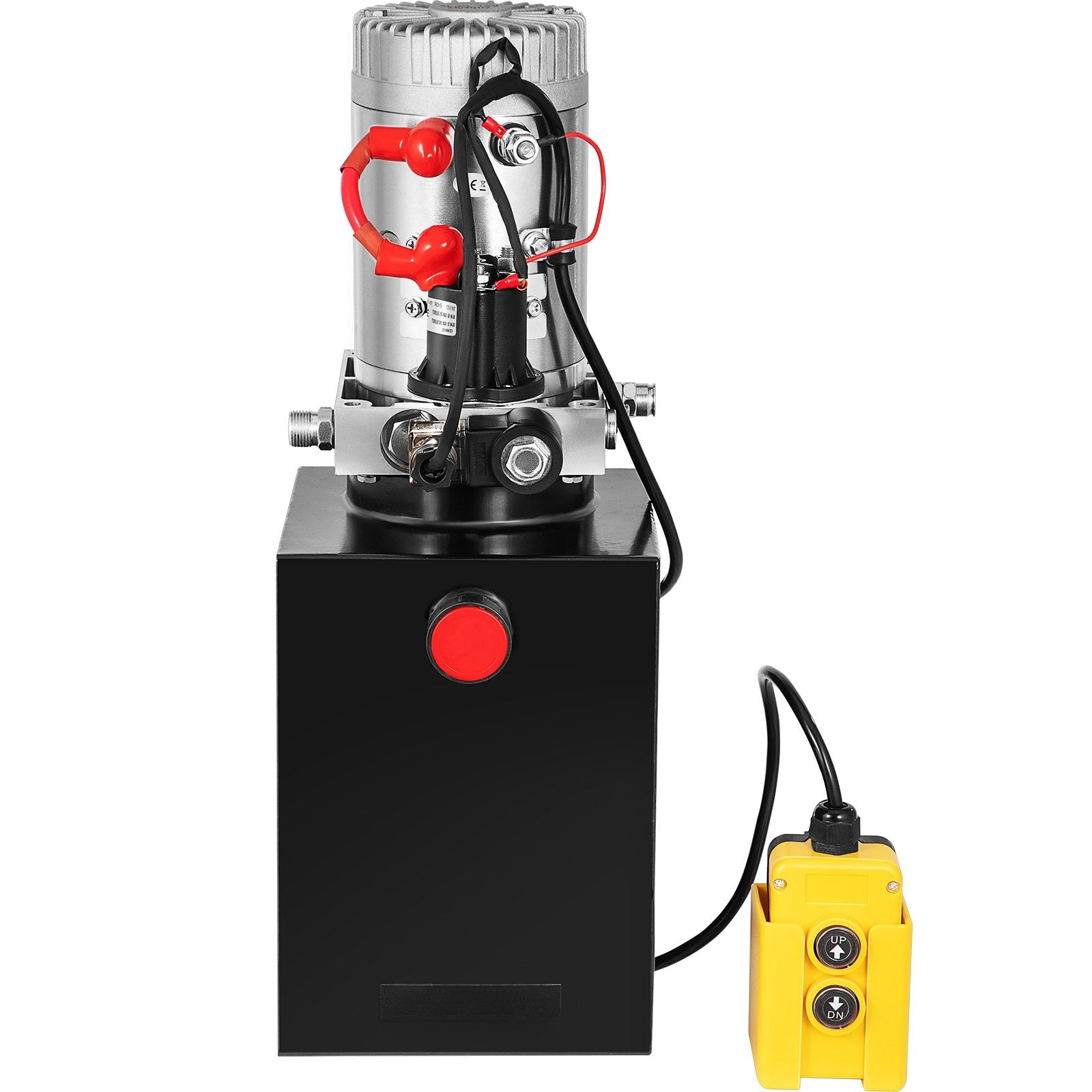

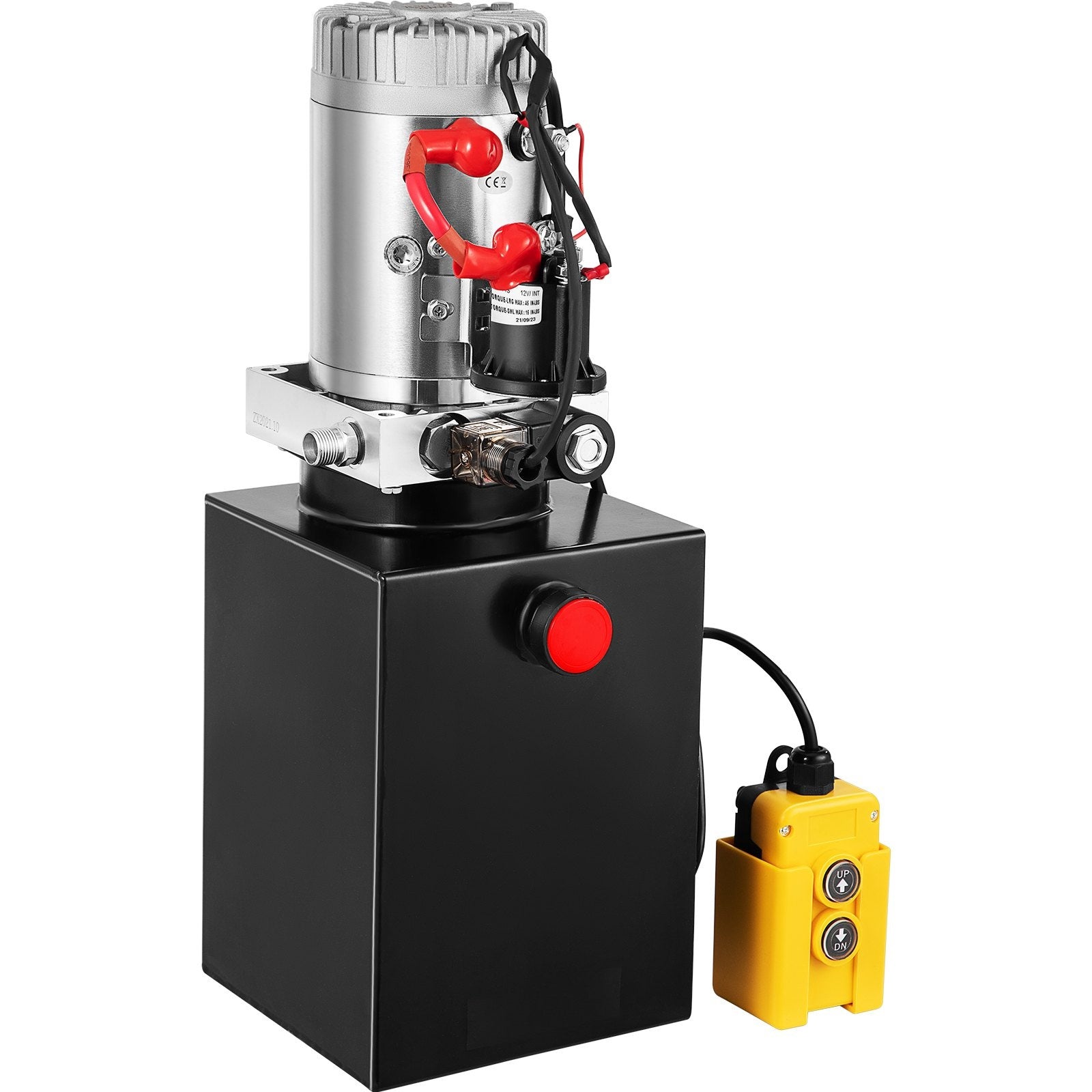

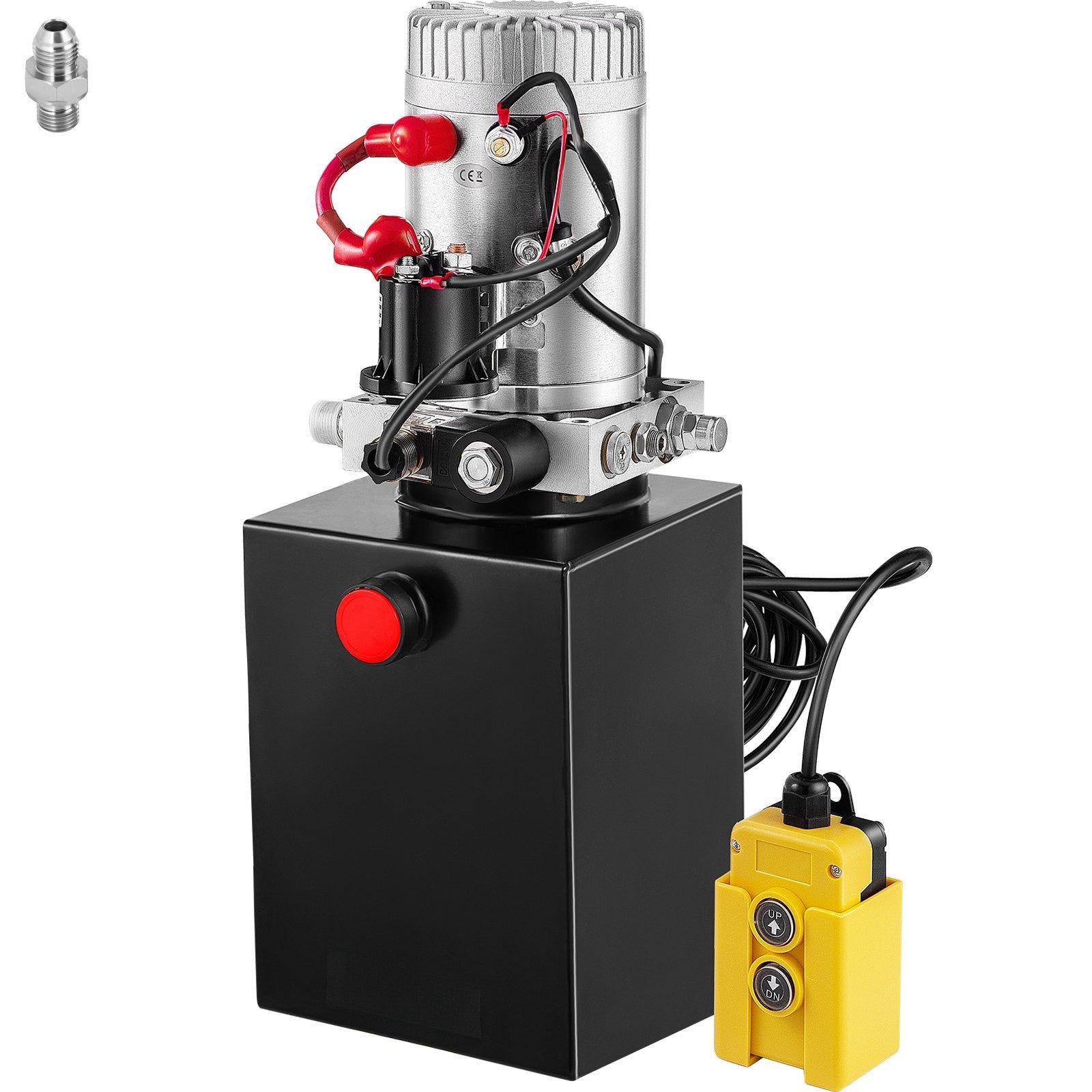

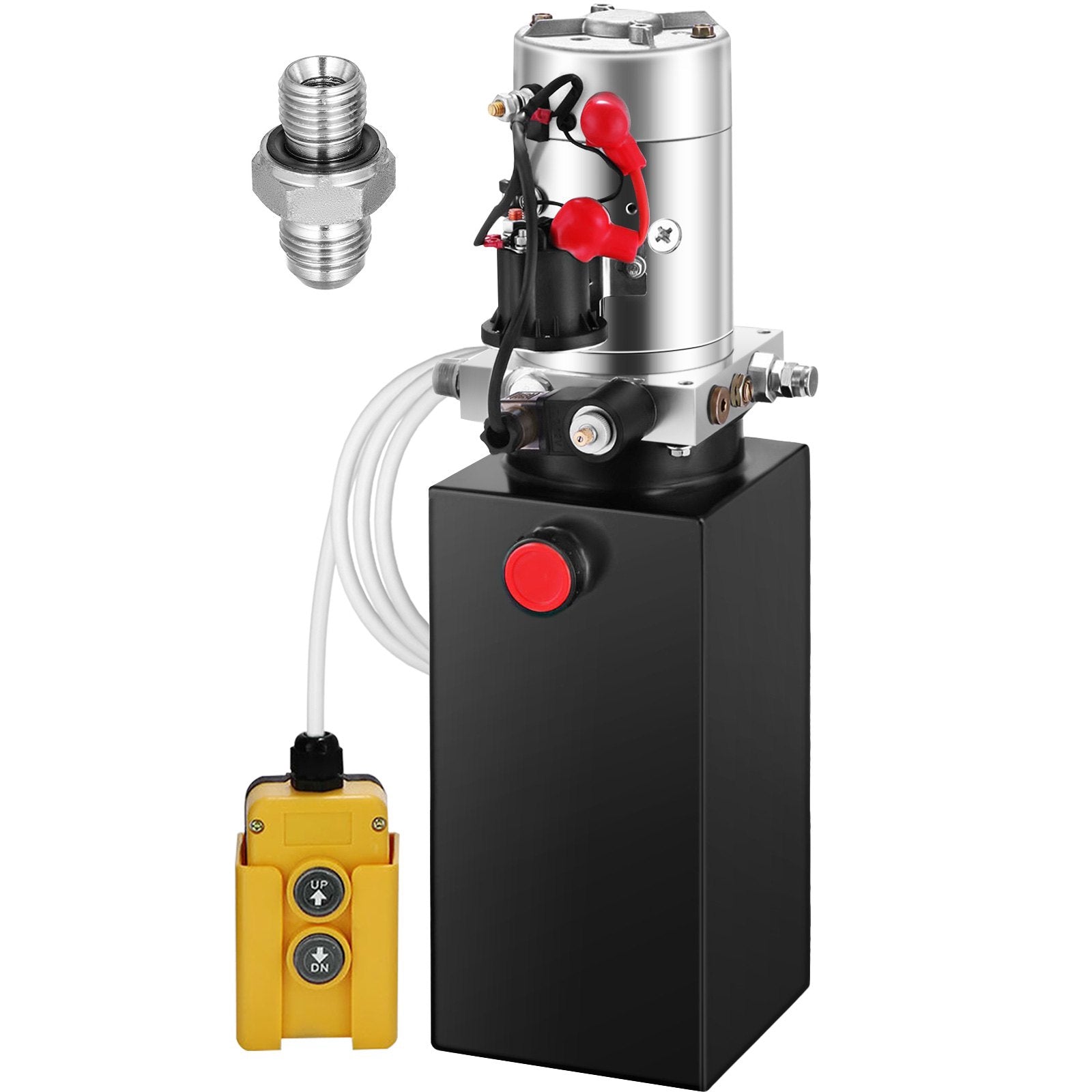

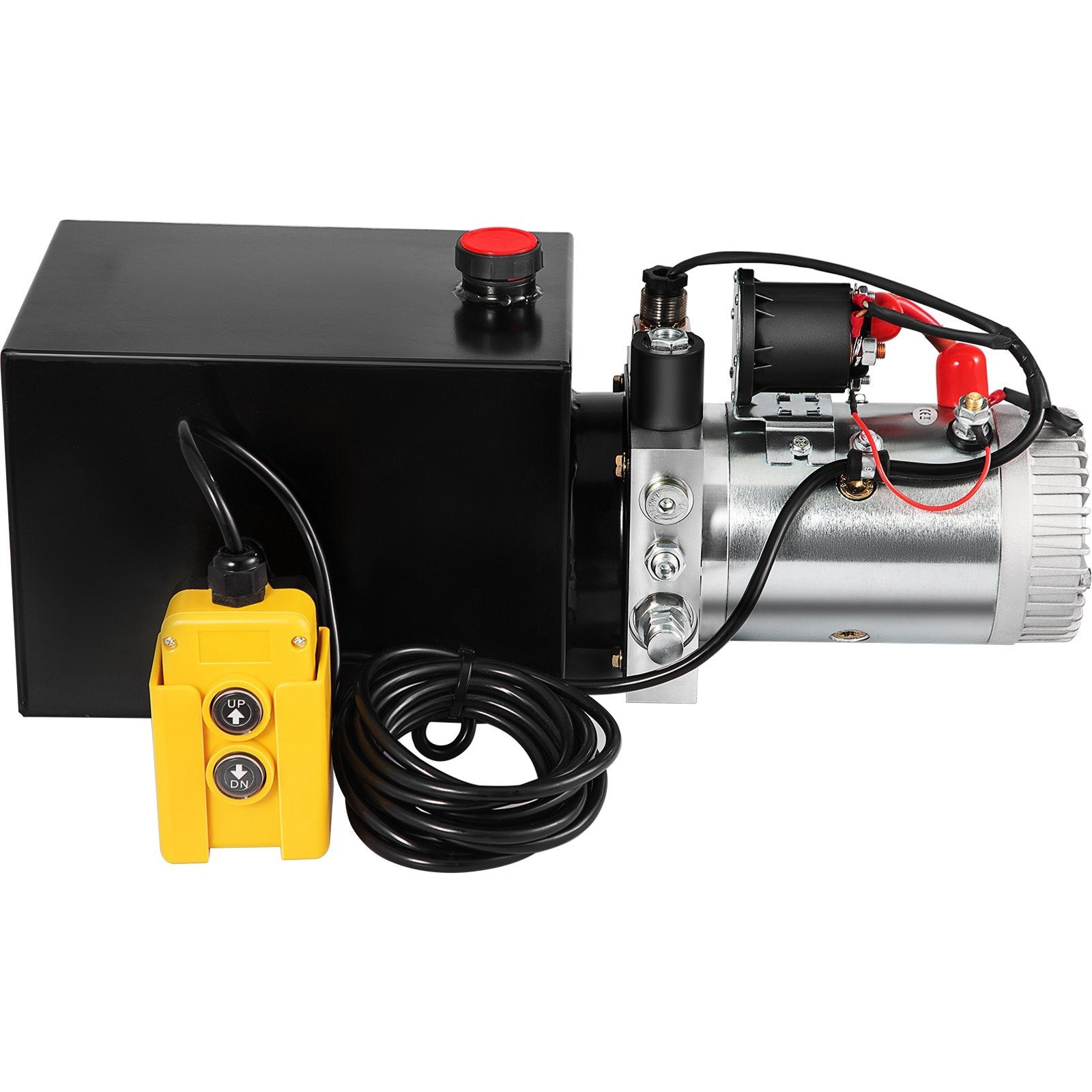

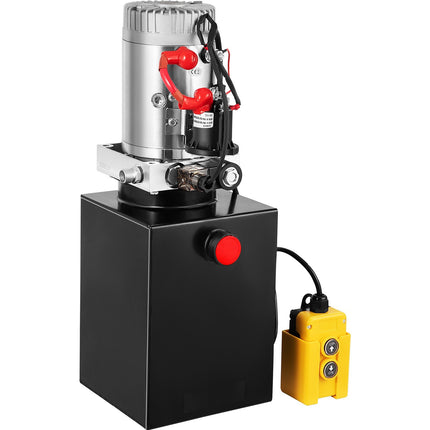

12V Hydraulic Power Unit, Single-Acting, 6 Qt 3200 PSI
12V Hydraulic Power Unit, Single-Acting, 6 Qt 3200 PSI
12V hydraulic power unit delivers fast, reliable lifting for dump trailers and other single-acting remote hydraulic systems. Built around a... Read more
2.245,00 lei 2.038,00 lei
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| System type | Single-acting (power-up / gravity-down) |
|---|---|
| Voltage | DC 12V |
| Power | 1.6 kW rated / 3.0 kW max |
| Flow | 2.0 GPM |
| Displacement | 1.1 cc/r |
| Max relief valve setting (A port) | 3200 PSI |
| Max relief valve setting (B port) | 1500 PSI |
| Connector | SAE #6 ports |
| Tank capacity | 6 L / 6 quart / 1.5 gal |
| Tank material | Metal |
| Control | Solenoid + handheld pendant |
| Pendant length | 15 ft / 4.5 m |
| Rated speed | 2850 R/min |
| Duty cycle | 3 min |
| Mounting | Horizontal or vertical |
| Rotation | Clockwise |
