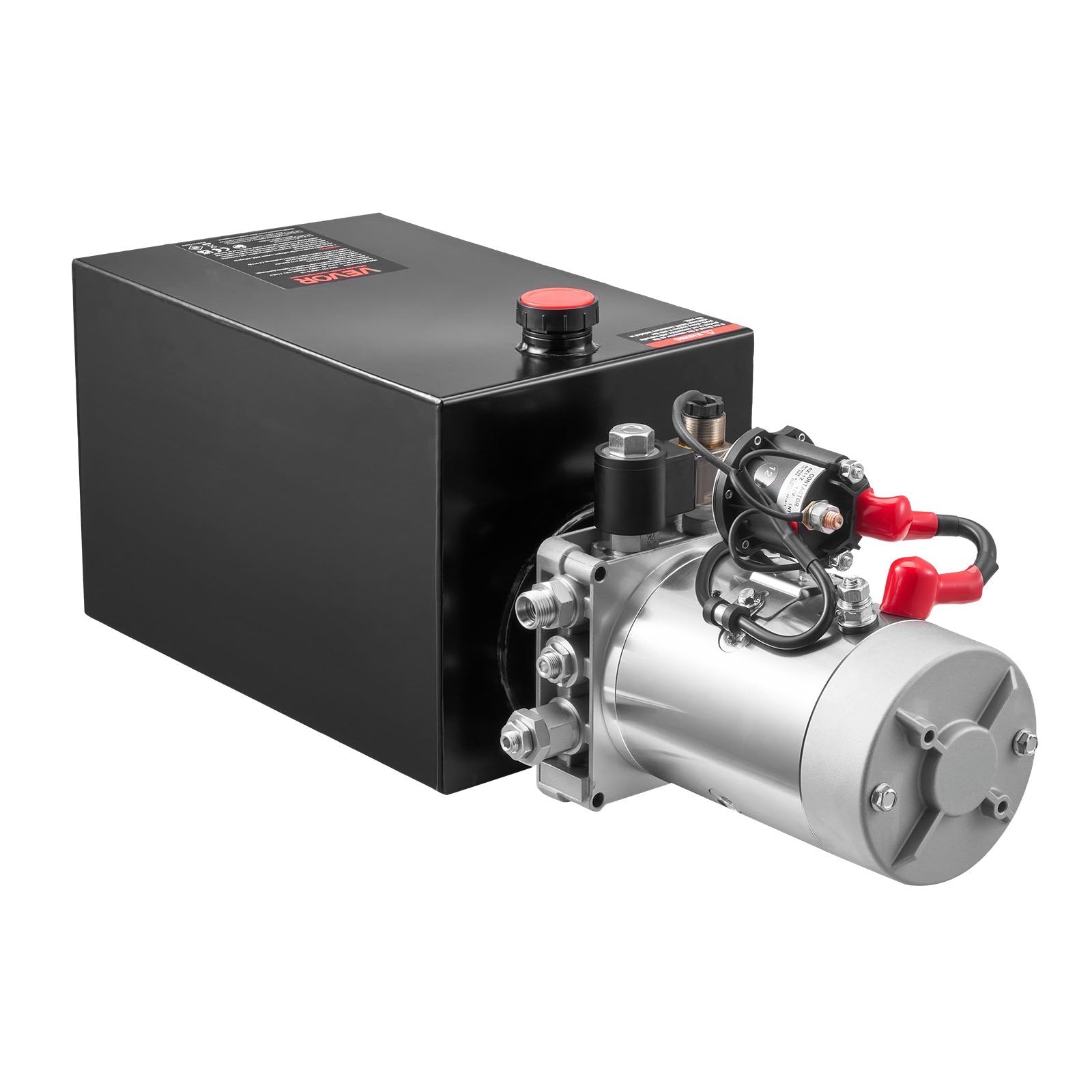

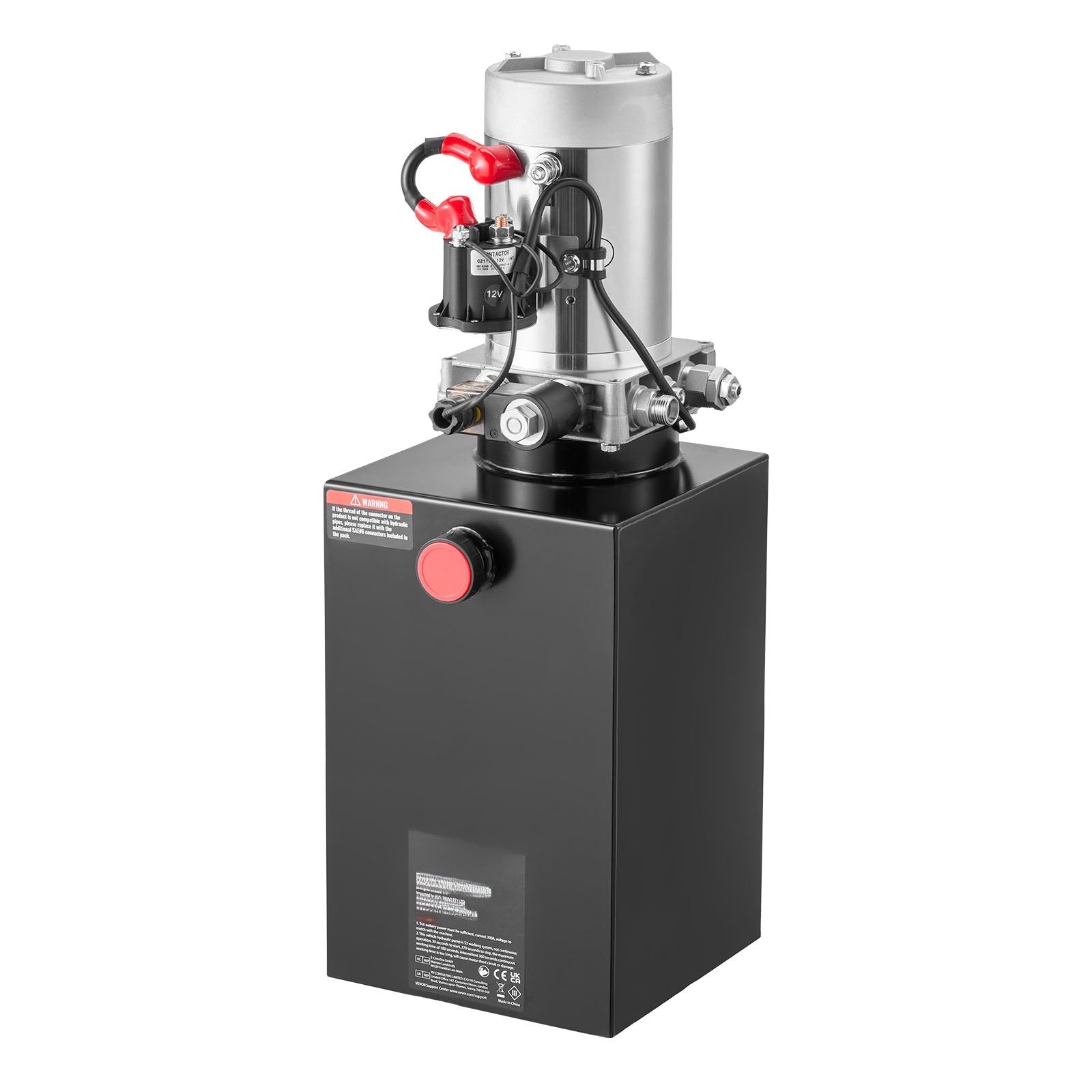

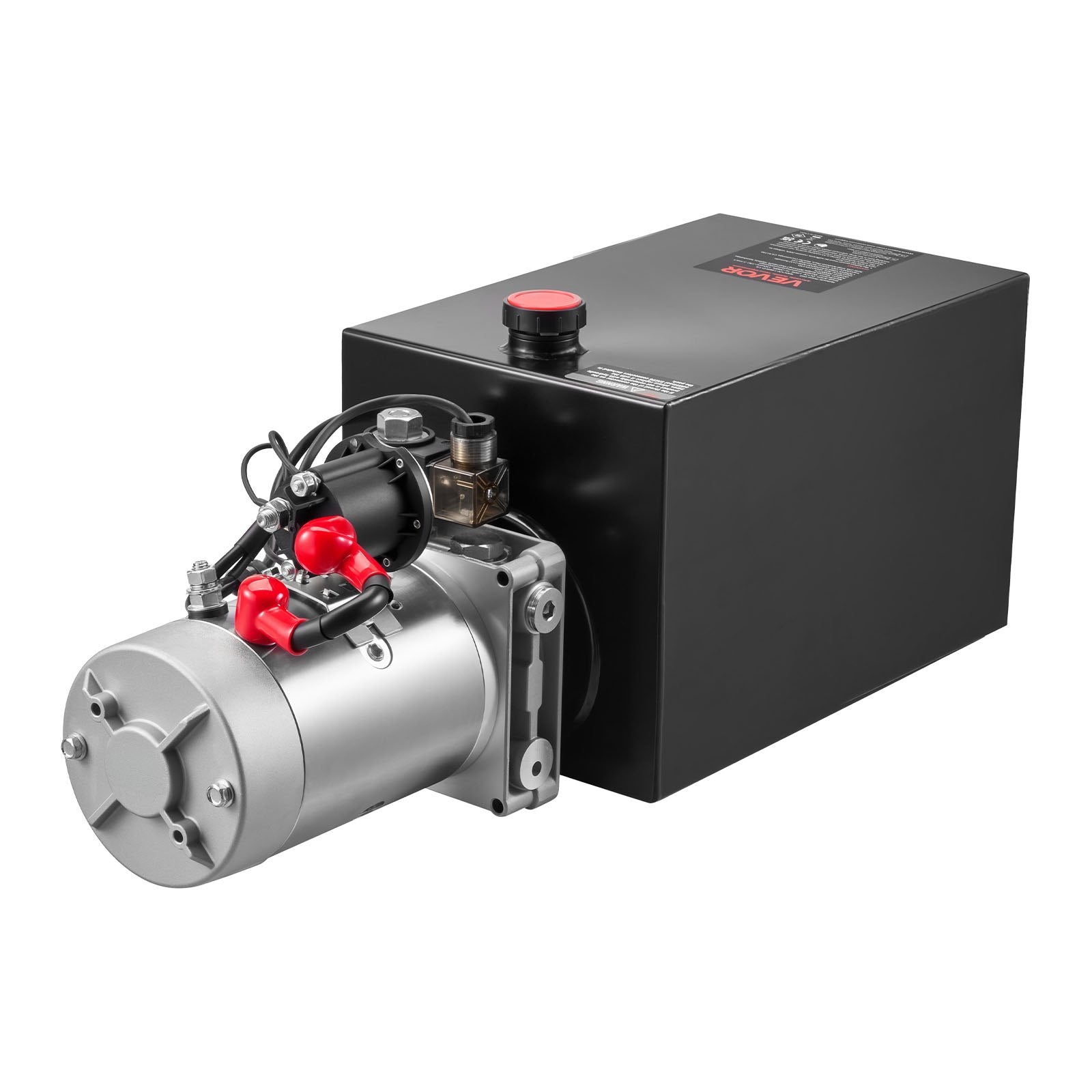

12V Hydraulic Power Unit, 15-Qt Single-Acting Dump Pump
12V Hydraulic Power Unit, 15-Qt Single-Acting Dump Pump

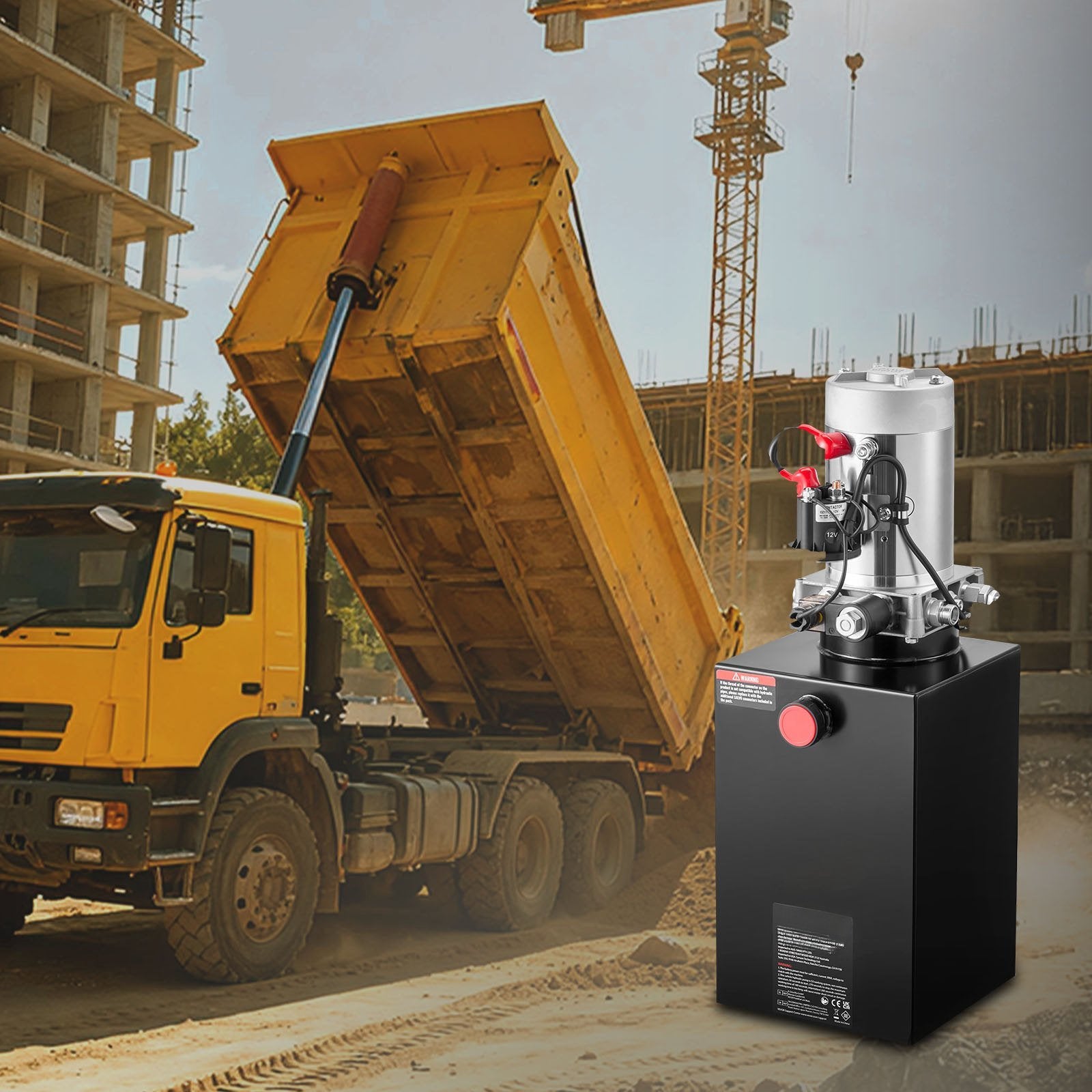

12V hydraulic power unit delivers fast, smooth single-acting lift power for dump trailers and compact hydraulic systems, with a 15-quart... Read more
2.390,00 lei 2.172,00 lei
Pay securely with
- Free shipping
- 30-day returns
- Secure checkout
Specifications
| Function | Single acting (power up, gravity down) |
|---|---|
| Voltage | DC 12V |
| Power | 1.6 kW |
| Flow rate | 0.91 GPM (3.4 L/min) |
| Max relief pressure | 22 MPa (3,200 psi) |
| Working pressure | 16–20 MPa |
| Speed | 2600 r/min |
| Reservoir capacity | 15 qt (3.75 gal) |

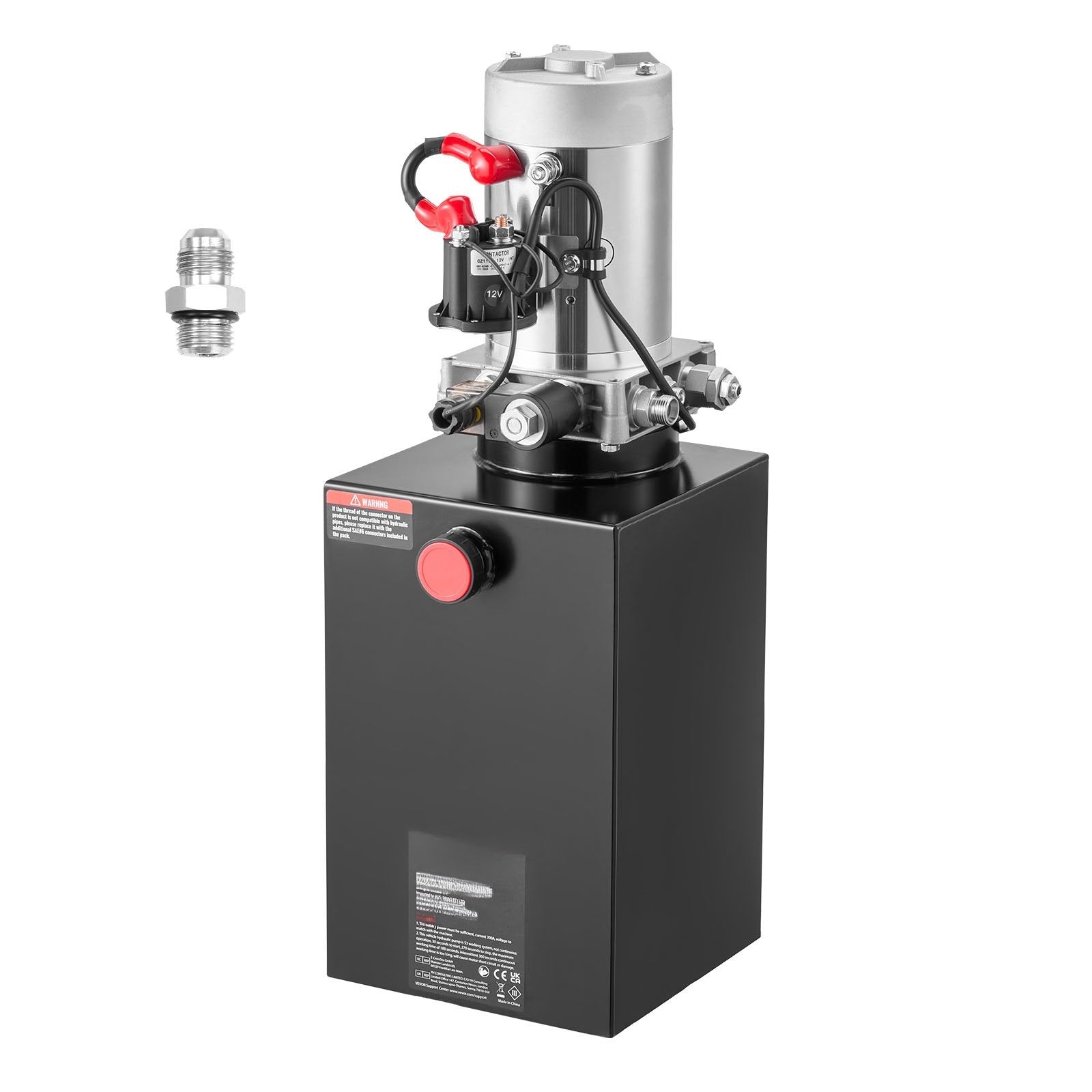

| Fittings | SAE #6 |
| Dimensions | 23.2 x 8.3 x 9.3 in (590 x 210 x 235 mm) |
| Net weight | 32.6 lb (14.8 kg) |
