1 Ton Arbor Press, Cast Iron, Handwheel, 5.9 in Stroke

1 Ton Arbor Press, Cast Iron, Handwheel, 5.9 in Stroke

Product form
Item number: 11369119711559

Manual arbor press delivers controlled 1-ton pressing force for accurate stamping, bending, riveting, and forming at the bench. The cast... Read more

Currently unavailable

1.060,00 lei  962,00 lei

    Pay securely with

    • Apple Pay
    • Google Pay
    • Visa
    • Mastercard
    • American Express
    • Klarna
    • Free shipping
    • 30-day returns
    • Secure checkout

    Specifications

    Max pressure capacity1 ton
    Max working stroke5.9 in / 150 mm
    Ram length8.9 in / 225 mm
    Throat depth3.2 in / 81 mm
    Anvil plate3.5 in / 90 mm diameter, 4-hole steel
    Ram bore0.4 in / 10 mm
    Materialcast iron (anti-rust coated)
    Product size9.5 x 8.3 x 11.4 in / 240 x 210 x 290 mm
    Net weight26.01 lb / 11.8 kg

    Description

    Manual arbor press delivers controlled 1-ton pressing force for accurate stamping, bending, riveting, and forming at the bench. The cast iron frame and thickened base stay stable under load, while the handwheel lets you dial ram height fast for repeatable results. Built for leatherwork, jewelry making, light metalwork, crafts, and small shop tasks where you need precise pressure without powered equipment.

    Designed for makers and small workshops, this desktop press combines a compact footprint with generous working space, smooth rack-and-pinion action, and an anti-rust coated finish for long-term shop use. The polished anvil plate edges help minimize snagging during setup, and the 0.4" ram bore supports quick mold changes for varied jobs—cutting, carving, bending, and more. If you need consistent hand-powered pressure without the noise or wiring of a powered press, grab yours today.

    Specifications
    • Delivers 1-ton manual pressing capacity for controlled forming, stamping, and extrusion work

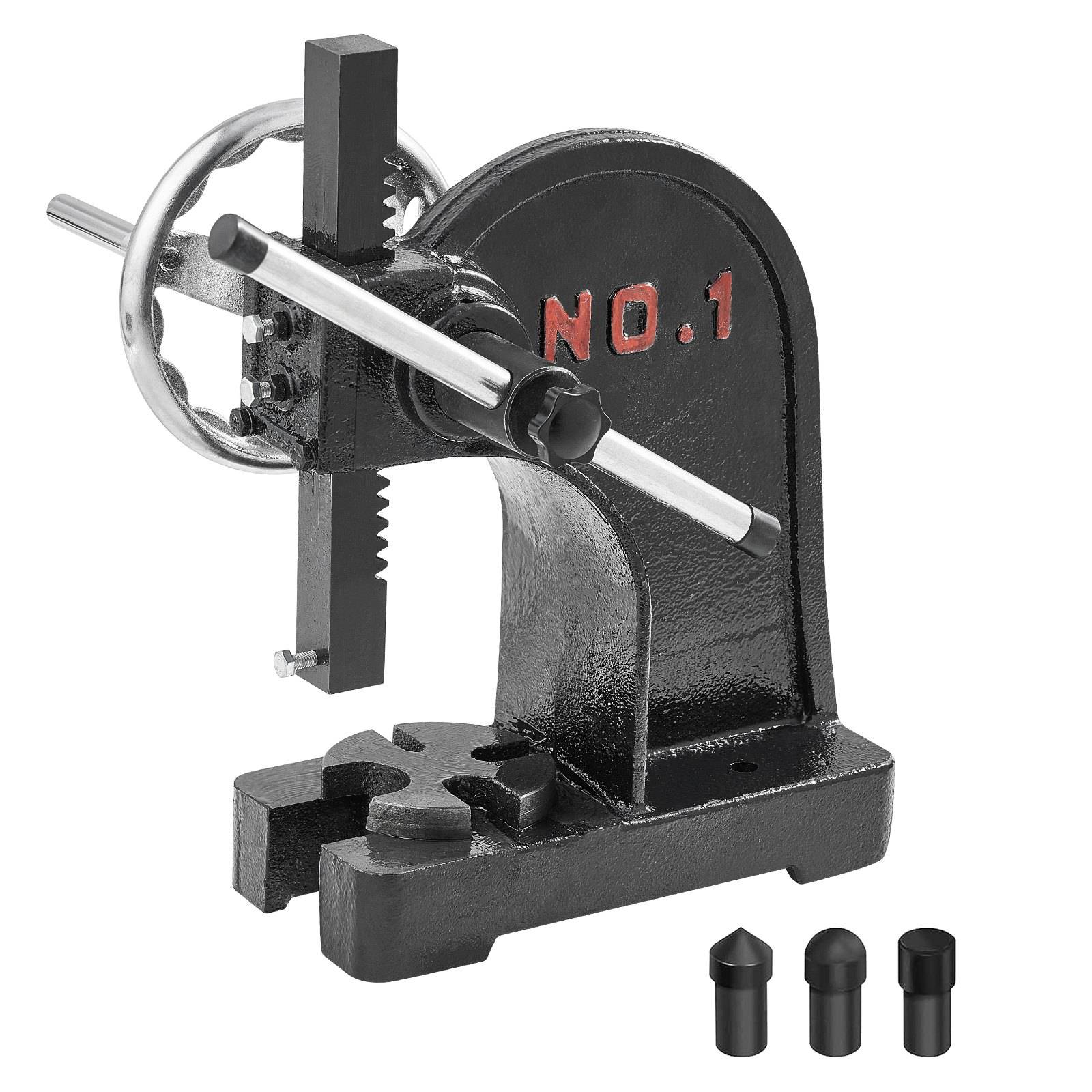

    • Includes 3 drifts (flat, pointed, round) to support basic shaping, riveting, and detailing tasks
    • Adjusts ram height via handwheel and long lever to reduce effort and improve repeatability
    • Locks lever position and adds non-slip rubber sleeves for steadier grip and safer operation
    • Secures work with a 4-hole steel anvil plate to hold different shapes and sizes
